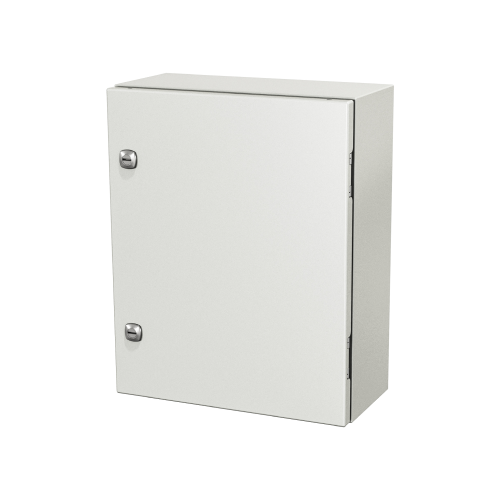

The 6412 ES series is used indoors or outdoors where the enclosures may be subject to hosing or water coming from any direction and for protection against dust, dirt or oil splashing.
| Catalog Number | Dimensions | Ship Weight | Downloads | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 6412 ES030315 | 12 | 12 | 6 | 17 lbs | 2D PDF | Zip Archive |
| 6412 ES030415 | 12 | 16 | 6 | 21 lbs | 2D PDF | Zip Archive |
| 6412 ES030515 | 12 | 20 | 6 | 25 lbs | 2D PDF | Zip Archive |
| 6412 ES020315 | 8 | 12 | 6 | 13 lbs | 2D PDF | Zip Archive |
| 6412 ES030520 | 12 | 20 | 8 | 29 lbs | 2D PDF | Zip Archive |
| 6412 ES040315 | 16 | 12 | 6 | 21 lbs | 2D PDF | Zip Archive |
| 6412 ES040320 | 16 | 12 | 8 | 24 lbs | 2D PDF | Zip Archive |
| 6412 ES040420 | 16 | 16 | 8 | 30 lbs | 2D PDF | Zip Archive |
| 6412 ES040520 | 16 | 20 | 8 | 34 lbs | 2D PDF | Zip Archive |
| 6412 ES040525 | 16 | 20 | 10 | 40 lbs | 2D PDF | Zip Archive |
| 6412 ES040620 | 16 | 24 | 8 | 40 lbs | 2D PDF | Zip Archive |
| 6412 ES040625 | 16 | 24 | 10 | 45 lbs | 2D PDF | Zip Archive |
| 6412 ES040640 | 16 | 24 | 16 | 79 lbs | 2D PDF | Zip Archive |
| 6412 ES050520 | 20 | 20 | 8 | 41 lbs | 2D PDF | Zip Archive |
| 6412 ES050720 | 20 | 28 | 8 | 54 lbs | 2D PDF | Zip Archive |
| 6412 ES050725 | 20 | 28 | 10 | 59 lbs | 2D PDF | Zip Archive |
| 6412 ES060420 | 24 | 16 | 8 | 40 lbs | 2D PDF | Zip Archive |
| 6412 ES060430 | 24 | 16 | 12 | 51 lbs | 2D PDF | Zip Archive |
| 6412 ES060620 | 24 | 24 | 8 | 54 lbs | 2D PDF | Zip Archive |
| 6412 ES060630 | 24 | 24 | 12 | 66 lbs | 2D PDF | Zip Archive |
| 6412 ES060640 | 24 | 24 | 16 | 79 lbs | 2D PDF | Zip Archive |
| 6412 ES060825 | 24 | 31 | 10 | 75 lbs | 2D PDF | Zip Archive |
| 6412 ES060830 | 24 | 31 | 12 | 81 lbs | 2D PDF | Zip Archive |
| 6412 ES060840 | 24 | 31 | 16 | 101 lbs | 2D PDF | Zip Archive |
| 6412 ES061025 | 24 | 40 | 10 | 96 lbs | 2D PDF | Zip Archive |
| 6412 ES061030 | 24 | 40 | 12 | 103 lbs | 2D PDF | Zip Archive |
| 6412 ES061040 | 24 | 40 | 16 | 123 lbs | 2D PDF | Zip Archive |
| 6412 ES061230 | 24 | 47 | 12 | 119 lbs | 2D PDF | Zip Archive |
| 6412 ES080830 | 31 | 31 | 12 | 106 lbs | 2D PDF | Zip Archive |
| 6412 ES081030 | 31 | 40 | 12 | 128 lbs | 2D PDF | Zip Archive |
| 6412 ES081230 | 31 | 47 | 12 | 147 lbs | 2D PDF | Zip Archive |
| 6412 ES020315TH | 8 | 12 | 6 | 13 lbs | 2D PDF | Zip Archive |
| 6412 ES030315TH | 12 | 12 | 6 | 17 lbs | 2D PDF | Zip Archive |
| 6412 ES030415TH | 12 | 16 | 6 | 21 lbs | 2D PDF | Zip Archive |
| 6412 ES030515TH | 12 | 20 | 6 | 25 lbs | 2D PDF | Zip Archive |
| 6412 ES030520TH | 12 | 20 | 8 | 29 lbs | 2D PDF | Zip Archive |
| 6412 ES040315TH | 16 | 12 | 6 | 21 lbs | 2D PDF | Zip Archive |
| 6412 ES040320TH | 16 | 12 | 8 | 24 lbs | 2D PDF | Zip Archive |
| 6412 ES040420TH | 16 | 16 | 8 | 30 lbs | 2D PDF | Zip Archive |
| 6412 ES040520TH | 16 | 20 | 8 | 34 lbs | 2D PDF | Zip Archive |
| 6412 ES040525TH | 16 | 20 | 10 | 40 lbs | 2D PDF | Zip Archive |
| 6412 ES040620TH | 16 | 24 | 8 | 40 lbs | 2D PDF | Zip Archive |
| 6412 ES040625TH | 16 | 24 | 10 | 45 lbs | 2D PDF | Zip Archive |
| 6412 ES040640TH | 16 | 24 | 16 | 79 lbs | 2D PDF | Zip Archive |
| 6412 ES050520TH | 20 | 20 | 8 | 41 lbs | 2D PDF | Zip Archive |
| 6412 ES050720TH | 20 | 28 | 8 | 54 lbs | 2D PDF | Zip Archive |
| 6412 ES050725TH | 20 | 28 | 10 | 59 lbs | 2D PDF | Zip Archive |
| 6412 ES060420TH | 24 | 16 | 8 | 40 lbs | 2D PDF | Zip Archive |
| 6412 ES060430TH | 24 | 16 | 12 | 51 lbs | 2D PDF | Zip Archive |
| 6412 ES060620TH | 24 | 24 | 8 | 54 lbs | 2D PDF | Zip Archive |
| 6412 ES060630TH | 24 | 24 | 12 | 66 lbs | 2D PDF | Zip Archive |
| 6412 ES060640TH | 24 | 24 | 16 | 79 lbs | 2D PDF | Zip Archive |
| 6412 ES060825TH | 24 | 31 | 10 | 75 lbs | 2D PDF | Zip Archive |
| 6412 ES060830TH | 24 | 31 | 12 | 81 lbs | 2D PDF | Zip Archive |
| 6412 ES060840TH | 24 | 31 | 16 | 101 lbs | 2D PDF | Zip Archive |
| 6412 ES061025TH | 24 | 40 | 10 | 96 lbs | 2D PDF | Zip Archive |
| 6412 ES061030TH | 24 | 40 | 12 | 103 lbs | 2D PDF | Zip Archive |
| 6412 ES061230TH | 24 | 47 | 12 | 123 lbs | 2D PDF | Zip Archive |
| 6412 ES061040TH | 24 | 40 | 16 | 123 lbs | 2D PDF | Zip Archive |
| 6412 ES080830TH | 31 | 31 | 12 | 106 lbs | 2D PDF | Zip Archive |
| 6412 ES081030TH | 31 | 40 | 12 | 128 lbs | 2D PDF | Zip Archive |
| 6412 ES081230TH | 31 | 47 | 12 | 147 lbs | 2D PDF | Zip Archive |
| 6412 ESW020315 | 8 | 12 | 6 | 13 lbs | 2D PDF | Zip Archive |
| 6412 ESW030315 | 12 | 12 | 6 | 17 lbs | 2D PDF | Zip Archive |
| 6412 ESW030415 | 12 | 16 | 6 | 21 lbs | 2D PDF | Zip Archive |
| 6412 ESW030515 | 12 | 20 | 6 | 25 lbs | 2D PDF | Zip Archive |
| 6412 ESW030520 | 12 | 20 | 8 | 29 lbs | 2D PDF | Zip Archive |
| 6412 ESW040315 | 16 | 12 | 6 | 21 lbs | 2D PDF | Zip Archive |
| 6412 ESW040320 | 16 | 12 | 8 | 24 lbs | 2D PDF | Zip Archive |
| 6412 ESW040420 | 16 | 16 | 8 | 30 lbs | 2D PDF | Zip Archive |
| 6412 ESW040520 | 16 | 20 | 8 | 34 lbs | 2D PDF | Zip Archive |
| 6412 ESW040525 | 16 | 20 | 10 | 40 lbs | 2D PDF | Zip Archive |
| 6412 ESW040620 | 16 | 24 | 8 | 40 lbs | 2D PDF | Zip Archive |
| 6412 ESW040625 | 16 | 24 | 10 | 45 lbs | 2D PDF | Zip Archive |
| 6412 ESW040640 | 16 | 24 | 16 | 79 lbs | 2D PDF | Zip Archive |
| 6412 ESW050520 | 20 | 20 | 8 | 41 lbs | 2D PDF | Zip Archive |
| 6412 ESW050720 | 20 | 28 | 8 | 54 lbs | 2D PDF | Zip Archive |
| 6412 ESW050725 | 20 | 28 | 10 | 59 lbs | 2D PDF | Zip Archive |
| 6412 ESW060420 | 24 | 16 | 8 | 40 lbs | 2D PDF | Zip Archive |
| 6412 ESW060430 | 24 | 16 | 12 | 51 lbs | 2D PDF | Zip Archive |
| 6412 ESW060620 | 24 | 24 | 8 | 54 lbs | 2D PDF | Zip Archive |
| 6412 ESW060630 | 24 | 24 | 12 | 66 lbs | 2D PDF | Zip Archive |
| 6412 ESW060640 | 24 | 24 | 16 | 79 lbs | 2D PDF | Zip Archive |
| 6412 ESW060825 | 24 | 31 | 10 | 75 lbs | 2D PDF | Zip Archive |
| 6412 ESW060830 | 24 | 31 | 12 | 81 lbs | 2D PDF | Zip Archive |
| 6412 ESW060840 | 24 | 31 | 16 | 101 lbs | 2D PDF | Zip Archive |
| 6412 ESW061025 | 24 | 40 | 10 | 96 lbs | 2D PDF | Zip Archive |
| 6412 ESW061030 | 24 | 40 | 12 | 103 lbs | 2D PDF | Zip Archive |
| 6412 ESW061040 | 24 | 40 | 16 | 123 lbs | 2D PDF | Zip Archive |
| 6412 ESW061230 | 24 | 47 | 12 | 119 lbs | 2D PDF | Zip Archive |
| 6412 ESW080830 | 31 | 31 | 12 | 106 lbs | 2D PDF | Zip Archive |
| 6412 ESW081030 | 31 | 40 | 12 | 128 lbs | 2D PDF | Zip Archive |
| 6412 ESW081230 | 31 | 47 | 12 | 147 lbs | 2D PDF | Zip Archive |
| 6412 ESW020315TH | 8 | 12 | 6 | 13 lbs | 2D PDF | Zip Archive |
| 6412 ESW030315TH | 12 | 12 | 6 | 17 lbs | 2D PDF | Zip Archive |
| 6412 ESW030415TH | 12 | 16 | 6 | 21 lbs | 2D PDF | Zip Archive |
| 6412 ESW030515TH | 12 | 20 | 6 | 25 lbs | 2D PDF | Zip Archive |
| 6412 ESW030520TH | 12 | 20 | 8 | 29 lbs | 2D PDF | Zip Archive |
| 6412 ESW040315TH | 16 | 12 | 6 | 21 lbs | 2D PDF | Zip Archive |
| 6412 ESW040320TH | 16 | 12 | 8 | 24 lbs | 2D PDF | Zip Archive |
| 6412 ESW040420TH | 16 | 16 | 8 | 30 lbs | 2D PDF | Zip Archive |
| 6412 ESW040520TH | 16 | 20 | 8 | 34 lbs | 2D PDF | Zip Archive |
| 6412 ESW040525TH | 16 | 20 | 10 | 40 lbs | 2D PDF | Zip Archive |
| 6412 ESW040620TH | 16 | 24 | 8 | 40 lbs | 2D PDF | Zip Archive |
| 6412 ESW040625TH | 16 | 24 | 10 | 45 lbs | 2D PDF | Zip Archive |
| 6412 ESW040640TH | 16 | 24 | 16 | 79 lbs | 2D PDF | Zip Archive |
| 6412 ESW050520TH | 20 | 20 | 8 | 41 lbs | 2D PDF | Zip Archive |
| 6412 ESW050720TH | 20 | 28 | 8 | 54 lbs | 2D PDF | Zip Archive |
| 6412 ESW050725TH | 20 | 28 | 10 | 59 lbs | 2D PDF | Zip Archive |
| 6412 ESW060420TH | 24 | 16 | 8 | 40 lbs | 2D PDF | Zip Archive |
| 6412 ESW060430TH | 24 | 16 | 12 | 51 lbs | 2D PDF | Zip Archive |
| 6412 ESW060620TH | 24 | 24 | 8 | 54 lbs | 2D PDF | Zip Archive |
| 6412 ESW060630TH | 24 | 24 | 12 | 66 lbs | 2D PDF | Zip Archive |
| 6412 ESW060640TH | 24 | 24 | 16 | 79 lbs | 2D PDF | Zip Archive |
| 6412 ESW060825TH | 24 | 31 | 10 | 75 lbs | 2D PDF | Zip Archive |
| 6412 ESW060830TH | 24 | 31 | 12 | 81 lbs | 2D PDF | Zip Archive |
| 6412 ESW060840TH | 24 | 31 | 16 | 101 lbs | 2D PDF | Zip Archive |
| 6412 ESW061025TH | 24 | 40 | 10 | 96 lbs | 2D PDF | Zip Archive |
| 6412 ESW061030TH | 24 | 40 | 12 | 103 lbs | 2D PDF | Zip Archive |
| 6412 ESW061040TH | 24 | 40 | 16 | 123 lbs | 2D PDF | Zip Archive |
| 6412 ESW061230TH | 24 | 47 | 12 | 119 lbs | 2D PDF | Zip Archive |
| 6412 ESW080830TH | 31 | 31 | 12 | 106 lbs | 2D PDF | Zip Archive |
| 6412 ESW081030TH | 31 | 40 | 12 | 128 lbs | 2D PDF | Zip Archive |
| 6412 ESW081230TH | 31 | 47 | 12 | 147 lbs | 2D PDF | Zip Archive |
