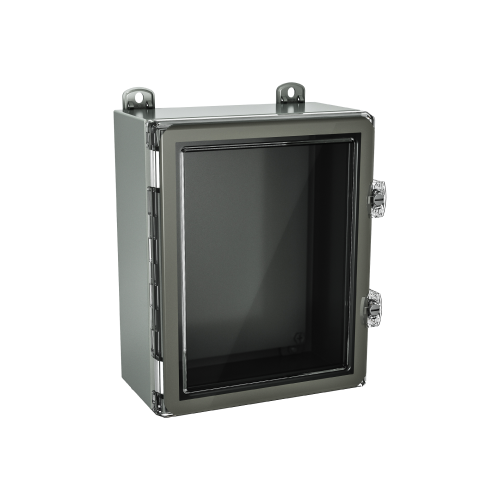

Type 4, 12 | Single door JIC enclosure with external locks and clear cover

Wall Mount

Type 4, 12 | Single door JIC enclosure with external locks and clear cover

5412 ESCHV

IP 66, 54NEMA 4, 12Mild Steel painted ASA 61 GrayInner PanelSingle DoorWindow Cover

Dimension (inch height x width x depth)

Save

Remove From Saved List

Customize it here

The 5412 ESCHV series is used indoors or outdoors where the enclosures may be subject to hosing or water coming from any direction and for protection against dust, dirt or oil splashing.

Made of high quality steel, with continuously welded corner seams.
The cover is secured by ¼ turn locks.
A robotically poured-in-place seamless gasket ensures a durable seal.
The enclosure has die cast hinges, with stainless steel pins.
Wall mounting feet kit are provided.
The cover is made of UV resistant polycarbonate.
The body’s construction is designed to prevent dripping water from entering the enclosure.
Paint color: ANSI 61 smooth gray.
CSA certified.
UL listed.
NEMA 4,12.
IEC 60529 IP66.

Catalog Number	Dimensions			Ship Weight	Downloads
	A	B	C
5412 ESCHV060604	6	6	4	8 lbs	2D PDF \| Zip Archive
5412 ESCHV060606	6	6	6	8 lbs	2D PDF \| Zip Archive
5412 ESCHV100804	10	8	4	8 lbs	2D PDF \| Zip Archive
5412 ESCHV100806	10	8	6	10 lbs	2D PDF \| Zip Archive
5412 ESCHV121205	12	12	5	18 lbs	2D PDF \| Zip Archive
5412 ESCHV121206	12	12	6	18 lbs	2D PDF \| Zip Archive
5412 ESCHV161206	16	12	6	19 lbs	2D PDF \| Zip Archive
5412 ESCHV161208	16	12	8	20 lbs	2D PDF \| Zip Archive
5412 ESCHV161406	16	14	6	8 lbs	2D PDF \| Zip Archive
5412 ESCHV161410	16	14	10	8 lbs	2D PDF \| Zip Archive
