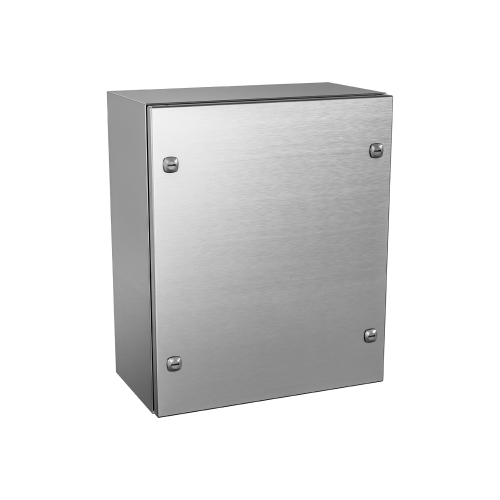

The 5412 EALQT series is used indoors or outdoors where the enclosures may be subject to hosing or water coming from any direction and for protection against dust, dirt or oil splashing.
| Catalog Number | Dimensions | Ship Weight | Downloads | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 5412 EALQT121206 | 12 | 12 | 6 | 10 lbs | 2D PDF | Zip Archive |
| 5412 EALQT122406 | 12 | 24 | 6 | 18 lbs | 2D PDF | Zip Archive |
| 5412 EALQT122408 | 12 | 24 | 8 | 19 lbs | 2D PDF | Zip Archive |
| 5412 EALQT161206 | 16 | 12 | 6 | 12 lbs | 2D PDF | Zip Archive |
| 5412 EALQT161208 | 16 | 12 | 8 | 14 lbs | 2D PDF | Zip Archive |
| 5412 EALQT161210 | 16 | 12 | 10 | 15 lbs | 2D PDF | Zip Archive |
| 5412 EALQT161606 | 16 | 16 | 6 | 16 lbs | 2D PDF | Zip Archive |
| 5412 EALQT161608 | 16 | 16 | 8 | 17 lbs | 2D PDF | Zip Archive |
| 5412 EALQT162006 | 16 | 20 | 6 | 19 lbs | 2D PDF | Zip Archive |
| 5412 EALQT162008 | 16 | 20 | 8 | 21 lbs | 2D PDF | Zip Archive |
| 5412 EALQT201206 | 20 | 12 | 6 | 15 lbs | 2D PDF | Zip Archive |
| 5412 EALQT201208 | 20 | 12 | 8 | 17 lbs | 2D PDF | Zip Archive |
| 5412 EALQT201606 | 20 | 16 | 6 | 19 lbs | 2D PDF | Zip Archive |
| 5412 EALQT201608 | 20 | 16 | 8 | 21 lbs | 2D PDF | Zip Archive |
| 5412 EALQT201610 | 20 | 16 | 10 | 22 lbs | 2D PDF | Zip Archive |
| 5412 EALQT201612 | 20 | 16 | 12 | 24 lbs | 2D PDF | Zip Archive |
| 5412 EALQT202006 | 20 | 20 | 6 | 23 lbs | 2D PDF | Zip Archive |
| 5412 EALQT202008 | 20 | 20 | 8 | 25 lbs | 2D PDF | Zip Archive |
| 5412 EALQT202010 | 20 | 20 | 10 | 27 lbs | 2D PDF | Zip Archive |
| 5412 EALQT202012 | 20 | 20 | 12 | 29 lbs | 2D PDF | Zip Archive |
| 5412 EALQT202406 | 20 | 24 | 6 | 27 lbs | 2D PDF | Zip Archive |
| 5412 EALQT202408 | 20 | 24 | 8 | 29 lbs | 2D PDF | Zip Archive |
| 5412 EALQT202412 | 20 | 24 | 12 | 33 lbs | 2D PDF | Zip Archive |
| 5412 EALQT241206 | 24 | 12 | 6 | 18 lbs | 2D PDF | Zip Archive |
| 5412 EALQT241208 | 24 | 12 | 8 | 19 lbs | 2D PDF | Zip Archive |
| 5412 EALQT241210 | 24 | 12 | 10 | 21 lbs | 2D PDF | Zip Archive |
| 5412 EALQT241606 | 24 | 16 | 6 | 22 lbs | 2D PDF | Zip Archive |
| 5412 EALQT241608 | 24 | 16 | 8 | 24 lbs | 2D PDF | Zip Archive |
| 5412 EALQT242006 | 24 | 20 | 6 | 27 lbs | 2D PDF | Zip Archive |
| 5412 EALQT242008 | 24 | 20 | 8 | 29 lbs | 2D PDF | Zip Archive |
| 5412 EALQT242010 | 24 | 20 | 10 | 31 lbs | 2D PDF | Zip Archive |
| 5412 EALQT242012 | 24 | 20 | 12 | 33 lbs | 2D PDF | Zip Archive |
| 5412 EALQT242016 | 24 | 20 | 16 | 37 lbs | 2D PDF | Zip Archive |
| 5412 EALQT242406 | 24 | 24 | 6 | 31 lbs | 2D PDF | Zip Archive |
| 5412 EALQT242408 | 24 | 24 | 8 | 34 lbs | 2D PDF | Zip Archive |
| 5412 EALQT242410 | 24 | 24 | 10 | 36 lbs | 2D PDF | Zip Archive |
| 5412 EALQT242412 | 24 | 24 | 12 | 38 lbs | 2D PDF | Zip Archive |
| 5412 EALQT242416 | 24 | 24 | 16 | 43 lbs | 2D PDF | Zip Archive |
| 5412 EALQT243008 | 24 | 30 | 8 | 41 lbs | 2D PDF | Zip Archive |
| 5412 EALQT301208 | 30 | 12 | 8 | 23 lbs | 2D PDF | Zip Archive |
| 5412 EALQT301606 | 30 | 16 | 6 | 27 lbs | 2D PDF | Zip Archive |
| 5412 EALQT301608 | 30 | 16 | 8 | 29 lbs | 2D PDF | Zip Archive |
| 5412 EALQT302006 | 30 | 20 | 6 | 33 lbs | 2D PDF | Zip Archive |
| 5412 EALQT302008 | 30 | 20 | 8 | 35 lbs | 2D PDF | Zip Archive |
| 5412 EALQT302010 | 30 | 20 | 10 | 37 lbs | 2D PDF | Zip Archive |
| 5412 EALQT302406 | 30 | 24 | 6 | 38 lbs | 2D PDF | Zip Archive |
| 5412 EALQT302408 | 30 | 24 | 8 | 41 lbs | 2D PDF | Zip Archive |
| 5412 EALQT302410 | 30 | 24 | 10 | 43 lbs | 2D PDF | Zip Archive |
| 5412 EALQT302412 | 30 | 24 | 12 | 46 lbs | 2D PDF | Zip Archive |
| 5412 EALQT302416 | 30 | 24 | 16 | 51 lbs | 2D PDF | Zip Archive |
| 5412 EALQT302420 | 30 | 24 | 20 | 57 lbs | 2D PDF | Zip Archive |
| 5412 EALQT302424 | 30 | 24 | 24 | 62 lbs | 2D PDF | Zip Archive |
| 5412 EALQT303008 | 30 | 30 | 8 | 49 lbs | 2D PDF | Zip Archive |
| 5412 EALQT303012 | 30 | 30 | 12 | 55 lbs | 2D PDF | Zip Archive |
| 5412 EALQT303608 | 30 | 36 | 8 | 58 lbs | 2D PDF | Zip Archive |
| 5412 EALQT362406 | 36 | 24 | 6 | 45 lbs | 2D PDF | Zip Archive |
| 5412 EALQT362408 | 36 | 24 | 8 | 48 lbs | 2D PDF | Zip Archive |
| 5412 EALQT362410 | 36 | 24 | 10 | 51 lbs | 2D PDF | Zip Archive |
| 5412 EALQT362412 | 36 | 24 | 12 | 54 lbs | 2D PDF | Zip Archive |
| 5412 EALQT362416 | 36 | 24 | 16 | 60 lbs | 2D PDF | Zip Archive |
| 5412 EALQT363006 | 36 | 30 | 6 | 55 lbs | 2D PDF | Zip Archive |
| 5412 EALQT363008 | 36 | 30 | 8 | 58 lbs | 2D PDF | Zip Archive |
| 5412 EALQT363010 | 36 | 30 | 10 | 61 lbs | 2D PDF | Zip Archive |
| 5412 EALQT363012 | 36 | 30 | 12 | 65 lbs | 2D PDF | Zip Archive |
| 5412 EALQT363016 | 36 | 30 | 16 | 71 lbs | 2D PDF | Zip Archive |
| 5412 EALQT363020 | 36 | 30 | 20 | 78 lbs | 2D PDF | Zip Archive |
| 5412 EALQT363608 | 36 | 36 | 8 | 68 lbs | 2D PDF | Zip Archive |
| 5412 EALQT363612 | 36 | 36 | 12 | 75 lbs | 2D PDF | Zip Archive |
| 5412 EALQT422408 | 42 | 24 | 8 | 55 lbs | 2D PDF | Zip Archive |
| 5412 EALQT422412 | 42 | 24 | 12 | 59 lbs | 2D PDF | Zip Archive |
| 5412 EALQT423008 | 42 | 30 | 8 | 67 lbs | 2D PDF | Zip Archive |
| 5412 EALQT423010 | 42 | 30 | 10 | 70 lbs | 2D PDF | Zip Archive |
| 5412 EALQT423012 | 42 | 30 | 12 | 74 lbs | 2D PDF | Zip Archive |
| 5412 EALQT423608 | 42 | 36 | 8 | 78 lbs | 2D PDF | Zip Archive |
| 5412 EALQT423610 | 42 | 36 | 10 | 82 lbs | 2D PDF | Zip Archive |
| 5412 EALQT423612 | 42 | 36 | 12 | 86 lbs | 2D PDF | Zip Archive |
| 5412 EALQT423616 | 42 | 36 | 16 | 94 lbs | 2D PDF | Zip Archive |
| 5412 EALQT482408 | 48 | 24 | 8 | 62 lbs | 2D PDF | Zip Archive |
| 5412 EALQT482412 | 48 | 24 | 12 | 69 lbs | 2D PDF | Zip Archive |
| 5412 EALQT483008 | 48 | 30 | 8 | 75 lbs | 2D PDF | Zip Archive |
| 5412 EALQT483010 | 48 | 30 | 10 | 79 lbs | 2D PDF | Zip Archive |
| 5412 EALQT483608 | 48 | 36 | 8 | 89 lbs | 2D PDF | Zip Archive |
| 5412 EALQT483610 | 48 | 36 | 10 | 93 lbs | 2D PDF | Zip Archive |
| 5412 EALQT483612 | 48 | 36 | 12 | 97 lbs | 2D PDF | Zip Archive |
| 5412 EALQT483616 | 48 | 36 | 16 | 105 lbs | 2D PDF | Zip Archive |
| 5412 EALQT483620 | 48 | 36 | 20 | 113 lbs | 2D PDF | Zip Archive |
| 5412 EALQT602412 | 60 | 24 | 12 | 85 lbs | 2D PDF | Zip Archive |
| 5412 EALQT603608 | 60 | 36 | 8 | 109 lbs | 2D PDF | Zip Archive |
| 5412 EALQT603610 | 60 | 36 | 10 | 114 lbs | 2D PDF | Zip Archive |
| 5412 EALQT603612 | 60 | 36 | 12 | 118 lbs | 2D PDF | Zip Archive |
| 5412 EALQT603616 | 60 | 36 | 16 | 128 lbs | 2D PDF | Zip Archive |
| 5412 EALQT603620 | 60 | 36 | 20 | 137 lbs | 2D PDF | Zip Archive |
| 5412 EALQT723012 | 72 | 30 | 12 | 120 lbs | 2D PDF | Zip Archive |
| 5412 EALQT723016 | 72 | 30 | 16 | 130 lbs | 2D PDF | Zip Archive |
| 5412 EALQT723020 | 72 | 30 | 20 | 140 lbs | 2D PDF | Zip Archive |
| 5412 EALQT723024 | 72 | 30 | 24 | 150 lbs | 2D PDF | Zip Archive |
| 5412 EALQT723612 | 72 | 36 | 12 | 140 lbs | 2D PDF | Zip Archive |
| 5412 EALQT723616 | 72 | 36 | 16 | 151 lbs | 2D PDF | Zip Archive |
