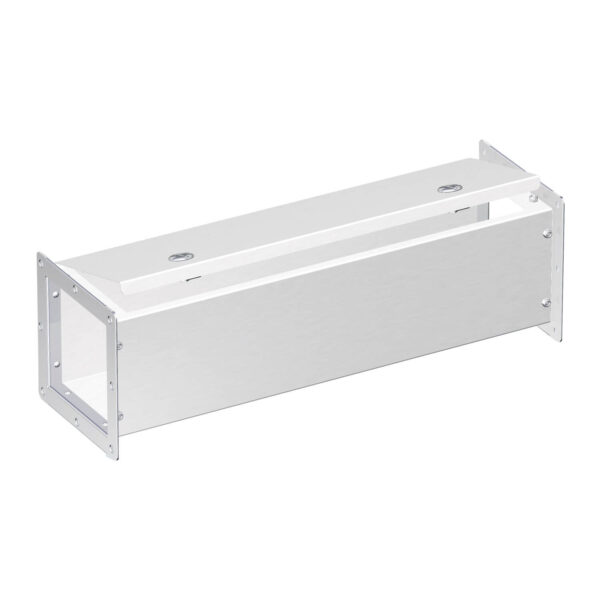

The 1412 X series is a complete water tight wireway system, which is used indoor or outdoors, in areas where corrosion may be a problem, or where the wireway may be subjected to hosing or water coming from any direction. The troughs are Bolt-on and are made of high quality code gauge (Type 304) stainless steel, with welded end flanges. All seams have been continuously welded. Covers are hinged and secure closing is assured by several, quick-release, ¼ turn locks. A high quality, poured-in-place, seamless gasket is installed between the door and trough, and between the sections and accessories to ensure integrity. The enclosures’ exterior is unpainted and brushed smooth.
Certifié CSA / Homologué UL NEMA/EEMAC 4X / IP66
| Référence | Dimensions | Poids du navire | Téléchargements | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 1412 XSS8120 | 8 | 8 | N/A | PDF 2D | Fichier 3D | |
| 1412 XSS8048 | 8 | 8 | N/A | PDF 2D | Fichier 3D | |
| 1412 XSS8060 | 8 | 8 | N/A | PDF 2D | Fichier 3D | |
| 1412 XSS8024 | 8 | 8 | N/A | PDF 2D | Fichier 3D | |
| 1412 XSS8036 | 8 | 8 | N/A | PDF 2D | Fichier 3D | |
| 1412 XSS8012 | 8 | 8 | N/A | PDF 2D | Fichier 3D | |
| 1412 XSS8006 | 8 | 8 | N/A | PDF 2D | Fichier 3D | |
| 1412 XSS6120 | 6 | 6 | N/A | PDF 2D | Fichier 3D | |
| 1412 XSS6048 | 6 | 6 | N/A | PDF 2D | Fichier 3D | |
| 1412 XSS6060 | 6 | 6 | N/A | PDF 2D | Fichier 3D | |
| 1412 XSS6036 | 6 | 6 | N/A | PDF 2D | Fichier 3D | |
| 1412 XSS6012 | 6 | 6 | N/A | PDF 2D | Fichier 3D | |
| 1412 XSS6006 | 6 | 6 | N/A | PDF 2D | Fichier 3D | |
| 1412 XSS4120 | 4 | 4 | N/A | PDF 2D | Fichier 3D | |
| 1412 XSS4060 | 4 | 4 | N/A | PDF 2D | Fichier 3D | |
| 1412 XSS4036 | 4 | 4 | N/A | PDF 2D | Fichier 3D | |
| 1412 XSS4048 | 4 | 4 | N/A | PDF 2D | Fichier 3D | |
| 1412 XSS4024 | 4 | 4 | N/A | PDF 2D | Fichier 3D | |
| 1412 XSS4012 | 4 | 4 | N/A | PDF 2D | Fichier 3D | |
| 1412 XSS4006 | 4 | 4 | N/A | PDF 2D | Fichier 3D | |
| 1412 XSS2060 | 2.5 | 2.5 | N/A | PDF 2D | Fichier 3D | |
| 1412 XSS2120 | 2.5 | 2.5 | N/A | PDF 2D | Fichier 3D | |
| 1412 XSS2048 | 2.5 | 2.5 | N/A | PDF 2D | Fichier 3D | |
| 1412 XSS2036 | 2.5 | 2.5 | N/A | PDF 2D | Fichier 3D | |
| 1412 XSS2024 | 2.5 | 2.5 | N/A | PDF 2D | Fichier 3D | |
| 1412 XSS2012 | 2.5 | 2.5 | N/A | PDF 2D | Fichier 3D | |
| 1412 XSS2006 | 2.5 | 2.5 | N/A | PDF 2D | Fichier 3D | |
