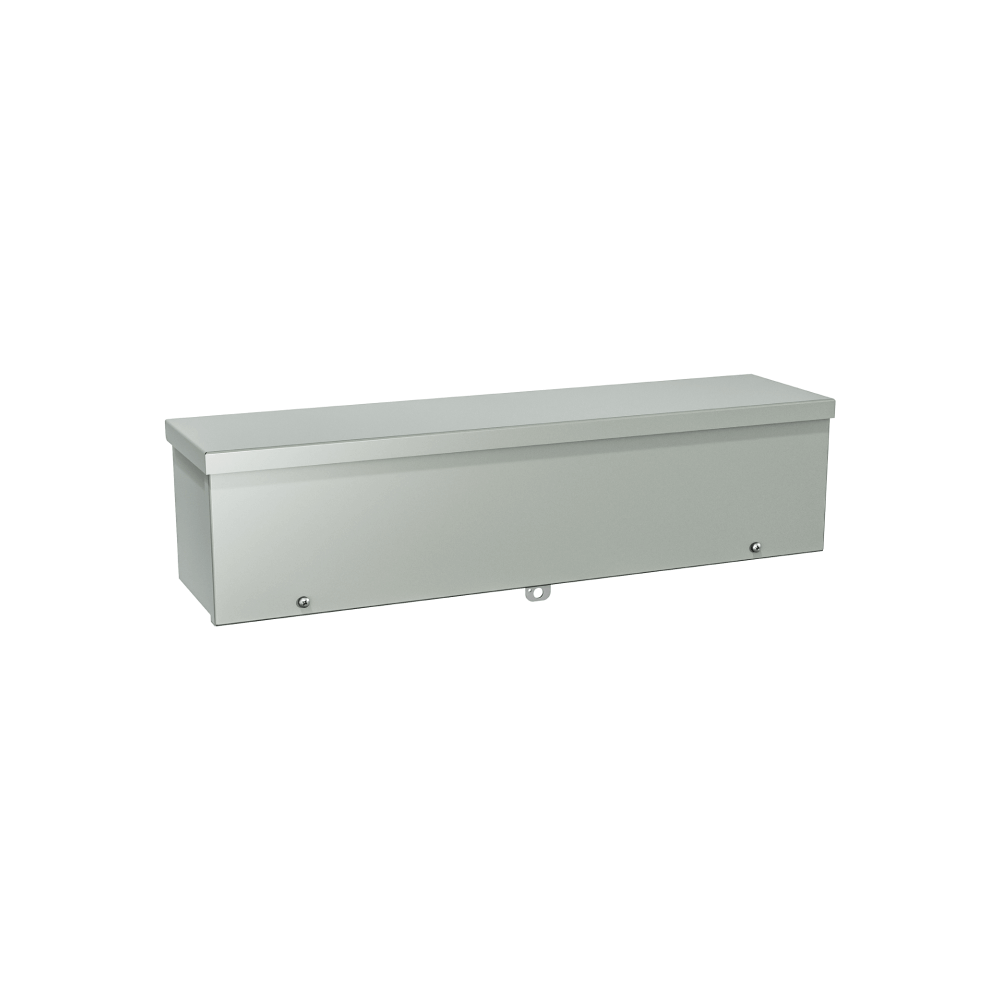

The 1300 CH are specially designed for outdoor wiring installations in order to protect against rain, sleet and snow. Boxes can also be used indoors to protect against dripping water. The box and cover are made of high quality 14 GA or 16 GA steel. Boxes have a padlock provision. Enclosures are finished with heat fused powder paint, electro-statically applied on a pretreated base. Box is ANSI/ASA 61 gray (other colors available).
CSA Certified / UL Listed NEMA/EEMAC 3R / IP32
| Référence | Dimensions | Poids du navire | Téléchargements | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 1300 CH121224 | 12 | 12 | 24 | 14,97 kg | PDF 2D | Fichier 3D |
| 1300 CH040424 | 4 | 4 | 24 | 10 livres | PDF 2D | Fichier 3D |
| 1300 CH040412 | 4 | 4 | 12 | 6 livres | PDF 2D | Fichier 3D |
| 1300 CH040436 | 4 | 4 | 36 | 16 livres | PDF 2D | Fichier 3D |
| 1300 CH040448 | 4 | 4 | 48 | 20 livres | PDF 2D | Fichier 3D |
| 1300 CH040460 | 4 | 4 | 60 | 25 livres | PDF 2D | Fichier 3D |
| 1300 CH060612 | 6 | 6 | 12 | 9 livres | PDF 2D | Fichier 3D |
| 1300 CH060624 | 6 | 6 | 24 | 16 livres | PDF 2D | Fichier 3D |
| 1300 CH060636 | 6 | 6 | 36 | 23 livres | PDF 2D | Fichier 3D |
| 1300 CH060648 | 6 | 6 | 48 | 13,15 kg | PDF 2D | Fichier 3D |
| 1300 CH060660 | 6 | 6 | 60 | 14,5 kg | PDF 2D | Fichier 3D |
| 1300 CH060672 | 6 | 6 | 72 | 43 lbs | PDF 2D | Fichier 3D |
| 1300 CH080824 | 8 | 8 | 24 | 6,8 kilogrammes | PDF 2D | Fichier 3D |
| 1300 CH080836 | 8 | 8 | 36 | 19 livres | PDF 2D | Fichier 3D |
| 1300 CH080848 | 8 | 8 | 48 | 14,97 kg | PDF 2D | Fichier 3D |
| 1300 CH080860 | 8 | 8 | 60 | 18,6 kg | PDF 2D | Fichier 3D |
| 1300 CH121236 | 12 | 12 | 36 | 35 livres | PDF 2D | Fichier 3D |
| 1300 CH121260 | 12 | 12 | 60 | 25,855 kg | PDF 2D | Fichier 3D |
