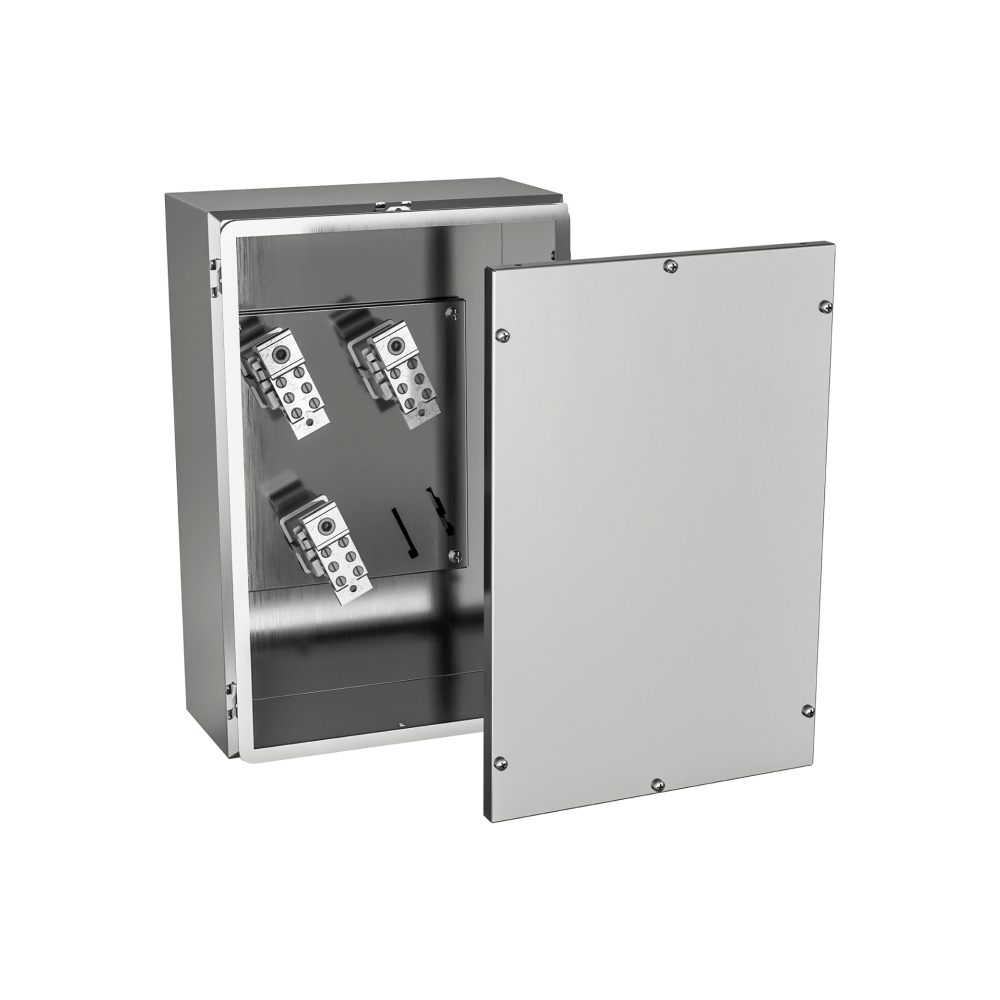

The 1412 BSS & TSS stainless steel splitter boxes and troughs are designed for 600 V (max.) service, 3 or 4 wires, in ordinary locations. There is a curled lip around all sides to increase rigidity and prevent water from entering the enclosure when it is open. They are made of high quality 14 GA or 16 GA stainless steel. They have four mounting holes and a screw cover. There are no knockouts. The phenolic insulated splitter blocks are factory installed on an interior panel, which is mounted on welded studs. Optional mounting feet are available (885 CHSSMF). The enclosure is unpainted and brushed smooth. Inner panel is galvanized (other colors available).
CSA Certified NEMA/EEMAC 4X / IP66
| Référence | Dimensions | Poids du navire | Téléchargements | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 1412 BSS103 | 12 | 12 | 5 | 11 livres | PDF 2D | Fichier 3D |
| 1412 BSS404 | 22 | 20 | 8 | 35 livres | PDF 2D | Fichier 3D |
| 1412 BSS104 | 12 | 12 | 5 | 12 livres | PDF 2D | Fichier 3D |
| 1412 BSS603 | 26 | 25 | 8 | 49 livres | PDF 2D | Fichier 3D |
| 1412 BSS203 | 18 | 12 | 6 | 16 livres | PDF 2D | Fichier 3D |
| 1412 BSS604 | 26 | 25 | 8 | 50 livres | PDF 2D | Fichier 3D |
| 1412 BSS204 | 18 | 12 | 6 | 17 livres | PDF 2D | Fichier 3D |
| 1412 BSS73 | 10 | 10 | 5 | 3,63 kg | PDF 2D | Fichier 3D |
| 1412 BSS403 | 22 | 20 | 8 | 34 livres | PDF 2D | Fichier 3D |
| 1412 BSS74 | 10 | 10 | 5 | 9 livres | PDF 2D | Fichier 3D |
