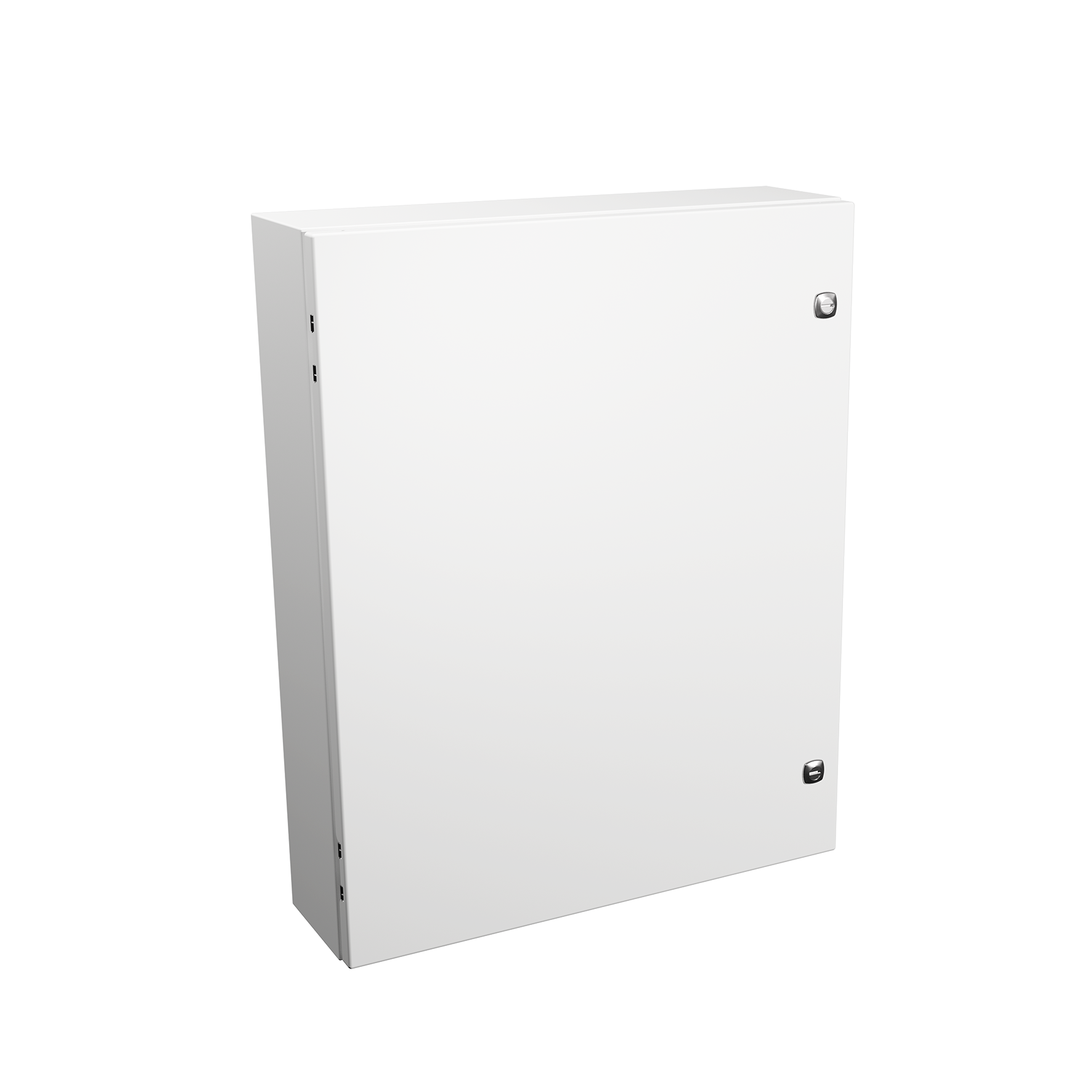

The 5412 ESBU water, oil & dust tight enclosures are used indoors or outdoors in areas where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. The 5412 ESBU are made of high quality 14 GA or 16 GA steel, with continuously welded corner seams. The opening has a curled lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the door is open. A high quality, robotically poured-inplace, seamless gasket ensures a complete and durable water tight seal. The hinges are arranged to allow the installation of rows of enclosures, side by side. A ¼ turn locking mechanism (or 3 point latch system on larger enclosures) ensures positive closing. Internal mounting holes are provided. Each enclosure comes complete with a 12 GA galvanized inner panel, which is double bent* for maximum rigidity and mounts on M8 welded studs. Enclosures are finished with heat fused powder paint, electro-statically applied on a pretreated base. Box is ANSI/ASA 61 smooth gray.
CSA Certified / UL Listed NEMA/EEMAC 4-12 / IP66
| Catalog Number | Dimensions | Ship Weight | Downloads | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 5412 ESB301606 | 30 | 16 | 6 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB301208 | 30 | 12 | 8 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB302410 | 30 | 24 | 10 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB362416 | 36 | 24 | 16 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB363612 | 36 | 36 | 12 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB363608 | 36 | 36 | 8 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB363020 | 36 | 30 | 20 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB363016 | 36 | 30 | 16 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB363012 | 36 | 30 | 12 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB363010 | 36 | 30 | 10 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB363008 | 36 | 30 | 8 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB363006 | 36 | 30 | 6 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB362412 | 36 | 24 | 12 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB362410 | 36 | 24 | 10 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB362408 | 36 | 24 | 8 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB362406 | 36 | 24 | 6 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB422412 | 42 | 24 | 12 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB423616 | 42 | 36 | 16 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB423612 | 42 | 36 | 12 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB423610 | 42 | 36 | 10 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB423608 | 42 | 36 | 8 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB423010 | 42 | 30 | 10 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB423008 | 42 | 30 | 8 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB422408 | 42 | 24 | 8 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB423012 | 42 | 30 | 12 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB483610 | 48 | 36 | 10 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB483620 | 48 | 36 | 20 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB483616 | 48 | 36 | 16 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB483612 | 48 | 36 | 12 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB483608 | 48 | 36 | 8 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB483010 | 48 | 30 | 10 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB483008 | 48 | 30 | 8 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB482412 | 48 | 24 | 12 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB482408 | 48 | 24 | 8 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB602412 | 60 | 24 | 12 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB241206 | 24 | 12 | 6 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB603608 | 60 | 36 | 8 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB603610 | 60 | 36 | 10 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB603612 | 60 | 36 | 12 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB603616 | 60 | 36 | 16 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB603620 | 60 | 36 | 20 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB122406 | 12 | 24 | 6 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB121206 | 12 | 12 | 6 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB122408 | 12 | 24 | 8 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB161206 | 16 | 12 | 6 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB161606 | 16 | 16 | 6 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB162006 | 16 | 20 | 6 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB162008 | 16 | 20 | 8 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB202010 | 20 | 20 | 10 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB202412 | 20 | 24 | 12 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB202408 | 20 | 24 | 8 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB202406 | 20 | 24 | 6 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB202012 | 20 | 20 | 12 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB202008 | 20 | 20 | 8 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB202006 | 20 | 20 | 6 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB201612 | 20 | 16 | 12 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB201610 | 20 | 16 | 10 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB201608 | 20 | 16 | 8 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB201606 | 20 | 16 | 6 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB201208 | 20 | 12 | 8 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB201206 | 20 | 12 | 6 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB241606 | 24 | 16 | 6 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB243008 | 24 | 30 | 8 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB242416 | 24 | 24 | 16 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB242412 | 24 | 24 | 12 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB242410 | 24 | 24 | 10 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB242408 | 24 | 24 | 8 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB242406 | 24 | 24 | 6 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB242016 | 24 | 20 | 16 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB242012 | 24 | 20 | 12 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB242010 | 24 | 20 | 10 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB242008 | 24 | 20 | 8 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB242006 | 24 | 20 | 6 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB241608 | 24 | 16 | 8 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB241210 | 24 | 12 | 10 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB241208 | 24 | 12 | 8 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB303608 | 30 | 36 | 8 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB303012 | 30 | 30 | 12 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB303010 | 30 | 30 | 10 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB303008 | 30 | 30 | 8 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB302424 | 30 | 24 | 24 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB302420 | 30 | 24 | 20 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB302416 | 30 | 24 | 16 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB302412 | 30 | 24 | 12 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB302408 | 30 | 24 | 8 | 19 lbs | 2D PDF | 3D File |
| 512 ESB302406 | 30 | 24 | 6 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB302010 | 30 | 20 | 10 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB302008 | 30 | 20 | 8 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB302006 | 30 | 20 | 6 | 19 lbs | 2D PDF | 3D File |
| 5412 ESB301608 | 30 | 16 | 8 | 19 lbs | 2D PDF | 3D File |
