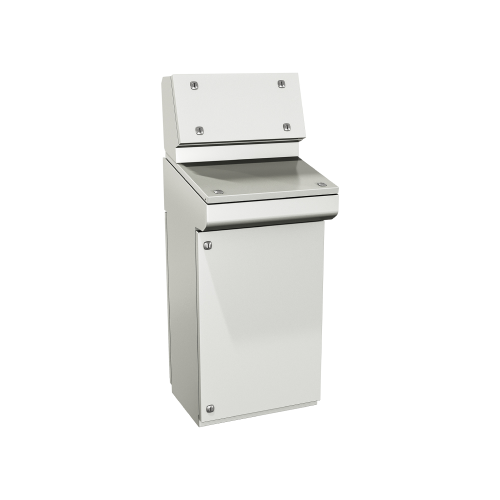

Type 12, 13 | Single door monobloc console with dual access, assembled with turret

Consoles

6500 COTUA

IP 54NEMA 12, 13Acier Doux Peint RAL7035Porte SimpleDouble Accès

Dimension (pouces hauteur x largeur x profondeur)

The 6500 COTUA series is used for indoor use and to protect the equipment against ingress of oil, dust, dirt and water.

Made of high quality steel, with continuously welded corner seams.
The cover is secured by ¼ turn locks.
A robotically poured-in-place seamless gasket ensures a durable seal.
The enclosure has die cast hinges, with stainless steel captive pins.
The body’s construction is designed to prevent dripping water from entering the enclosure.
Paint color: RAL7035 textured light gray.
CSA Certified.
UL Listed.
NEMA 12, 13.
IEC 60529 IP55.

For more information, see 6500 CO and 6500 COTU.

Catalog Number	Dimensions			Ship Weight	Downloads
	A	B	C
6500 COTUA0604		24	16	164 lbs	2D PDF \| 3D File
6500 COTUA0804		31	16	208 lbs	2D PDF \| 3D File

No 3D model available.
