Type 4, 12 | Console avec Surface de Commande à 35°

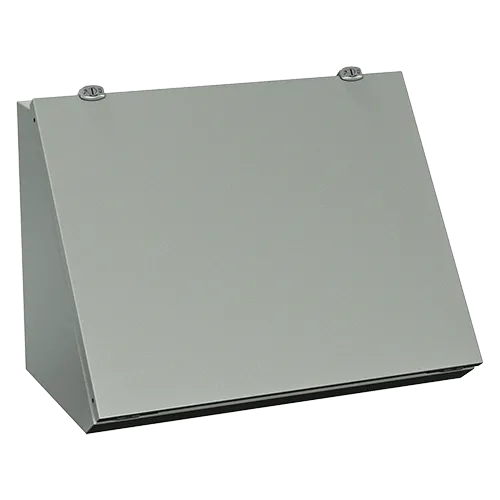

The 1412 CSD (35° control surface) oil and dust tight consolets with cable entry are used indoors to protect electrical equipment against dirt, dust, oil and water splashing. The 1412 CSD consolets are provided with mounting holes for the pedestals (1500 PE060635 or 1500 PEA060641, see p.422). On larger consolets a stabilizing plate is provided to solidify the assembly of the pedestal. Consolets are made of 16 GA steel with all seams continuously welded. The consolets feature die cast hinges, which are bound to the cover by an exclusive, concealed hinge pin system. The covers are inter-changeable and can be removed by unfastening the anti-vibration lock nuts. Covers are secured with EXM’s exclusive flange-mounted ¼ turn locks which ensure positive closing. (Padlockable locks and key locks are available.) A high quality, seamless gasket, which is poured in place, is used to ensure the integrity of the enclosure. Pedestals and bases, if required, must be ordered separately. Consolets are finished with ANSI/ASA 61 smooth gray heat fused powder paint, electro-statically applied on a pretreated base (other colors available).

CSA Certified / UL Listed NEMA/EEMAC 12-13 / IP55 NEMA/EEMAC 4-12 / IP66
