AUTOPORTANT

NEMA Rating RoHS CSA Underwriter Laboratories CE mark

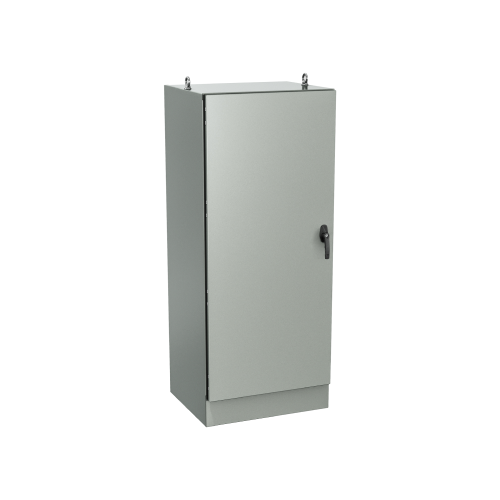

Type 12, 13 | Armoire à Porte Simple avec Panneau Intérieur Réglable et Mécanisme de Serrure Cadenassable à 3 points

9500
IP 54NEMA 12, 13Acier Doux Peint ASA 61 GrisPorte Simple
Save
Remove From Saved List
Ajoutées à la liste

Voir votre produit préféré sur la liste enregistrée

Afficher ma liste Fermer
BoxCad Personnalisez-le ici

The 9500 oil & dust tight enclosures are used indoors for protection against dust, dirt or oil splashing. The 9500 are made of high quality code gauge steel, with continuously welded corner seams. The opening has a curled lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the door is open. A high quality, robotically poured-inplace, seamless gasket ensures a complete and durable oil & dust tight seal. The captive pins of the concealed hinges can be pulled to remove the door. A stainless steel padlockable handle ensures smooth, secure 3-point latching. Optional inner panels can be mounted at any depth, using the three sets of rails welded on the sides of the cabinet. Side panels are optional and may be ordered separately. A print pocket is provided. Double door enclosures have stiffeners on the back. Enclosures are finished with heat fused powder paint, electro-statically applied on a pretreated base. The box is ANSI/ASA 61 gray. Inner panel is galvanized (other colors available).

CSA Certified / UL Listed NEMA/EEMAC 12-13 / IP55



  • Made of high quality steel, with continuously welded corner seams.
  • The doors are secured by a padlockable 3 point lock mechanism.
  • A robotically poured-in-place seamless gasket ensures a durable seal.
  • The cabinet has die cast hinges, with stainless steel captive pins.
  • The body’s construction is designed to prevent dripping water from entering the enclosure.
  • Lifting eyebolts are provided.
  • A strut channel is installed on the top face of the enclosure to mount lighting accessories.
  • The inner panel (optional) depth is adjustable.
  • Paint color: ANSI 61 smooth gray.
  • CSA Certified.
  • UL Listed.
  • NEMA 12, 13.
  • IEC 60529 IP55.
Catalog Number Dimensions Ship Weight Downloads
A B C
9500 602418 60 24 18 250 lbs 2D PDF | 3D File
9500 603624 60 36 24 300 lbs 2D PDF | 3D File
9500 722418 72 24 18 280 lbs 2D PDF | 3D File
9500 722424 72 24 24 300 lbs 2D PDF | 3D File
9500 722430 72 24 30 358 lbs 2D PDF | 3D File
9500 722436 72 24 36 400 lbs 2D PDF | 3D File
9500 723018 72 30 18 300 lbs 2D PDF | 3D File
9500 723024 72 30 24 340 lbs 2D PDF | 3D File
9500 723618 72 36 18 330 lbs 2D PDF | 3D File
9500 723624 72 36 24 375 lbs 2D PDF | 3D File
9500 723630 72 36 30 420 lbs 2D PDF | 3D File
9500 723636 72 36 36 470 lbs 2D PDF | 3D File
9500 902420 90 24 20 405 lbs 2D PDF | 3D File
9500 903620 90 36 20 440 lbs 2D PDF | 3D File
9500 903624 90 36 24 445 lbs 2D PDF | 3D File
9500 903636 90 36 36 500 lbs 2D PDF | 3D File
