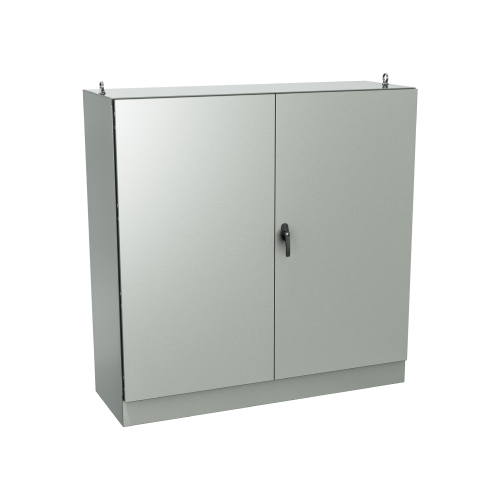

The 9500 DADD oil & dust tight enclosures are used indoors for protection against dust, dirt or oil splashing with double door entry. The 9500 DADD are made of high quality code gauge steel, with continuously welded corner seams. A high quality, robotically poured in place, seamless gasket ensures a complete and durable oil & dust tight seal. There are doors on both sides of the cabinet. The captive pins of the concealed hinges can be pulled to remove the doors. A stainless steel padlockable handle ensures smooth, secure 3-point latching. Optional inner panels can be mounted at any depth, using the three sets of rails welded on the sides of the cabinet. Side panels can also be ordered separately. A print pocket is provided. Enclosures are finished with heat fused powder paint, electro-statically applied on a pretreated base. Box is ANSI/ASA 61 gray, inner panel is galvanized (other colors available).

CSA Certified / UL Listed NEMA/EEMAC 12-13 / IP55
