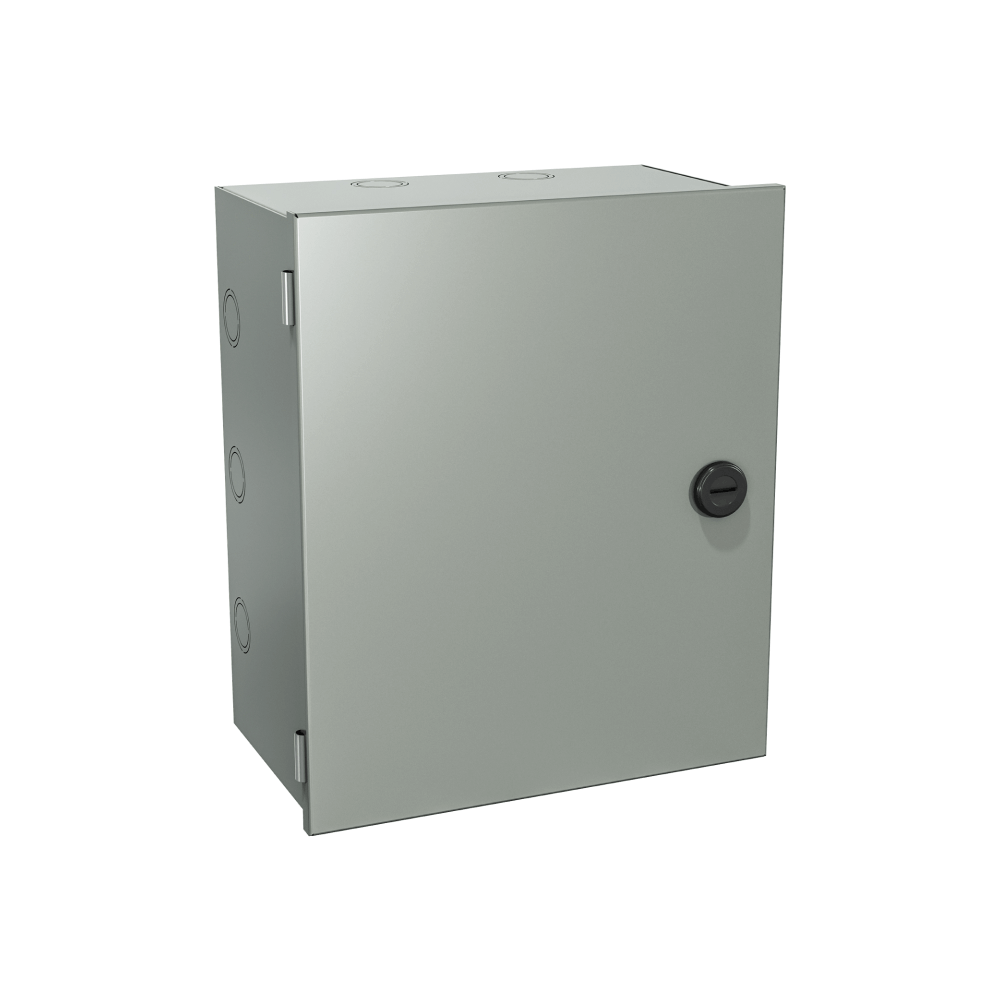

The 1100 E are used as surface mounting junction boxes, switch boxes or general service boxes. Boxes and covers are made of high quality 14 GA or 16 GA steel. Four internal mounting holes, and a bonding screw and attachments are provided. All four sides have concentric knockouts, except when noted. These boxes are also available without knockouts (add suffix “N” to the catalog number). These boxes feature formed steel hinges, a ¼ turn lock and a formed handle †to permit easy opening. The 1100 E is also available with a keylock option. Enclosures are finished with ANSI/ASA 61 smooth gray heat fused powder paint, electro-statically applied on a pretreated base.
CSA Certified / UL Listed NEMA/EEMAC 1 / IP30
| Catalog Number | Dimensions | Ship Weight | Downloads | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 1100 E120806N | 12 | 8 | 6 | 7 lbs | 2D PDF | 3D File |
| 1100 E121004N | 12 | 10 | 4 | 7 lbs | 2D PDF | 3D File |
| 1100 E121006N | 12 | 10 | 6 | 9 lbs | 2D PDF | 3D File |
| 1100 E121204N | 12 | 12 | 4 | 8 lbs | 2D PDF | 3D File |
| 1100 E121206N | 12 | 12 | 6 | 10 lbs | 2D PDF | 3D File |
| 1100 E151204N | 15 | 12 | 4 | 10 lbs | 2D PDF | 3D File |
| 1100 E151206N | 15 | 12 | 6 | 11 lbs | 2D PDF | 3D File |
| 1100 E151504N | 15 | 15 | 4 | 13 lbs | 2D PDF | 3D File |
| 1100 E161606N | 16 | 16 | 6 | 14 lbs | 2D PDF | 3D File |
| 1100 E040404N | 4 | 4 | 4 | 1 lbs | 2D PDF | 3D File |
| 1100 E060603N | 6 | 6 | 3 | 2 lbs | 2D PDF | 3D File |
| 1100 E060604N | 6 | 6 | 4 | 3 lbs | 2D PDF | 3D File |
| 1100 E060606N | 6 | 6 | 6 | 3 lbs | 2D PDF | 3D File |
| 1100 E080604N | 8 | 6 | 4 | 3 lbs | 2D PDF | 3D File |
| 1100 E080606N | 8 | 6 | 6 | 5 lbs | 2D PDF | 3D File |
| 1100 E080804N | 8 | 8 | 4 | 4 lbs | 2D PDF | 3D File |
| 1100 E080806N | 8 | 8 | 6 | 5 lbs | 2D PDF | 3D File |
| 1100 E100804N | 10 | 8 | 4 | 5 lbs | 2D PDF | 3D File |
| 1100 E100806N | 10 | 8 | 6 | 6 lbs | 2D PDF | 3D File |
| 1100 E101004N | 10 | 10 | 4 | 6 lbs | 2D PDF | 3D File |
| 1100 E101006N | 10 | 10 | 6 | 7 lbs | 2D PDF | 3D File |
| 1100 E101008N | 10 | 10 | 8 | 8 lbs | 2D PDF | 3D File |
| 1100 E120604N | 12 | 6 | 4 | 5 lbs | 2D PDF | 3D File |
| 1100 E120804N | 12 | 8 | 4 | 6 lbs | 2D PDF | 3D File |
| 1100 E121006 | 12 | 10 | 6 | 9 lbs | 2D PDF | 3D File |
| 1100 E121204 | 12 | 12 | 4 | 8 lbs | 2D PDF | 3D File |
| 1100 E121206 | 12 | 12 | 6 | 10 lbs | 2D PDF | 3D File |
| 1100 E151204 | 15 | 12 | 4 | 10 lbs | 2D PDF | 3D File |
| 1100 E151206 | 15 | 12 | 6 | 11 lbs | 2D PDF | 3D File |
| 1100 E151504 | 15 | 15 | 4 | 13 lbs | 2D PDF | 3D File |
| 1100 E161606 | 16 | 16 | 4 | 14 lbs | 2D PDF | 3D File |
| 1100 E181204 | 18 | 12 | 4 | 11 lbs | 2D PDF | 3D File |
| 1100 E181206 | 18 | 12 | 6 | 13 lbs | 2D PDF | 3D File |
| 1100 E181504 | 18 | 15 | 4 | 14 lbs | 2D PDF | 3D File |
| 1100 E181506 | 18 | 15 | 6 | 15 lbs | 2D PDF | 3D File |
| 1100 E181804 | 18 | 18 | 4 | 16 lbs | 2D PDF | 3D File |
| 1100 E181806 | 18 | 18 | 6 | 17 lbs | 2D PDF | 3D File |
| 1100 E241806 | 24 | 18 | 6 | 27 lbs | 2D PDF | 3D File |
| 1100 E242406 | 24 | 24 | 6 | 34 lbs | 2D PDF | 3D File |
| 1100 E060603 | 6 | 6 | 3 | 2 lbs | 2D PDF | 3D File |
| 1100 E060604 | 6 | 6 | 4 | 3 lbs | 2D PDF | 3D File |
| 1100 E060606 | 6 | 6 | 6 | 3 lbs | 2D PDF | 3D File |
| 1100 E080604 | 8 | 6 | 4 | 3 lbs | 2D PDF | 3D File |
| 1100 E080606 | 8 | 6 | 6 | 5 lbs | 2D PDF | 3D File |
| 1100 E080804 | 8 | 8 | 4 | 4 lbs | 2D PDF | 3D File |
| 1100 E080806 | 8 | 8 | 6 | 5 lbs | 2D PDF | 3D File |
| 1100 E100804 | 10 | 8 | 4 | 5 lbs | 2D PDF | 3D File |
| 1100 E100806 | 10 | 8 | 6 | 6 lbs | 2D PDF | 3D File |
| 1100 E101004 | 10 | 10 | 4 | 6 lbs | 2D PDF | 3D File |
| 1100 E101006 | 10 | 10 | 6 | 7 lbs | 2D PDF | 3D File |
| 1100 E120604 | 12 | 6 | 4 | 5 lbs | 2D PDF | 3D File |
| 1100 E120804 | 12 | 8 | 4 | 6 lbs | 2D PDF | 3D File |
| 1100 E120806 | 12 | 8 | 6 | 7 lbs | 2D PDF | 3D File |
| 1100 E121004 | 12 | 10 | 4 | 7 lbs | 2D PDF | 3D File |
| 1100 E161608N | 16 | 16 | 8 | 14 lbs | 2D PDF | 3D File |
| 1100 E181204N | 18 | 12 | 4 | 11 lbs | 2D PDF | 3D File |
| 1100 E181206N | 18 | 12 | 6 | 13 lbs | 2D PDF | 3D File |
| 1100 E181504N | 18 | 15 | 4 | 14 lbs | 2D PDF | 3D File |
| 1100 E181506N | 18 | 15 | 6 | 15 lbs | 2D PDF | 3D File |
| 1100 E181804N | 18 | 18 | 4 | 16 lbs | 2D PDF | 3D File |
| 1100 E181806N | 18 | 18 | 6 | 17 lbs | 2D PDF | 3D File |
| 1100 E202010N | 20 | 20 | 10 | 32 lbs | 2D PDF | 3D File |
| 1100 E241806N | 24 | 18 | 6 | 27 lbs | 2D PDF | 3D File |
| 1100 E242406N | 24 | 24 | 6 | 34 lbs | 2D PDF | 3D File |
| 1100 E242408N | 24 | 24 | 8 | 38 lbs | 2D PDF | 3D File |
| 1100 E242410N | 24 | 24 | 10 | 41 lbs | 2D PDF | 3D File |
| 1100 E302010N | 30 | 20 | 10 | 44 lbs | 2D PDF | 3D File |
| 1100 E302406N | 30 | 24 | 6 | 42 lbs | 2D PDF | 3D File |
| 1100 E362410N | 36 | 24 | 10 | 59 lbs | 2D PDF | 3D File |
