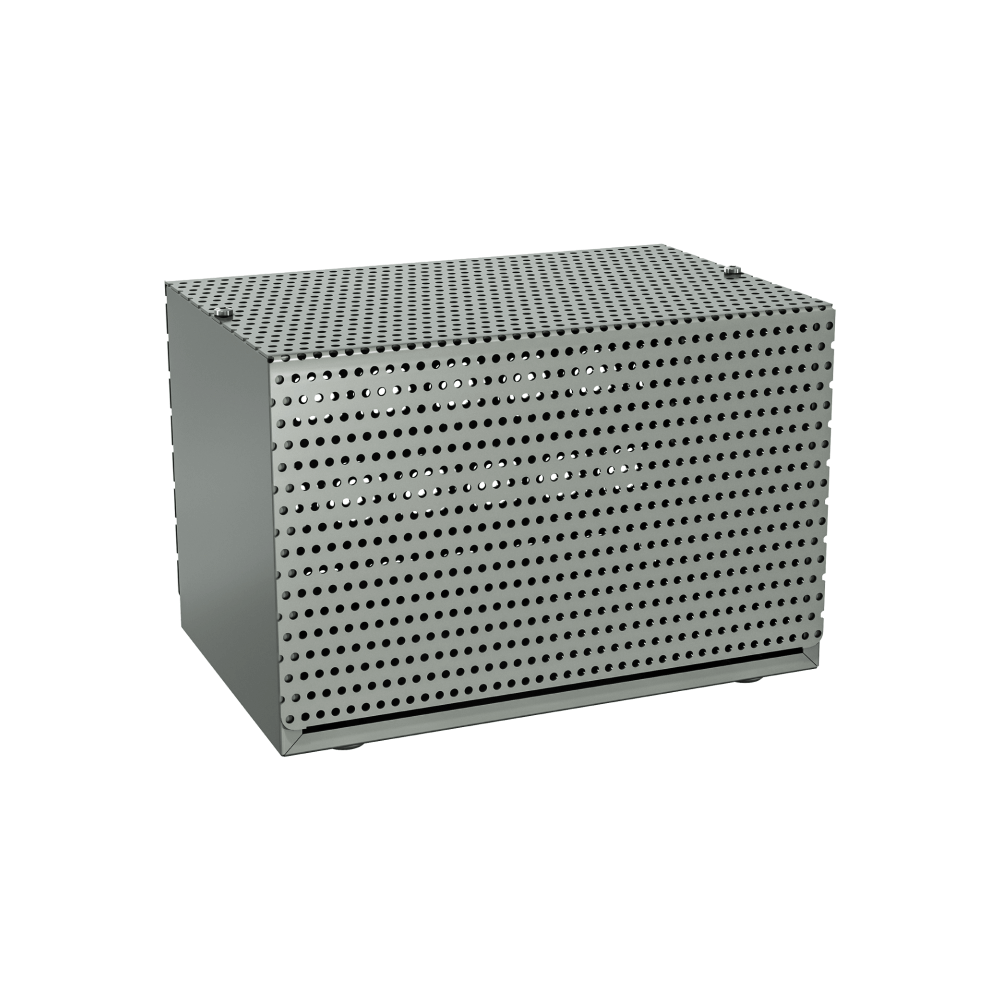

The 1100 VE ventilated enclosures are used for general purposes whenever the contents require ventilation. The enclosures are made of high quality 18 GA steel. There are knockouts at the top and bottom, and all three sides are fully ventilated. Mounting holes are provided in the back and the covers are fixed with screws. Enclosures are finished with ANSI/ASA 61 smooth gray heat fused powder paint, electro-statically applied on a pretreated base (other colors available).
Certifié CSA NEMA/EEMAC 1 / IP30
| Référence | Dimensions | Poids du navire | Téléchargements | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 1100 VE060404 | 6 | 4 | 4 | 2 livres | PDF 2D | Fichier 3D |
| 1100 VE100404 | 10 | 4 | 4 | 3 livres | PDF 2D | Fichier 3D |
| 1100 VE100606 | 10 | 6 | 6 | 4 livres | PDF 2D | Fichier 3D |
| 1100 VE110707 | 11 | 7 | 7 | 6 livres | PDF 2D | Fichier 3D |
| 1100 VE120808 | 12 | 8 | 8 | 7 livres | PDF 2D | Fichier 3D |
| 1100 VE151008 | 15 | 10 | 8 | 10 livres | PDF 2D | Fichier 3D |
| 1100 VE201008 | 20 | 10 | 8 | 12 livres | PDF 2D | Fichier 3D |
| 1100 VE201010 | 20 | 10 | 10 | 14 livres | PDF 2D | Fichier 3D |
