The 1412 series is a complete water tight wireway system, which is used indoor or outdoors, in areas where the wireway may be subjected to hosing or water coming from any direction. The troughs are Bolt-on and are made of high quality code gauge steel, with welded end flanges. All seams have been continuously welded. Covers are hinged and secure closing is assured by several, quick-release, ¼ turn locks. A high quality, poured-in-place, seamless gasket is installed between the door and trough, and between the sections and accessories to ensure integrity. Components are finished with heat fused powder paint, electrostatically applied on a pretreated base. Finish is ANSI/ASA 61 smooth gray.
Certifié CSA / Homologué UL NEMA/EEMAC 4-12 / IP66
| Référence | Dimensions | Poids du navire | Téléchargements | ||
|---|---|---|---|---|---|
| A | B | C | |||

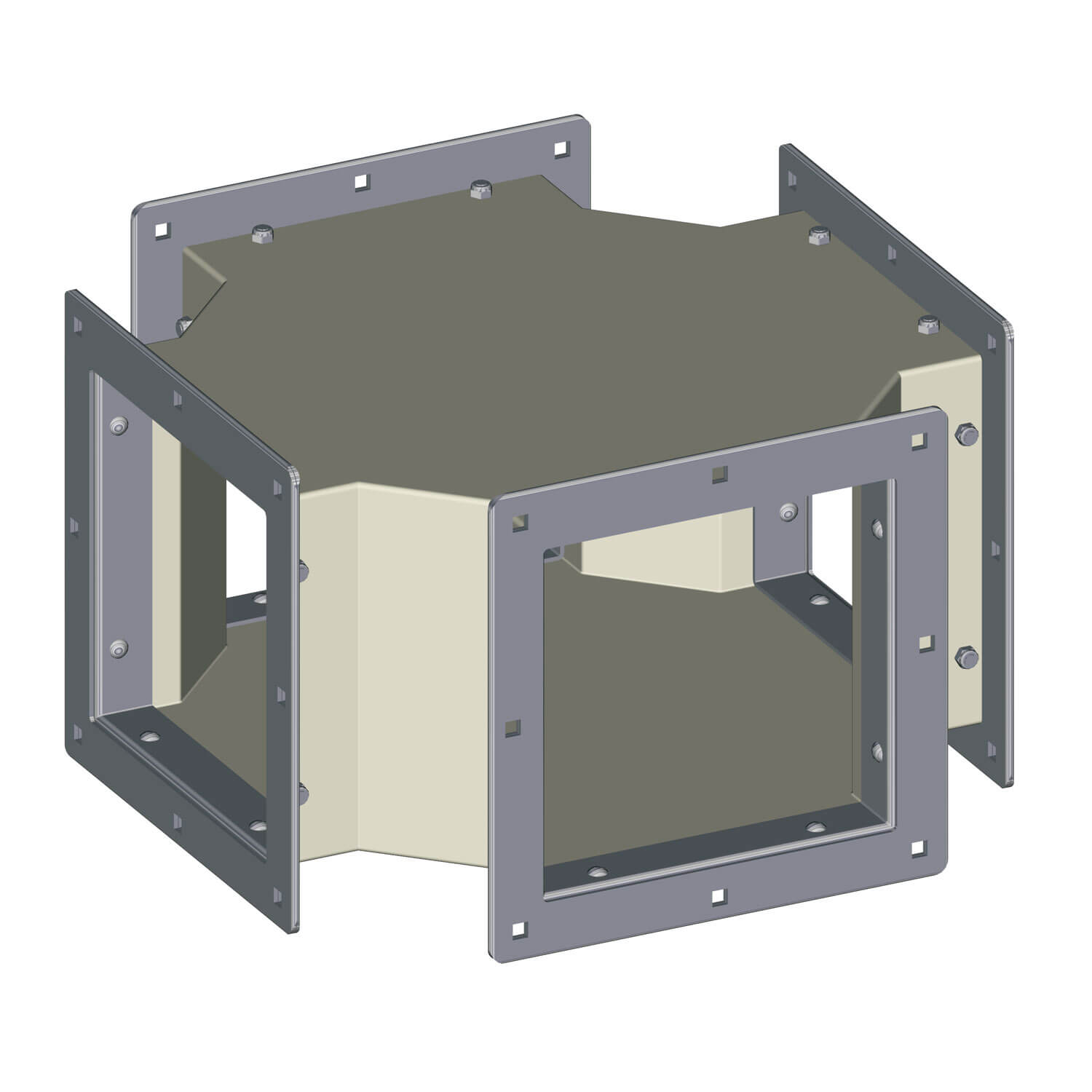

| 1412 CF4065 | 4 | 4 | 10 | N/A | PDF 2D | Fichier 3D |
| 1412 CF6065 | 6 | 6 | 12 | N/A | PDF 2D | Fichier 3D |
| 1412 CF8065 | 8 | 8 | 14 | N/A | PDF 2D | Fichier 3D |
| 1412 CF2065 | 2.5 | 2.5 | 8.5 | N/A | PDF 2D | Fichier 3D |
