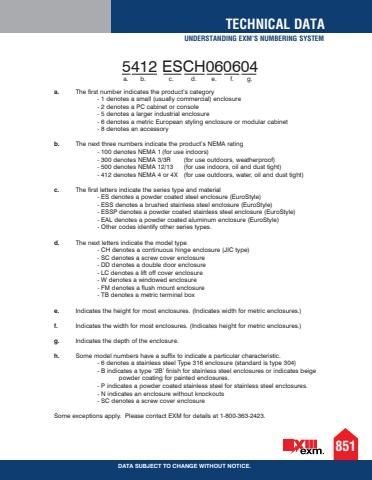

851TECHNICAL DATADATA SUBJECT TO CHANGE WITHOUT NOTICE.5412 ESCH060604a. b. c. d. e. f. g.a. The first number indicates the product%u2019s category - 1 denotes a small (usually commercial) enclosure - 2 denotes a PC cabinet or console - 5 denotes a larger industrial enclosure - 6 denotes a metric European styling enclosure or modular cabinet - 8 denotes an accessory b. The next three numbers indicate the product%u2019s NEMA rating - 100 denotes NEMA 1 (for use indoors) - 300 denotes NEMA 3/3R (for use outdoors, weatherproof) - 500 denotes NEMA 12/13 (for use indoors, oil and dust tight) - 412 denotes NEMA 4 or 4X (for use outdoors, water, oil and dust tight) c. The first letters indicate the series type and material - ES denotes a powder coated steel enclosure (EuroStyle) - ESS denotes a brushed stainless steel enclosure (EuroStyle) - ESSP denotes a powder coated stainless steel enclosure (EuroStyle) - EAL denotes a powder coated aluminum enclosure (EuroStyle) - Other codes identify other series types. d. The next letters indicate the model type - CH denotes a continuous hinge enclosure (JIC type) - SC denotes a screw cover enclosure - DD denotes a double door enclosure - LC denotes a lift off cover enclosure - W denotes a windowed enclosure - FM denotes a flush mount enclosure - TB denotes a metric terminal box e. Indicates the height for most enclosures. (Indicates width for metric enclosures.) f. Indicates the width for most enclosures. (Indicates height for metric enclosures.) g. Indicates the depth of the enclosure. h. Some model numbers have a suffix to indicate a particular characteristic. - 6 denotes a stainless steel Type 316 enclosure (standard is type 304) - B indicates a type %u20182B%u2019 finish for stainless steel enclosures or indicates beige powder coating for painted enclosures. - P indicates a powder coated stainless steel for stainless steel enclosures. - N indicates an enclosure without knockouts - SC denotes a screw cover enclosure Some exceptions apply. Please contact EXM for details at 1-800-363-2423.UNDERSTANDING EXM%u2019S NUMBERING SYSTEM
