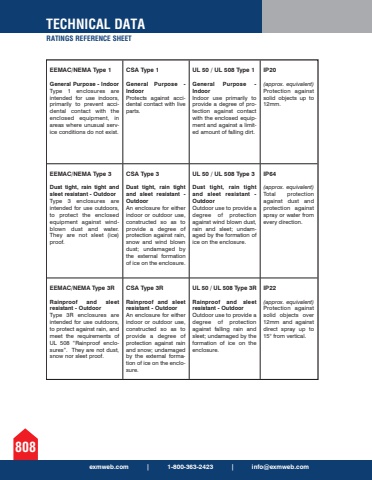

TECHNICAL DATARATINGS REFERENCE SHEET808exmweb.com | 1-800-363-2423 | [email protected]/NEMA Type 1General Purpose - Indoor Type 1 enclosures are intended for use indoors, primarily to prevent accidental contact with the enclosed equipment, in areas where unusual service conditions do not exist. CSA Type 1General Purpose - Indoor Protects against accidental contact with live parts. UL 50 / UL 508 Type 1General Purpose - Indoor Indoor use primarily to provide a degree of protection against contact with the enclosed equipment and against a limited amount of falling dirt. IP20 (approx. equivalent) Protection against solid objects up to 12mm. EEMAC/NEMA Type 3Dust tight, rain tight and sleet resistant - Outdoor Type 3 enclosures are intended for use outdoors, to protect the enclosed equipment against windblown dust and water. They are not sleet (ice) proof. CSA Type 3Dust tight, rain tight and sleet resistant - Outdoor An enclosure for either indoor or outdoor use, constructed so as to provide a degree of protection against rain, snow and wind blown dust; undamaged by the external formation of ice on the enclosure. UL 50 / UL 508 Type 3Dust tight, rain tight and sleet resistant - Outdoor Outdoor use to provide a degree of protection against wind blown dust, rain and sleet; undamaged by the formation of ice on the enclosure. IP64 (approx. equivalent) Total protection against dust and protection against spray or water from every direction.EEMAC/NEMA Type 3RRainproof and sleet resistant - Outdoor Type 3R enclosures are intended for use outdoors, to protect against rain, and meet the requirements of UL 508 %u201cRainproof enclosures%u201d. They are not dust, snow nor sleet proof. CSA Type 3RRainproof and sleet resistant - Outdoor An enclosure for either indoor or outdoor use, constructed so as to provide a degree of protection against rain and snow; undamaged by the external formation of ice on the enclosure. UL 50 / UL 508 Type 3RRainproof and sleet resistant - Outdoor Outdoor use to provide a degree of protection against falling rain and sleet; undamaged by the formation of ice on the enclosure. IP22 (approx. equivalent) Protection against solid objects over 12mm and against direct spray up to 15%u00b0 from vertical.
