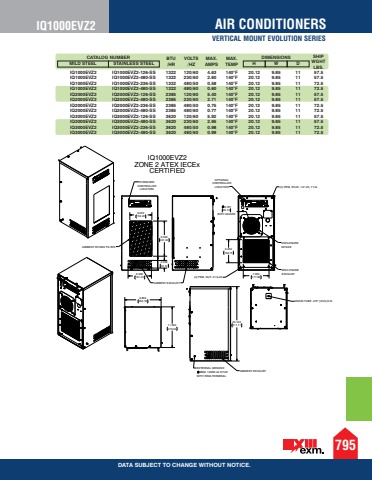

795DATA SUBJECT TO CHANGE WITHOUT NOTICE.AIR CONDITIONERSVERTICAL MOUNT EVOLUTION SERIESIQ1000EVZ2H W DDIMENSIONSMILD STEEL STAINLESS STEELCATALOG NUMBER BTU /HRVOLTS /HZMAX. AMPSMAX. TEMPIQ1000EVZ2 IQ1000EVZ2-126-SS 1322 120/60 4.63 140%u00b0F 20.12 9.85 11 57.5 IQ1000EVZ2 IQ1000EVZ2-480-SS 1322 230/60 2.60 140%u00b0F 20.12 9.85 11 57.5 IQ1000EVZ2 IQ1000EVZ2-236-SS 1322 480/50 0.58 140%u00b0F 20.12 9.85 11 72.5 IQ1000EVZ2 IQ1000EVZ2-480-SS 1322 480/60 0.60 140%u00b0F 20.12 9.85 11 72.5 IQ2000EVZ2 IQ2000EVZ2-126-SS 2385 120/60 5.40 140%u00b0F 20.12 9.85 11 57.5 IQ2000EVZ2 IQ2000EVZ2-480-SS 2385 230/60 2.71 140%u00b0F 20.12 9.85 11 57.5IQ2000EVZ2 IQ2000EVZ2-236-SS 2385 480/50 0.75 140%u00b0F 20.12 9.85 11 72.5 IQ2000EVZ2 IQ2000EVZ2-480-SS 2385 480/60 0.77 140%u00b0F 20.12 9.85 11 72.5 IQ3000EVZ2 IQ3000EVZ2-126-SS 3620 120/60 5.92 140%u00b0F 20.12 9.85 11 57.5 IQ3000EVZ2 IQ3000EVZ2-480-SS 3620 230/60 2.95 140%u00b0F 20.12 9.85 11 57.5IQ3000EVZ2 IQ3000EVZ2-236-SS 3620 480/50 0.98 140%u00b0F 20.12 9.85 11 72.5 IQ3000EVZ2 IQ3000EVZ2-480-SS 3620 480/60 0.99 140%u00b0F 20.12 9.85 11 72.5DRAIN TUBE .375\ 2 2.0552.12 6 6.35161.44 0 9.50241.30 0 6.00152.40STANDARDCONTROLLERLOCATIONAMBIENT INTAKE FILTER 0 11.00279.40 0 9.85250.18 3 20.12511.11AMBIENT EXHAUST EXTERNAL GROUND6MM, 12MM LG STUDWITH RING TERMINAL3.78796.19WITH GUARD 0 6.25158.75 0 7.00177.80ENCLOSUREINTAKEENCLOSUREEXHAUST(4) PEM, NUT, #1/4-20OPTIONALCONTROLLERLOCATION (2) PEM, STUD, 1/4\IQ1000EVZ2ZONE 2 ATEX IECExCERTIFIEDAMBIENT EXHAUSTSHIP WGHT LBS.
