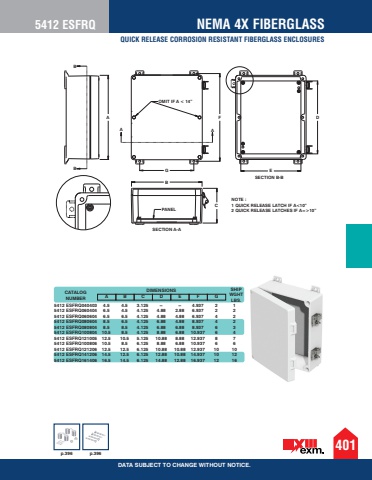

401DATA SUBJECT TO CHANGE WITHOUT NOTICE.QUICK RELEASE CORROSION RESISTANT FIBERGLASS ENCLOSURES5412 ESFRQ NEMA 4X FIBERGLASSBBAAOMIT IF A < 14%u201dFAG EDSECTION B-BNOTE :1 QUICK RELEASE LATCH IF A<10%u201dPANEL 2 QUICK RELEASE LATCHES IF A=>10%u201dBCSECTION A-AA B C D E F GDIMENSIONS5412 ESFRQ040403 4.5 4.5 3.125 -- -- 4.937 2 1 5412 ESFRQ060404 6.5 4.5 4.125 4.88 2.88 6.937 2 2 5412 ESFRQ060604 6.5 6.5 4.125 4.88 4.88 6.937 4 2 5412 ESFRQ080604 8.5 6.5 4.125 6.88 4.88 8.937 4 2 5412 ESFRQ080804 8.5 8.5 4.125 6.88 6.88 8.937 6 3 5412 ESFRQ100804 10.5 8.5 4.125 8.88 6.88 10.937 6 4 5412 ESFRQ121005 12.5 10.5 5.125 10.88 8.88 12.937 8 7 5412 ESFRQ100806 10.5 8.5 6.125 8.88 6.88 10.937 6 6 5412 ESFRQ121206 12.5 12.5 6.125 10.88 10.88 12.937 10 10 5412 ESFRQ141206 14.5 12.5 6.125 12.88 10.88 14.937 10 12 5412 ESFRQ161406 16.5 14.5 6.125 14.88 12.88 16.937 12 16 CATALOG NUMBERSHIP WGHT LBS.p.396 p.396
