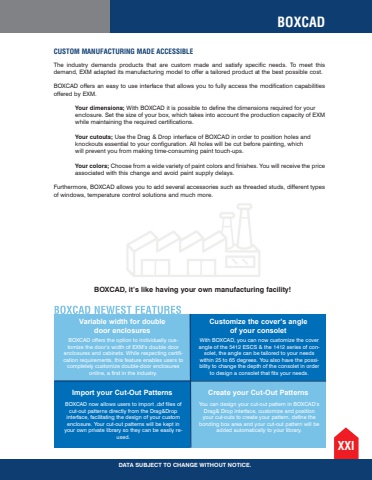

XXIBOXCADDATA SUBJECT TO CHANGE WITHOUT NOTICE.CUSTOM MANUFACTURING MADE ACCESSIBLEBOXCAD, it%u2019s like having your own manufacturing facility!The industry demands products that are custom made and satisfy specific needs. To meet this demand, EXM adapted its manufacturing model to offer a tailored product at the best possible cost. BOXCAD offers an easy to use interface that allows you to fully access the modification capabilities offered by EXM. Your dimensions; With BOXCAD it is possible to define the dimensions required for your enclosure. Set the size of your box, which takes into account the production capacity of EXM while maintaining the required certifications. Your cutouts; Use the Drag & Drop interface of BOXCAD in order to position holes and knockouts essential to your configuration. All holes will be cut before painting, which will prevent you from making time-consuming paint touch-ups. Your colors; Choose from a wide variety of paint colors and finishes. You will receive the price associated with this change and avoid paint supply delays. Furthermore, BOXCAD allows you to add several accessories such as threaded studs, different types of windows, temperature control solutions and much more. BOXCAD offers the option to individually customize the door%u2019s width of EXM%u2019s double door enclosures and cabinets. While respecting certification requirements, this feature enables users to completely customize double-door enclosures online, a first in the industry.Variable width for double door enclosuresWith BOXCAD, you can now customize the cover angle of the 5412 ESCS & the 1412 series of consolet, the angle can be tailored to your needs within 25 to 65 degrees. You also have the possibility to change the depth of the consolet in order to design a consolet that fits your needs.Customize the cover%u2019s angle of your consoletBOXCAD now allows users to import .dxf files of cut-out patterns directly from the Drag&Drop interface, facilitating the design of your custom enclosure. Your cut-out patterns will be kept in your own private library so they can be easily reused.Import your Cut-Out PatternsYou can design your cut-out pattern in BOXCAD%u2019s Drag& Drop interface, customize and position your cut-outs to create your pattern, define the bonding box area and your cut-out pattern will be added automatically to your library.Create your Cut-Out Patterns
