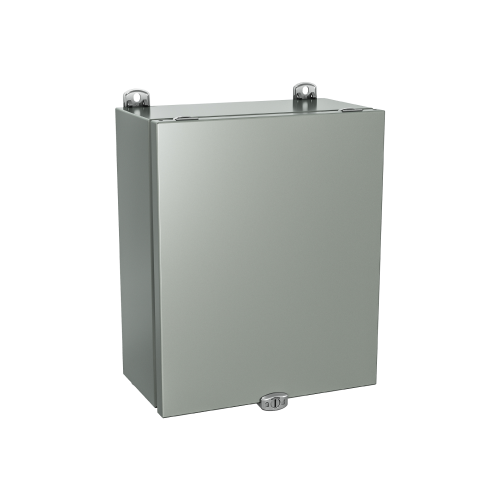

The 5412 ESLC series is used indoors or outdoors where the enclosures may be subject to hosing or water coming from any direction and for protection against dust, dirt or oil splashing.
Made of high quality steel, with continuously welded corner seams.
The cover is secured by ¼ turn locks and is completely removable.
A robotically poured-in-place seamless gasket ensures a durable seal.
Wall mounting feet kit are provided.
Paint color: ANSI 61 smooth gray.
CSA certified.
UL listed.
NEMA 4,12.
IEC 60529 IP66.
Catalog Number | Dimensions | Ship Weight | Downloads | ||
---|---|---|---|---|---|
A | B | C | |||
5412 ESLC060403 | 6 | 4 | 3 | 3 lbs | 2D PDF | Zip Archive |
5412 ESLC060404 | 6 | 4 | 4 | 4 lbs | 2D PDF | Zip Archive |
5412 ESLC060604 | 6 | 6 | 4 | 5 lbs | 2D PDF | Zip Archive |
5412 ESLC080604 | 8 | 6 | 4 | 6 lbs | 2D PDF | Zip Archive |
5412 ESLC100804 | 10 | 8 | 4 | 10 lbs | 2D PDF | Zip Archive |
5412 ESLC121005 | 12 | 10 | 5 | 13 lbs | 2D PDF | Zip Archive |
5412 ESLC141206 | 14 | 12 | 6 | 19 lbs | 2D PDF | Zip Archive |
5412 ESLC141208 | 14 | 12 | 8 | 20 lbs | 2D PDF | Zip Archive |
5412 ESLC161406 | 16 | 14 | 6 | 23 lbs | 2D PDF | Zip Archive |
5412 ESLC161410 | 16 | 14 | 10 | 25 lbs | 2D PDF | Zip Archive |
