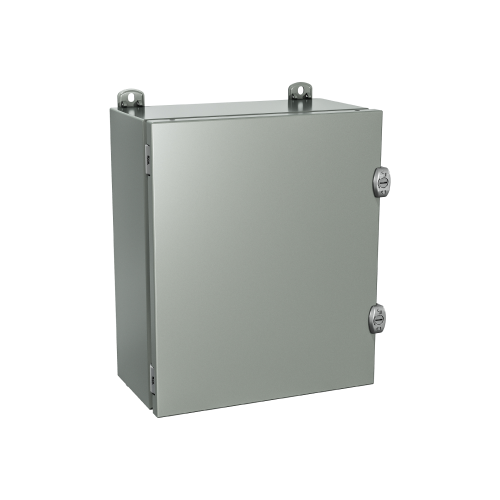

The 5412 ESMCH series is used indoors or outdoors where the enclosures may be subject to hosing or water coming from any direction and for protection against dust, dirt or oil splashing.
| Catalog Number | Dimensions | Ship Weight | Downloads | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 5412 ESMCH060403 | 6 | 4 | 3 | 3 lbs | 2D PDF | Zip Archive |
| 5412 ESMCH060404 | 6 | 4 | 4 | 4 lbs | 2D PDF | Zip Archive |
| 5412 ESMCH060604 | 6 | 6 | 4 | 5 lbs | 2D PDF | Zip Archive |
| 5412 ESMCH060605 | 6 | 6 | 5 | 6 lbs | 2D PDF | Zip Archive |
| 5412 ESMCH080604 | 8 | 6 | 4 | 6 lbs | 2D PDF | Zip Archive |
| 5412 ESMCH080605 | 8 | 6 | 5 | 7 lbs | 2D PDF | Zip Archive |
| 5412 ESMCH080606 | 8 | 6 | 6 | 7 lbs | 2D PDF | Zip Archive |
| 5412 ESMCH080804 | 8 | 8 | 4 | 8 lbs | 2D PDF | Zip Archive |
| 5412 ESMCH081004 | 8 | 10 | 4 | 10 lbs | 2D PDF | Zip Archive |
| 5412 ESMCH100804 | 10 | 8 | 4 | 10 lbs | 2D PDF | Zip Archive |
| 5412 ESMCH100806 | 10 | 8 | 6 | 12 lbs | 2D PDF | Zip Archive |
| 5412 ESMCH101005 | 10 | 10 | 5 | 14 lbs | 2D PDF | Zip Archive |
| 5412 ESMCH101006 | 10 | 10 | 6 | 14 lbs | 2D PDF | Zip Archive |
| 5412 ESMCH101205 | 10 | 12 | 5 | 16 lbs | 2D PDF | Zip Archive |
| 5412 ESMCH120604 | 12 | 6 | 4 | 8 lbs | 2D PDF | Zip Archive |
| 5412 ESMCH121005 | 12 | 10 | 5 | 16 lbs | 2D PDF | Zip Archive |
| 5412 ESMCH121008 | 12 | 10 | 8 | 16 lbs | 2D PDF | Zip Archive |
| 5412 ESMCH121205 | 12 | 12 | 5 | 18 lbs | 2D PDF | Zip Archive |
| 5412 ESMCH121206 | 12 | 12 | 6 | 18 lbs | 2D PDF | Zip Archive |
| 5412 ESMCH121406 | 12 | 14 | 6 | 19 lbs | 2D PDF | Zip Archive |
| 5412 ESMCH140806 | 14 | 8 | 6 | 10 lbs | 2D PDF | Zip Archive |
| 5412 ESMCH141206 | 14 | 12 | 6 | 19 lbs | 2D PDF | Zip Archive |
| 5412 ESMCH141208 | 14 | 12 | 8 | 20 lbs | 2D PDF | Zip Archive |
| 5412 ESMCH141606 | 14 | 16 | 6 | 23 lbs | 2D PDF | Zip Archive |
| 5412 ESMCH161006 | 16 | 10 | 6 | 19 lbs | 2D PDF | Zip Archive |
| 5412 ESMCH161206 | 16 | 12 | 6 | 21 lbs | 2D PDF | Zip Archive |
| 5412 ESMCH161208 | 16 | 12 | 8 | 25 lbs | 2D PDF | Zip Archive |
| 5412 ESMCH161406 | 16 | 14 | 6 | 23 lbs | 2D PDF | Zip Archive |
| 5412 ESMCH161408 | 16 | 14 | 8 | 26 lbs | 2D PDF | Zip Archive |
| 5412 ESMCH161410 | 16 | 14 | 10 | 27 lbs | 2D PDF | Zip Archive |
