Wall Mount

NEMA Rating RoHS CSA Underwriter Laboratories CE mark

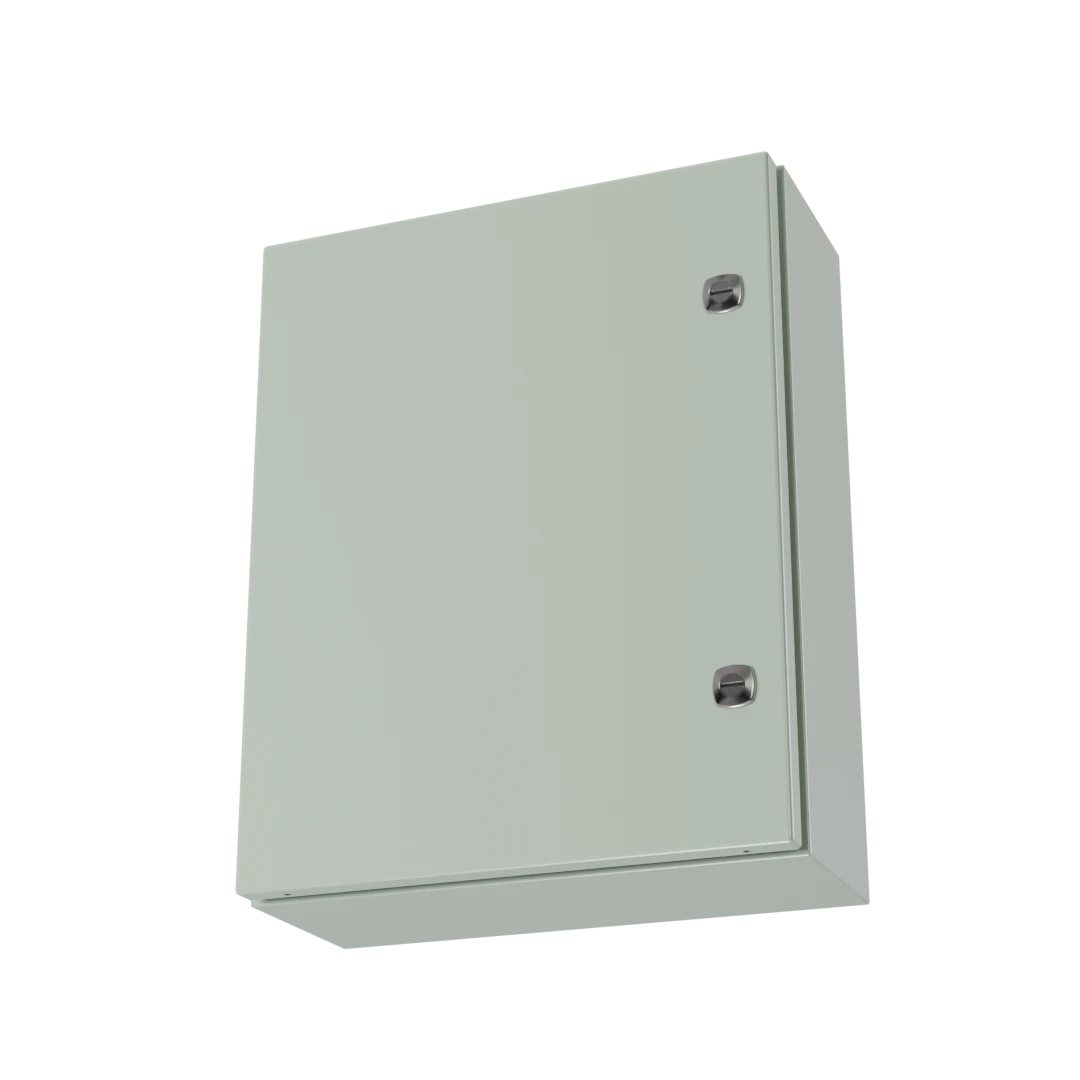

Type 4, 12 | Single door buttable enclosure

5412 ESBU
IP 66, 54NEMA 4, 12Mild Steel painted ASA 61 GrayInner PanelButtableSingle Door
Save
Remove From Saved List
Added to Saved List

See your favorite product on Saved List

View My Saved List Close
BoxCad Customize it here

The 5412 ESBU series is used indoors or outdoors where the enclosures may be subject to hosing or water coming from any direction and for protection against dust, dirt or oil splashing.

  • Made of high quality steel, with continuously welded corner seams.
  • The cover is secured by ¼ turn locks (or a 3 point lock mechanism on larger enclosures).
  • A robotically poured-in-place seamless gasket ensures a durable seal.
  • The enclosure has die cast hinges, with stainless steel captive pins.
  • Mounting holes are provided on the back face of the enclosure.
  • The body’s construction is designed to prevent dripping water from entering the enclosure.
  • Paint color: ANSI 61 smooth gray.
  • CSA certified.
  • UL listed.
  • NEMA 4,12.
  • IEC 60529 IP66.
Catalog Number Dimensions Ship Weight Downloads
A B C
5412 ESBU302408 30 24 8 81 lbs 2D PDF | 3D File
5412 ESBU121206 12 12 6 19 lbs 2D PDF | 3D File
5412 ESBU122406 12 24 6 35 lbs 2D PDF | 3D File
5412 ESBU122408 12 24 8 38 lbs 2D PDF | 3D File
5412 ESBU161206 16 12 6 24 lbs 2D PDF | 3D File
5412 ESBU161208 16 12 8 27 lbs 2D PDF | 3D File
5412 ESBU161210 16 12 10 30 lbs 2D PDF | 3D File
5412 ESBU161606 16 16 6 31 lbs 2D PDF | 3D File
5412 ESBU161608 16 16 8 34 lbs 2D PDF | 3D File
5412 ESBU162006 16 20 6 37 lbs 2D PDF | 3D File
5412 ESBU162008 16 20 8 41 lbs 2D PDF | 3D File
5412 ESBU201206 20 12 6 29 lbs 2D PDF | 3D File
5412 ESBU201208 20 12 8 33 lbs 2D PDF | 3D File
5412 ESBU201606 20 16 6 37 lbs 2D PDF | 3D File
5412 ESBU201608 20 16 8 41 lbs 2D PDF | 3D File
5412 ESBU201610 20 16 10 44 lbs 2D PDF | 3D File
5412 ESBU201612 20 16 12 48 lbs 2D PDF | 3D File
5412 ESBU202006 20 20 6 45 lbs 2D PDF | 3D File
5412 ESBU202008 20 20 8 49 lbs 2D PDF | 3D File
5412 ESBU202010 20 20 10 53 lbs 2D PDF | 3D File
5412 ESBU202012 20 20 12 57 lbs 2D PDF | 3D File
5412 ESBU202406 20 24 6 53 lbs 2D PDF | 3D File
5412 ESBU202408 20 24 8 57 lbs 2D PDF | 3D File
5412 ESBU202412 20 24 12 66 lbs 2D PDF | 3D File
5412 ESBU241206 24 12 6 35 lbs 2D PDF | 3D File
5412 ESBU241208 24 12 8 38 lbs 2D PDF | 3D File
5412 ESBU241210 24 12 10 42 lbs 2D PDF | 3D File
5412 ESBU241606 24 16 6 44 lbs 2D PDF | 3D File
5412 ESBU241608 24 16 8 48 lbs 2D PDF | 3D File
5412 ESBU242006 24 20 6 53 lbs 2D PDF | 3D File
5412 ESBU242008 24 20 8 57 lbs 2D PDF | 3D File
5412 ESBU242010 24 20 10 62 lbs 2D PDF | 3D File
5412 ESBU242012 24 20 12 66 lbs 2D PDF | 3D File
5412 ESBU242016 24 20 16 74 lbs 2D PDF | 3D File
5412 ESBU242406 24 24 6 62 lbs 2D PDF | 3D File
5412 ESBU242408 24 24 8 67 lbs 2D PDF | 3D File
5412 ESBU242410 24 24 10 71 lbs 2D PDF | 3D File
5412 ESBU242412 24 24 12 76 lbs 2D PDF | 3D File
5412 ESBU242416 24 24 16 86 lbs 2D PDF | 3D File
5412 ESBU243008 24 30 8 81 lbs 2D PDF | 3D File
5412 ESBU301208 30 12 8 46 lbs 2D PDF | 3D File
5412 ESBU301606 30 16 6 53 lbs 2D PDF | 3D File
5412 ESBU301608 30 16 8 58 lbs 2D PDF | 3D File
5412 ESBU302006 30 20 6 65 lbs 2D PDF | 3D File
5412 ESBU302008 30 20 8 70 lbs 2D PDF | 3D File
5412 ESBU302010 30 20 10 74 lbs 2D PDF | 3D File
5412 ESBU302406 30 24 6 76 lbs 2D PDF | 3D File
5412 ESBU302410 30 24 10 86 lbs 2D PDF | 3D File
5412 ESBU302412 30 24 12 92 lbs 2D PDF | 3D File
5412 ESBU302416 30 24 16 102 lbs 2D PDF | 3D File
5412 ESBU302420 30 24 20 113 lbs 2D PDF | 3D File
5412 ESBU302424 30 24 24 123 lbs 2D PDF | 3D File
5412 ESBU303008 30 30 8 98 lbs 2D PDF | 3D File
5412 ESBU303012 30 30 12 110 lbs 2D PDF | 3D File
5412 ESBU303608 30 36 8 116 lbs 2D PDF | 3D File
5412 ESBU362406 36 24 6 90 lbs 2D PDF | 3D File
5412 ESBU362408 36 24 8 95 lbs 2D PDF | 3D File
5412 ESBU362410 36 24 10 101 lbs 2D PDF | 3D File
5412 ESBU362412 36 24 12 107 lbs 2D PDF | 3D File
5412 ESBU362416 36 24 16 119 lbs 2D PDF | 3D File
5412 ESBU363006 36 30 6 109 lbs 2D PDF | 3D File
5412 ESBU363008 36 30 8 116 lbs 2D PDF | 3D File
5412 ESBU363010 36 30 10 122 lbs 2D PDF | 3D File
5412 ESBU363012 36 30 12 129 lbs 2D PDF | 3D File
5412 ESBU363016 36 30 16 142 lbs 2D PDF | 3D File
5412 ESBU363020 36 30 20 155 lbs 2D PDF | 3D File
5412 ESBU363608 36 36 8 136 lbs 2D PDF | 3D File
5412 ESBU363612 36 36 12 150 lbs 2D PDF | 3D File
5412 ESBU422408 42 24 8 110 lbs 2D PDF | 3D File
5412 ESBU422412 42 24 12 118 lbs 2D PDF | 3D File
5412 ESBU423008 42 30 8 133 lbs 2D PDF | 3D File
5412 ESBU423010 42 30 10 140 lbs 2D PDF | 3D File
5412 ESBU423012 42 30 12 147 lbs 2D PDF | 3D File
5412 ESBU423608 42 36 8 156 lbs 2D PDF | 3D File
5412 ESBU423610 42 36 10 164 lbs 2D PDF | 3D File
5412 ESBU423612 42 36 12 172 lbs 2D PDF | 3D File
5412 ESBU423616 42 36 16 187 lbs 2D PDF | 3D File
5412 ESBU482408 48 24 8 124 lbs 2D PDF | 3D File
5412 ESBU482412 48 24 12 138 lbs 2D PDF | 3D File
5412 ESBU483008 48 30 8 150 lbs 2D PDF | 3D File
5412 ESBU483010 48 30 10 158 lbs 2D PDF | 3D File
5412 ESBU483608 48 36 8 177 lbs 2D PDF | 3D File
5412 ESBU483610 48 36 10 185 lbs 2D PDF | 3D File
5412 ESBU483612 48 36 12 193 lbs 2D PDF | 3D File
5412 ESBU483616 48 36 16 210 lbs 2D PDF | 3D File
5412 ESBU483620 48 36 20 226 lbs 2D PDF | 3D File
5412 ESBU602412 60 24 12 169 lbs 2D PDF | 3D File
5412 ESBU603608 60 36 8 218 lbs 2D PDF | 3D File
5412 ESBU603610 60 36 10 227 lbs 2D PDF | 3D File
5412 ESBU603612 60 36 12 236 lbs 2D PDF | 3D File
5412 ESBU603616 60 36 16 255 lbs 2D PDF | 3D File
5412 ESBU603620 60 36 20 274 lbs 2D PDF | 3D File
5412 ESBU723012 72 30 12 240 lbs 2D PDF | 3D File
5412 ESBU723016 72 30 16 260 lbs 2D PDF | 3D File
5412 ESBU723020 72 30 20 280 lbs 2D PDF | 3D File
5412 ESBU723024 72 30 24 300 lbs 2D PDF | 3D File
5412 ESBU723612 72 36 12 279 lbs 2D PDF | 3D File
5412 ESBU723616 72 36 16 301 lbs 2D PDF | 3D File
5412 ESBU121206TH 12 12 6 19 lbs 2D PDF | 3D File
5412 ESBU122406TH 12 24 6 35 lbs 2D PDF | 3D File
5412 ESBU122408TH 12 24 8 38 lbs 2D PDF | 3D File
5412 ESBU161206TH 16 12 6 24 lbs 2D PDF | 3D File
5412 ESBU161208TH 16 12 8 27 lbs 2D PDF | 3D File
5412 ESBU161210TH 16 12 10 30 lbs 2D PDF | 3D File
5412 ESBU161606TH 16 16 6 31 lbs 2D PDF | 3D File
5412 ESBU161608TH 16 16 8 34 lbs 2D PDF | 3D File
5412 ESBU162006TH 16 20 6 37 lbs 2D PDF | 3D File
5412 ESBU162008TH 16 20 8 41 lbs 2D PDF | 3D File
5412 ESBU201206TH 20 12 6 29 lbs 2D PDF | 3D File
5412 ESBU201208TH 20 12 8 33 lbs 2D PDF | 3D File
5412 ESBU201606TH 20 16 6 37 lbs 2D PDF | 3D File
5412 ESBU201608TH 20 16 8 41 lbs 2D PDF | 3D File
5412 ESBU201610TH 20 16 10 44 lbs 2D PDF | 3D File
5412 ESBU201612TH 20 16 12 48 lbs 2D PDF | 3D File
5412 ESBU202006TH 20 20 6 45 lbs 2D PDF | 3D File
5412 ESBU202008TH 20 20 8 49 lbs 2D PDF | 3D File
5412 ESBU202010TH 20 20 10 53 lbs 2D PDF | 3D File
5412 ESBU202012TH 20 20 12 57 lbs 2D PDF | 3D File
5412 ESBU202406TH 20 24 6 53 lbs 2D PDF | 3D File
5412 ESBU202408TH 20 24 8 57 lbs 2D PDF | 3D File
5412 ESBU202412TH 20 24 12 66 lbs 2D PDF | 3D File
5412 ESBU241206TH 24 12 6 35 lbs 2D PDF | 3D File
5412 ESBU241208TH 24 12 8 38 lbs 2D PDF | 3D File
5412 ESBU241210TH 24 12 10 42 lbs 2D PDF | 3D File
5412 ESBU241606TH 24 16 6 44 lbs 2D PDF | 3D File
5412 ESBU241608TH 24 16 8 48 lbs 2D PDF | 3D File
5412 ESBU242006TH 24 20 6 53 lbs 2D PDF | 3D File
5412 ESBU242008TH 24 20 8 57 lbs 2D PDF | 3D File
5412 ESBU242010TH 24 20 10 62 lbs 2D PDF | 3D File
5412 ESBU242012TH 24 20 12 66 lbs 2D PDF | 3D File
5412 ESBU242016TH 24 20 16 74 lbs 2D PDF | 3D File
5412 ESBU242406TH 24 24 6 62 lbs 2D PDF | 3D File
5412 ESBU242408TH 24 24 8 67 lbs 2D PDF | 3D File
5412 ESBU242410TH 24 24 10 71 lbs 2D PDF | 3D File
5412 ESBU242412TH 24 24 12 76 lbs 2D PDF | 3D File
5412 ESBU242416TH 24 24 16 86 lbs 2D PDF | 3D File
5412 ESBU243008TH 24 30 8 81 lbs 2D PDF | 3D File
5412 ESBU301208TH 30 12 8 46 lbs 2D PDF | 3D File
5412 ESBU301606TH 30 16 6 53 lbs 2D PDF | 3D File
5412 ESBU301608TH 30 16 8 58 lbs 2D PDF | 3D File
5412 ESBU302006TH 30 20 6 65 lbs 2D PDF | 3D File
5412 ESBU302008TH 30 20 8 70 lbs 2D PDF | 3D File
5412 ESBU302010TH 30 20 10 74 lbs 2D PDF | 3D File
5412 ESBU302406TH 30 24 6 76 lbs 2D PDF | 3D File
5412 ESBU302408TH 30 24 8 81 lbs 2D PDF | 3D File
5412 ESBU302410TH 30 24 10 86 lbs 2D PDF | 3D File
5412 ESBU302412TH 30 24 12 92 lbs 2D PDF | 3D File
5412 ESBU302416TH 30 24 16 102 lbs 2D PDF | 3D File
5412 ESBU302420TH 30 24 20 113 lbs 2D PDF | 3D File
5412 ESBU302424TH 30 24 24 123 lbs 2D PDF | 3D File
5412 ESBU303008TH 30 30 8 98 lbs 2D PDF | 3D File
5412 ESBU303012TH 30 30 12 110 lbs 2D PDF | 3D File
5412 ESBU303608TH 30 36 8 116 lbs 2D PDF | 3D File
5412 ESBU362406TH 36 24 6 90 lbs 2D PDF | 3D File
5412 ESBU362408TH 36 24 8 95 lbs 2D PDF | 3D File
5412 ESBU362410TH 36 24 10 101 lbs 2D PDF | 3D File
5412 ESBU362412TH 36 24 12 107 lbs 2D PDF | 3D File
5412 ESBU362416TH 36 24 16 119 lbs 2D PDF | 3D File
5412 ESBU363006TH 36 30 6 109 lbs 2D PDF | 3D File
5412 ESBU363008TH 36 30 8 116 lbs 2D PDF | 3D File
5412 ESBU363010TH 36 30 10 122 lbs 2D PDF | 3D File
5412 ESBU363012TH 36 30 12 129 lbs 2D PDF | 3D File
5412 ESBU363016TH 36 30 16 142 lbs 2D PDF | 3D File
5412 ESBU363020TH 36 30 20 155 lbs 2D PDF | 3D File
5412 ESBU363608TH 36 36 8 136 lbs 2D PDF | 3D File
5412 ESBU363612TH 36 36 12 150 lbs 2D PDF | 3D File
5412 ESBU422408TH 42 24 8 110 lbs 2D PDF | 3D File
5412 ESBU422412TH 42 24 12 118 lbs 2D PDF | 3D File
5412 ESBU423008TH 42 30 8 133 lbs 2D PDF | 3D File
5412 ESBU423010TH 42 30 10 140 lbs 2D PDF | 3D File
5412 ESBU423012TH 42 30 12 147 lbs 2D PDF | 3D File
5412 ESBU423608TH 42 36 8 156 lbs 2D PDF | 3D File
5412 ESBU423610TH 42 36 10 164 lbs 2D PDF | 3D File
5412 ESBU423612TH 42 36 12 172 lbs 2D PDF | 3D File
5412 ESBU423616TH 42 36 16 187 lbs 2D PDF | 3D File
5412 ESBU482408TH 48 24 8 124 lbs 2D PDF | 3D File
5412 ESBU482412TH 48 24 12 138 lbs 2D PDF | 3D File
5412 ESBU483008TH 48 30 8 150 lbs 2D PDF | 3D File
5412 ESBU483010TH 48 30 10 158 lbs 2D PDF | 3D File
5412 ESBU483608TH 48 36 8 177 lbs 2D PDF | 3D File
5412 ESBU483610TH 48 36 10 185 lbs 2D PDF | 3D File
5412 ESBU483612TH 48 36 12 193 lbs 2D PDF | 3D File
5412 ESBU483616TH 48 36 16 210 lbs 2D PDF | 3D File
5412 ESBU483620TH 48 36 20 226 lbs 2D PDF | 3D File
5412 ESBU602412TH 60 24 12 169 lbs 2D PDF | 3D File
5412 ESBU603608TH 60 36 8 218 lbs 2D PDF | 3D File
5412 ESBU603610TH 60 36 10 227 lbs 2D PDF | 3D File
5412 ESBU603612TH 60 36 12 236 lbs 2D PDF | 3D File
5412 ESBU603616TH 60 36 16 255 lbs 2D PDF | 3D File
5412 ESBU603620TH 60 36 20 274 lbs 2D PDF | 3D File
5412 ESBU723012TH 72 30 12 240 lbs 2D PDF | 3D File
5412 ESBU723016TH 72 30 16 260 lbs 2D PDF | 3D File
5412 ESBU723020TH 72 30 20 280 lbs 2D PDF | 3D File
5412 ESBU723024TH 72 30 24 300 lbs 2D PDF | 3D File
5412 ESBU723612TH 72 36 12 279 lbs 2D PDF | 3D File
5412 ESBU723616TH 72 36 16 301 lbs 2D PDF | 3D File
No 3D model available.

Related Products

Related products

Copyright © EXM Manufacturing 1975 – 2025. All Rights Reserved

    Your Cart
    Your cart is emptyReturn to Home
    Continue Browsing
