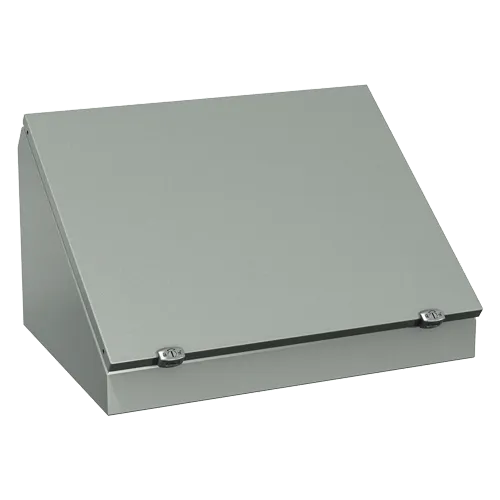

The 1412 CSE series is used indoors or outdoors where the enclosures may be subject to hosing or water coming from any direction and for protection against dust, dirt or oil splashing.
| Catalog Number | Dimensions | Ship Weight | Downloads | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 1412 CSE080807 | 8 | 8 | 7.281 | 8 lbs | 2D PDF | Zip Archive |
| 1412 CSE081207 | 8 | 12 | 7.281 | 10 lbs | 2D PDF | Zip Archive |
| 1412 CSE081607 | 8 | 16 | 7.281 | 13 lbs | 2D PDF | Zip Archive |
| 1412 CSE082007 | 8 | 20 | 7.281 | 16 lbs | 2D PDF | Zip Archive |
| 1412 CSE121209 | 12 | 12 | 9.562 | 15 lbs | 2D PDF | Zip Archive |
| 1412 CSE121609 | 12 | 16 | 9.562 | 18 lbs | 2D PDF | Zip Archive |
| 1412 CSE122009 | 12 | 20 | 9.562 | 22 lbs | 2D PDF | Zip Archive |
| 1412 CSE122409 | 12 | 24 | 9.562 | 26 lbs | 2D PDF | Zip Archive |
| 1412 CSE161611 | 16 | 16 | 11.875 | 22 lbs | 2D PDF | Zip Archive |
| 1412 CSE162011 | 16 | 20 | 11.875 | 27 lbs | 2D PDF | Zip Archive |
| 1412 CSE162411 | 16 | 24 | 11.875 | 32 lbs | 2D PDF | Zip Archive |
| 1412 CSE163011 | 16 | 30 | 11.875 | 39 lbs | 2D PDF | Zip Archive |
| 1412 CSE163611 | 16 | 36 | 11.875 | 45 lbs | 2D PDF | Zip Archive |
| 1412 CSE203013 | 20 | 30 | 14.187 | 49 lbs | 2D PDF | Zip Archive |
| 1412 CSE202413 | 20 | 24 | 14.187 | 42 lbs | 2D PDF | Zip Archive |
| 1412 CSE202013 | 20 | 20 | 14.187 | 36 lbs | 2D PDF | Zip Archive |
