Consoles

NEMA Rating RoHS CSA Underwriter Laboratories CE mark

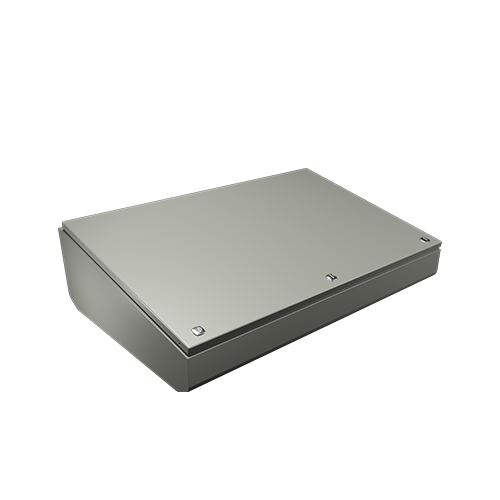

Type 12, 13 | Writing desk for modular consoles with frontal access

6500 WDFD
IP 54NEMA 12, 13Mild Steel painted RAL7035
Save
Remove From Saved List
Added to Saved List

See your favorite product on Saved List

View My Saved List Close
BoxCad Customize it here

The 6500 WDFD series is used for indoor use and to protect the equipment against ingress of oil, dust, dirt and water. Use in conjunction with the 6500 MCOFD to create a console unit.

  • Made of high quality steel, with continuously welded corner seams.
  • The cover is secured by ¼ turn locks.
  • A robotically poured-in-place seamless gasket ensures a durable seal.
  • The enclosure has die cast hinges, with stainless steel captive pins.
  • The body’s construction is designed to prevent dripping water from entering the enclosure.
  • Paint color: RAL7035 textured light gray.
  • CSA Certified.
  • UL Listed.
  • NEMA 12, 13.
  • IEC 60529 IP55.
Catalog Number Dimensions Ship Weight Downloads
A B C
6500 WDFD0604 24 16 44 lbs 2D PDF | Zip Archive
6500 WDFD0804 31 16 52 lbs 2D PDF | Zip Archive
6500 WDFD1004 40 16 63 lbs 2D PDF | Zip Archive
6500 WDFD1204 47 16 73 lbs 2D PDF | Zip Archive
6500 WDFD1604 63 16 92 lbs 2D PDF | Zip Archive
