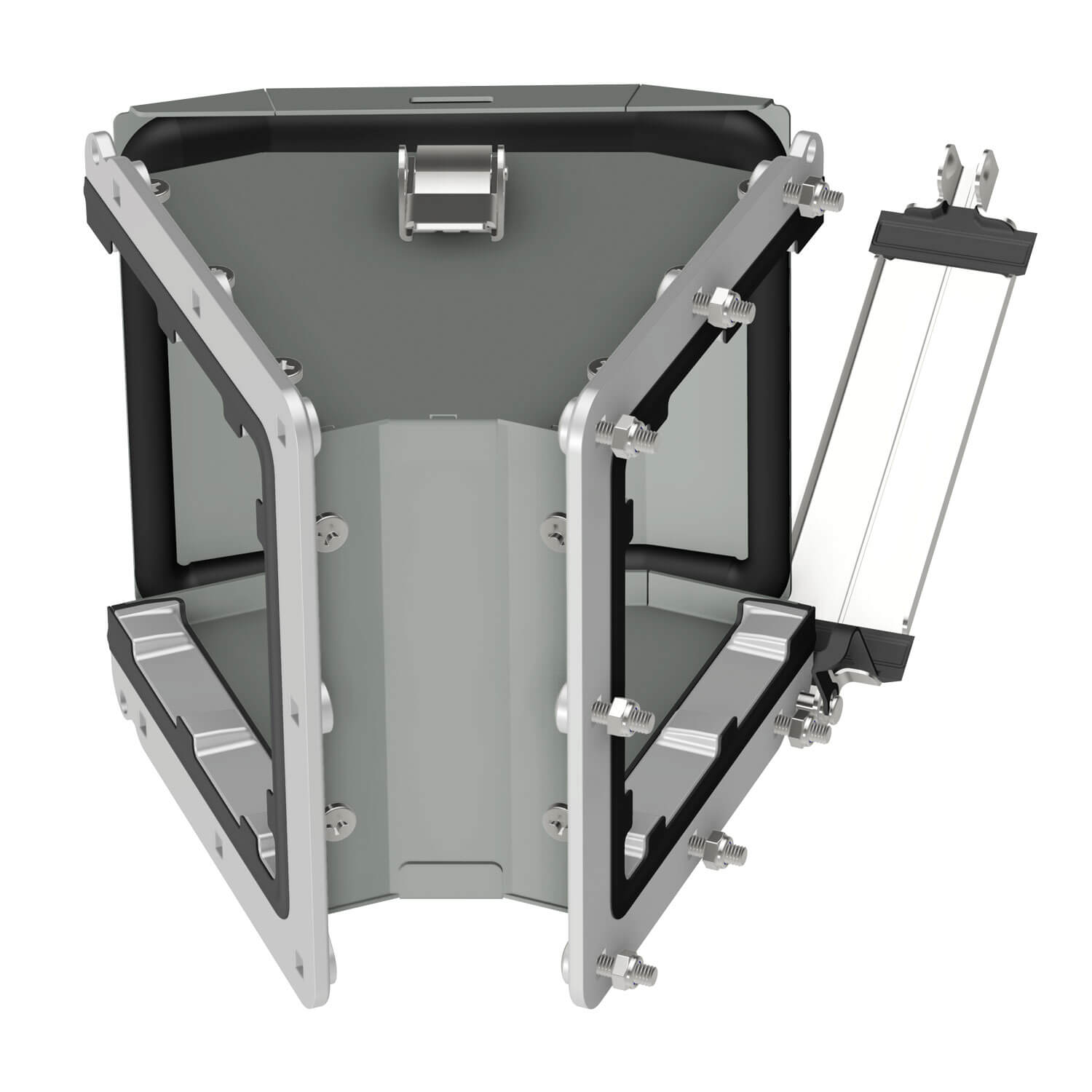

The re-designed 1500 series water tight lay-in wireway is a complete system that permits fast and easy installation of multiple wire runs. Each section and accessory include one side completely opened to allow lay-in of wires instead of being restricted to pull through. The wireways are made high quality 14 GA steel complete with bolted flanges. The covers are hinged and several quick release draw pull latches assure a tight closing. A high quality, poured-in-place, seamless gasket is present on the covers. The enhanced flange construction now integrates a gasket embedded directly onto the flange itself. Components are finished with heat fused powder paint, electro-statically applied on a pretreated base. Finish is ANSI/ASA61 smooth gray.
CSA Certified / UL Listed NEMA/EEMAC 4-12 / IP66
| Catalog Number | Dimensions | Ship Weight | Downloads | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 1500 EO12092 | 12 | 6 | 6 | N/A | 2D PDF | 3D File |
| 1500 EO4092 | 4 | 4 | 5 | N/A | 2D PDF | 3D File |
| 1500 EO6047 | 6 | 6 | 6 | N/A | 2D PDF | 3D File |
| 1500 EO6092 | 6 | 6 | 6 | N/A | 2D PDF | 3D File |
| 1500 EO8047 | 8 | 8 | 7 | N/A | 2D PDF | 3D File |
| 1500 EO8092 | 8 | 8 | 7 | N/A | 2D PDF | 3D File |
| 1500 EO12047 | 12 | 6 | 6 | N/A | 2D PDF | 3D File |
| 1500 EO2047 | 2,5 | 2,5 | 4,25 | N/A | 2D PDF | 3D File |
| 1500 EO2092 | 2,5 | 2,5 | 4,25 | N/A | 2D PDF | 3D File |
| 1500 EO4047 | 4 | 4 | 5 | N/A | 2D PDF | 3D File |
