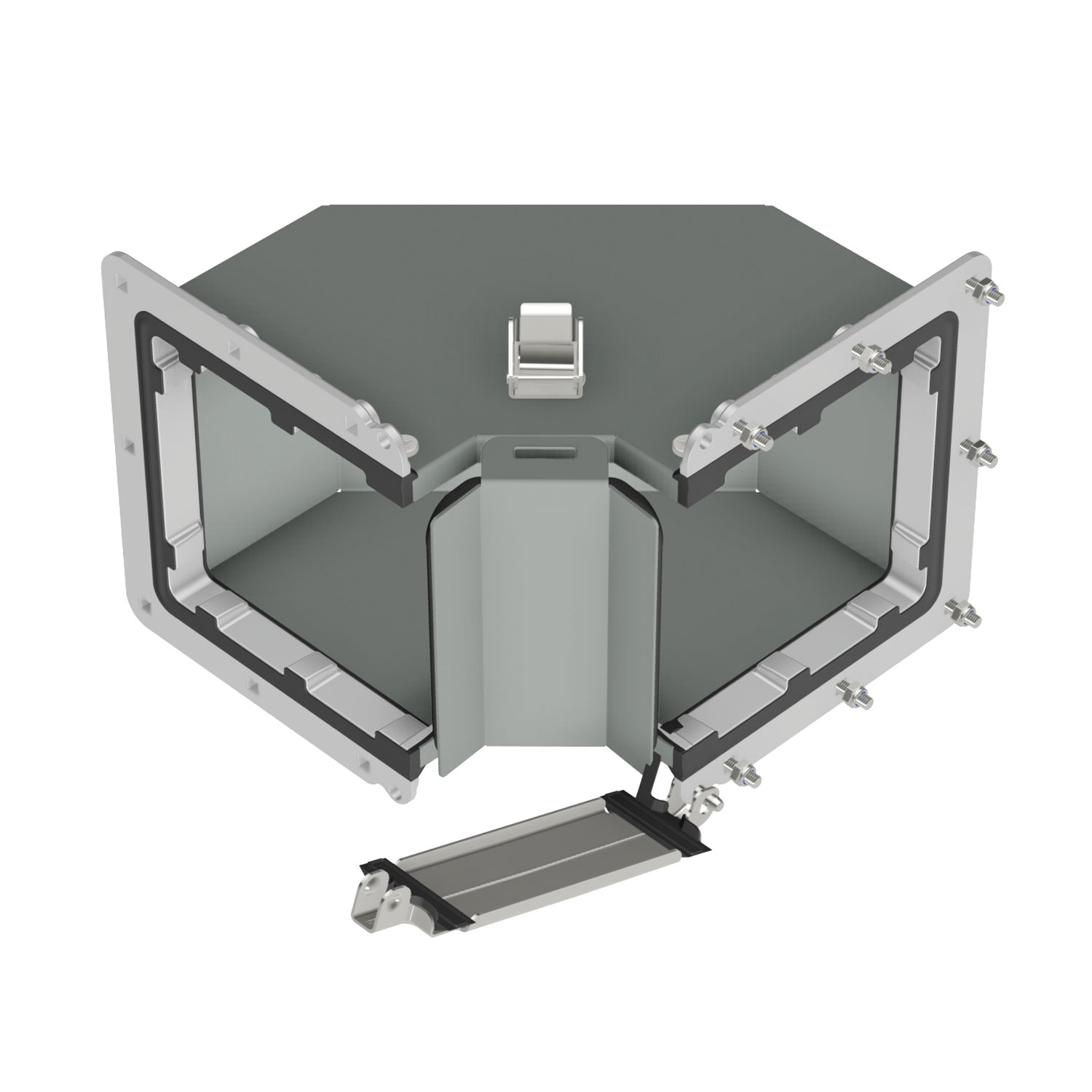

The 1500 EI (inside opening) elbow for 1500 series lay-in ducts are used indoors for protection against dirt, dust and oil.
Catalog Number | Dimensions | Ship Weight | Downloads | ||
---|---|---|---|---|---|
A | B | C | |||
1500 EI12091 | 12 | 6 | 6 | N/A | 2D PDF | Zip Archive |
1500 EI6091 | 6 | 6 | 6 | N/A | 2D PDF | Zip Archive |
1500 EI8091 | 8 | 8 | 7 | N/A | 2D PDF | Zip Archive |
1500 EI2091 | 2,5 | 2,5 | 4,25 | N/A | 2D PDF | Zip Archive |
1500 EI4091 | 4 | 4 | 5 | N/A | 2D PDF | Zip Archive |
1500 EI4045 | 4 | 4 | 5 | N/A | 2D PDF | Zip Archive |
1500 EI2045 | 2,5 | 2,5 | 4,25 | N/A | 2D PDF | Zip Archive |
1500 EI8045 | 8 | 8 | 7 | N/A | 2D PDF | Zip Archive |
1500 EI6045 | 6 | 6 | 6 | N/A | 2D PDF | Zip Archive |
1500 EI12045 | 12 | 6 | 6 | N/A | 2D PDF | Zip Archive |
