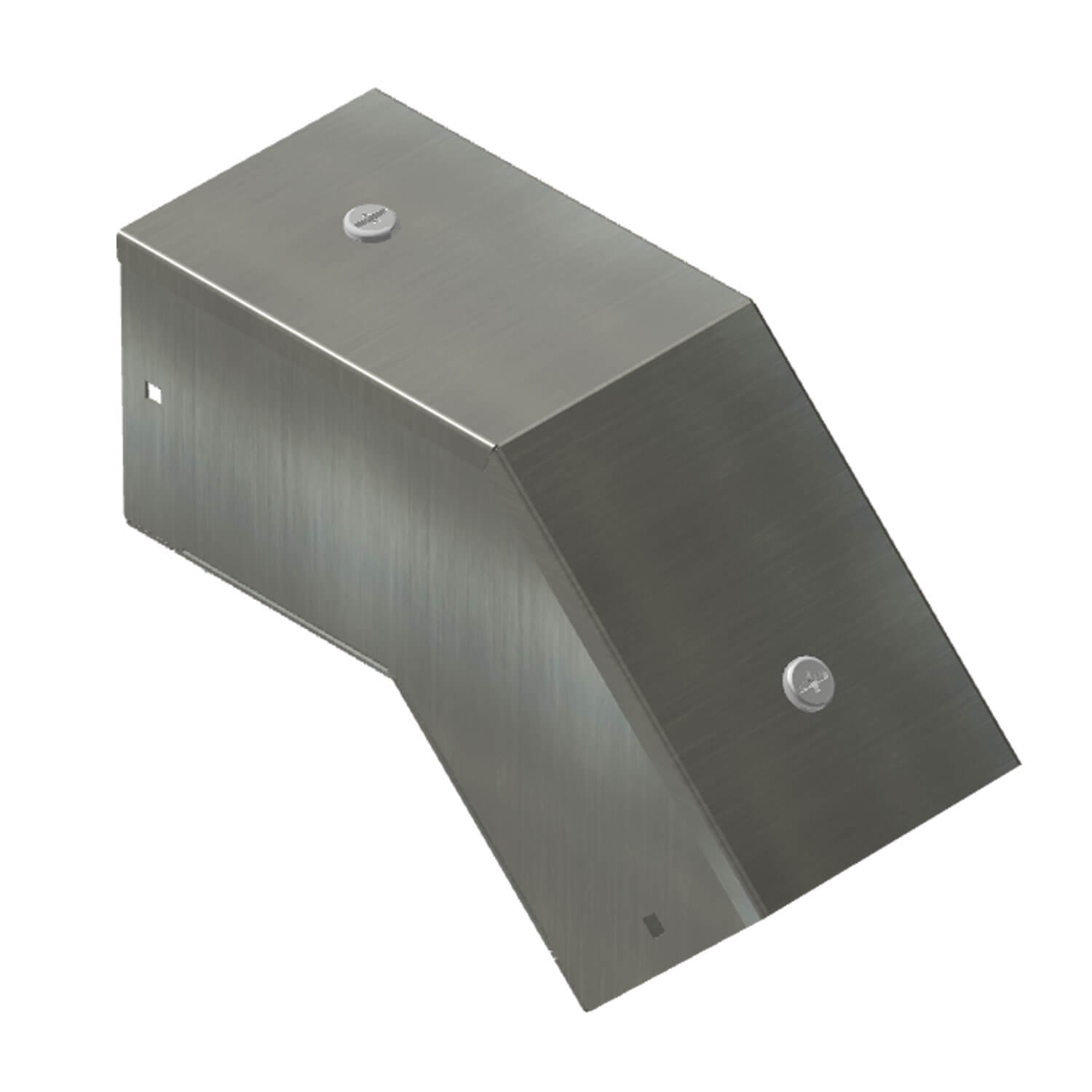

The 1150 series lay-in ducts are made of high quality code gauge stainless steel, and are designed to permit fast and easy installation of multiple wire runs. The covers are secured by quarter-turn latches. All accessories for a complete system, such as 45° and 90° elbows, offsets, T’s, and reducers, have removable covers. Joiner are linked by carriage bolts and anti-vibration nuts which can be installed using minimum tooling. All of the components are unpainted and brushed smooth #4.
UL Listed NEMA/EEMAC 1 / IP30
| Catalog Number | Dimensions | Ship Weight | Downloads | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 1150 EO6092 | 6 | 6 | 11 | N/A | 2D PDF | 3D File |
| 1150 EO6092P | 6 | 6 | 11 | N/A | 2D PDF | 3D File |
| 1150 EO6092Q | 6 | 6 | 11 | N/A | 2D PDF | 3D File |
| 1150 EO6092QP | 6 | 6 | 11 | N/A | 2D PDF | 3D File |
| 1150 EO6047 | 6 | 6 | 11 | N/A | 2D PDF | 3D File |
| 1150 EO6047P | 6 | 6 | 11 | N/A | 2D PDF | 3D File |
| 1150 EO6047Q | 6 | 6 | 11 | N/A | 2D PDF | 3D File |
| 1150 EO6047QP | 6 | 6 | 11 | N/A | 2D PDF | 3D File |
| 1150 EO4692 | 4 | 6 | 11 | N/A | 2D PDF | 3D File |
| 1150 EO4692P | 4 | 6 | 11 | N/A | 2D PDF | 3D File |
| 1150 EO4692Q | 4 | 6 | 11 | N/A | 2D PDF | 3D File |
| 1150 EO4692QP | 4 | 6 | 11 | N/A | 2D PDF | 3D File |
| 1150 EO4647 | 4 | 6 | 11 | N/A | 2D PDF | 3D File |
| 1150 EO4647P | 4 | 6 | 11 | N/A | 2D PDF | 3D File |
| 1150 EO4647Q | 4 | 6 | 11 | N/A | 2D PDF | 3D File |
| 1150 EO4647QP | 4 | 6 | 11 | N/A | 2D PDF | 3D File |
| 1150 EO4092 | 4 | 4 | 9 | N/A | 2D PDF | 3D File |
| 1150 EO4092P | 4 | 4 | 9 | N/A | 2D PDF | 3D File |
| 1150 EO4092Q | 4 | 4 | 9 | N/A | 2D PDF | 3D File |
| 1150 EO4092QP | 4 | 4 | 9 | N/A | 2D PDF | 3D File |
| 1150 EO4047 | 4 | 4 | 9 | N/A | 2D PDF | 3D File |
| 1150 EO4047P | 4 | 4 | 9 | N/A | 2D PDF | 3D File |
| 1150 EO4047Q | 4 | 4 | 9 | N/A | 2D PDF | 3D File |
| 1150 EO4047QP | 4 | 4 | 9 | N/A | 2D PDF | 3D File |
| 1150 EO2092Q | 2 | 2 | 6 | N/A | 2D PDF | 3D File |
| 1150 EO2092QP | 2 | 2 | 6 | N/A | 2D PDF | 3D File |
| 1150 EO2092P | 2 | 2 | 6 | N/A | 2D PDF | 3D File |
| 1150 EO2047QP | 2 | 2 | 6 | N/A | 2D PDF | 3D File |
| 1150 EO2092 | 2 | 2 | 6 | N/A | 2D PDF | 3D File |
| 1150 EO2047Q | 2 | 2 | 6 | N/A | 2D PDF | 3D File |
| 1150 EO2047 | 2 | 2 | 6 | N/A | 2D PDF | 3D File |
| 1150 EO2047P | 2 | 2 | 6 | N/A | 2D PDF | 3D File |
