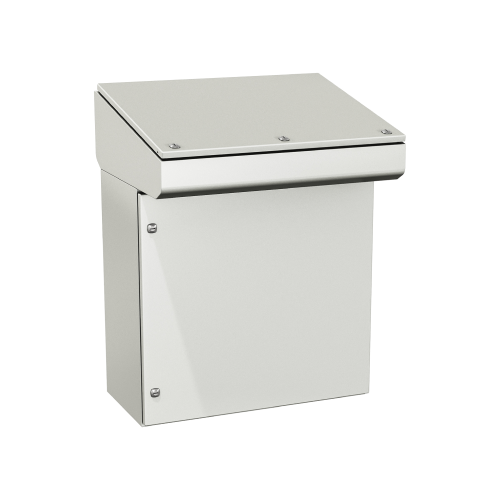

Type 12, 13 | Single door modular console with frontal access, assembled with writing desk

Consoles

6500 MCWFD

IP 54NEMA 12, 13Mild Steel painted RAL7035Single Door

Dimension (inch height x width x depth)

The 6500 MCWFD is used for indoor use and to protect the equipment against ingress of oil, dust, dirt and water.

Made of high quality steel, with continuously welded corner seams.
The cover is secured by ¼ turn locks.
A robotically poured-in-place seamless gasket ensures a durable seal.
The enclosure has die cast hinges, with stainless steel captive pins.
The body’s construction is designed to prevent dripping water from entering the enclosure.
Paint color: RAL7035 textured light gray.
CSA Certified.
UL Listed.
NEMA 12, 13.
IEC 60529 IP55.

For more information, see 6500 MCOFD, 6500 MWFD.

Catalog Number	Dimensions			Ship Weight	Downloads
	A	B	C
6500 MCWFD0604		24	16	134 lbs	2D PDF \| 3D File
6500 MCWFD0804		31	16	152 lbs	2D PDF \| 3D File

No 3D model available.
