NEMA Rating RoHS CSA Underwriter Laboratories CE mark

Type 12, 13 – Jonction box

1500 JB
Miscellaneous FittingsStraight Section
Added to Saved List

See your favorite product on Saved List

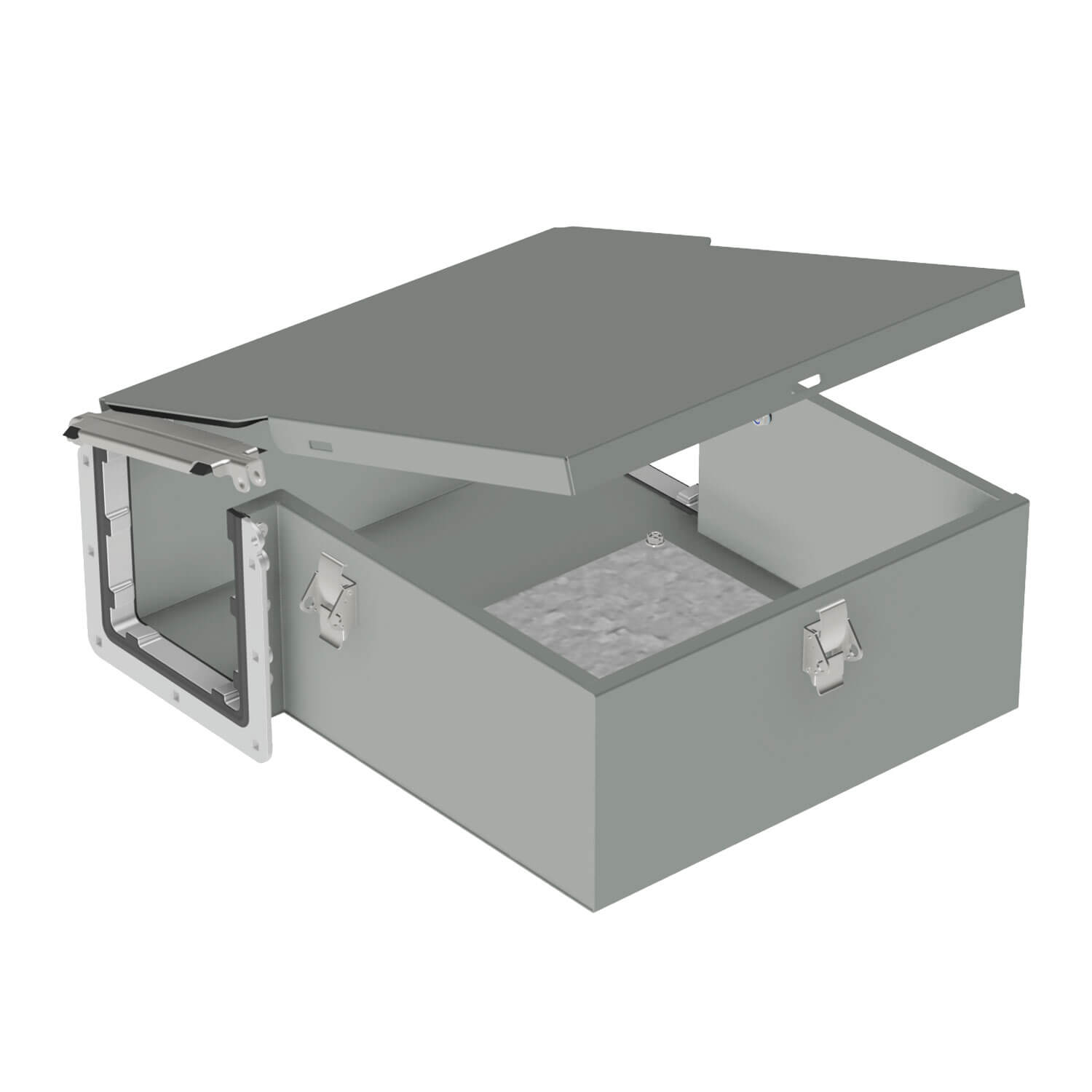

The 1500 JB junction box has flanges to connect with the 1500 series lay-in ducts. They are used indoors for protection against dirt, dust and oil.

  • Made of high quality code gauge steel.
  • The cover is secured by pull-down padlockable hasps.
  • Junction boxes are finished with heat fused powder paint, electro-statically applied on a pretreated base.
  • Paint color : ANSI 61 smooth gray.
  • CSA Certified.
  • UL Listed.
  • NEMA / EEMAC 12-13.
  • IP55.
Catalog Number Dimensions Ship Weight Downloads
A B C
1500 JB6066 6 6 16 N/A 2D PDF | Zip Archive
1500 JB2066 8 8 18 N/A 2D PDF | Zip Archive
1500 JB4066 4 4 14 N/A 2D PDF | Zip Archive
1500 RD4402-2 2.5 2.5 12 N/A 2D PDF | Zip Archive
