Consoles

NEMA Rating RoHS CSA Underwriter Laboratories CE mark

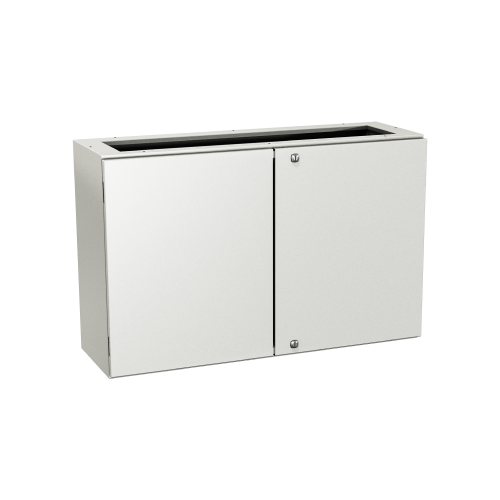

Type 12, 13 | Double door modular console base with frontal access

6500 MCODDFD
IP 54NEMA 12, 13Mild Steel painted RAL7035Double Door
Save
Remove From Saved List
Added to Saved List

See your favorite product on Saved List

View My Saved List Close
BoxCad Customize it here

The 6500 MCODDFD series is used for indoor use and to protect the equipment against ingress of oil, dust, dirt and water. Use in conjunction with the 6500 MWDFD/ MTUFD/WDFD to create a console unit.

  • Made of high quality steel, with continuously welded corner seams.
  • The cover is secured by ¼ turn locks.
  • A robotically poured-in-place seamless gasket ensures a durable seal.
  • The enclosure has die cast hinges, with stainless steel captive pins.
  • The body’s construction is designed to prevent dripping water from entering the enclosure.
  • The depth of the interior panel is adjustable.
  • Paint color: RAL7035 textured light gray.
  • CSA Certified.
  • UL Listed.
  • NEMA 12, 13.
  • IEC 60529 IP55.
Catalog Number Dimensions Ship Weight Downloads
A B C
6500 MCODDFD1004 40 16 115 lbs 2D PDF | 3D File
6500 MCODDFD1204 47 16 143 lbs 2D PDF | 3D File
6500 MCODDFD1604 63 16 180 lbs 2D PDF | 3D File
No 3D model available.
