Type 12, 13 | Stainless steel pedestal, protection against corrosion

Consoles

1500 PESS

IP 54NEMA 12, 13

Material

Dimension (inch height x width x depth)

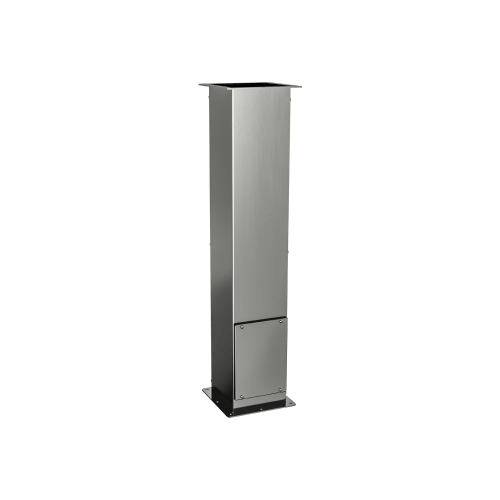

The 1500 PESS series is used to floor mount 1500 CSS / CSSD / CSSE consolets or other types of enclosures.

Made of high quality 304 stainless steel, with continuously welded corner seams.
Inside flanges and sealing gaskets are provided.
Enclosure and base mounting holes are provided.
Wiring can be pulled through the pedestal.
Exterior is unpainted with a #4 brushed finish.
CSA Certified.
UL Listed.
NEMA 12, 13.
IEC 60529 IP55.

Catalog Number	Dimensions			Ship Weight	Downloads
	A	B	C
1500 PESS060635	6	6	35	24 lbs	2D PDF \|
1500 PESS040435	4	4	35	18 lbs	2D PDF \|
1500 PESS040435P	4	4	35	18 lbs	2D PDF \|
1500 PESS060635P	6	6	35	24 lbs	2D PDF \|

No 3D model available.
