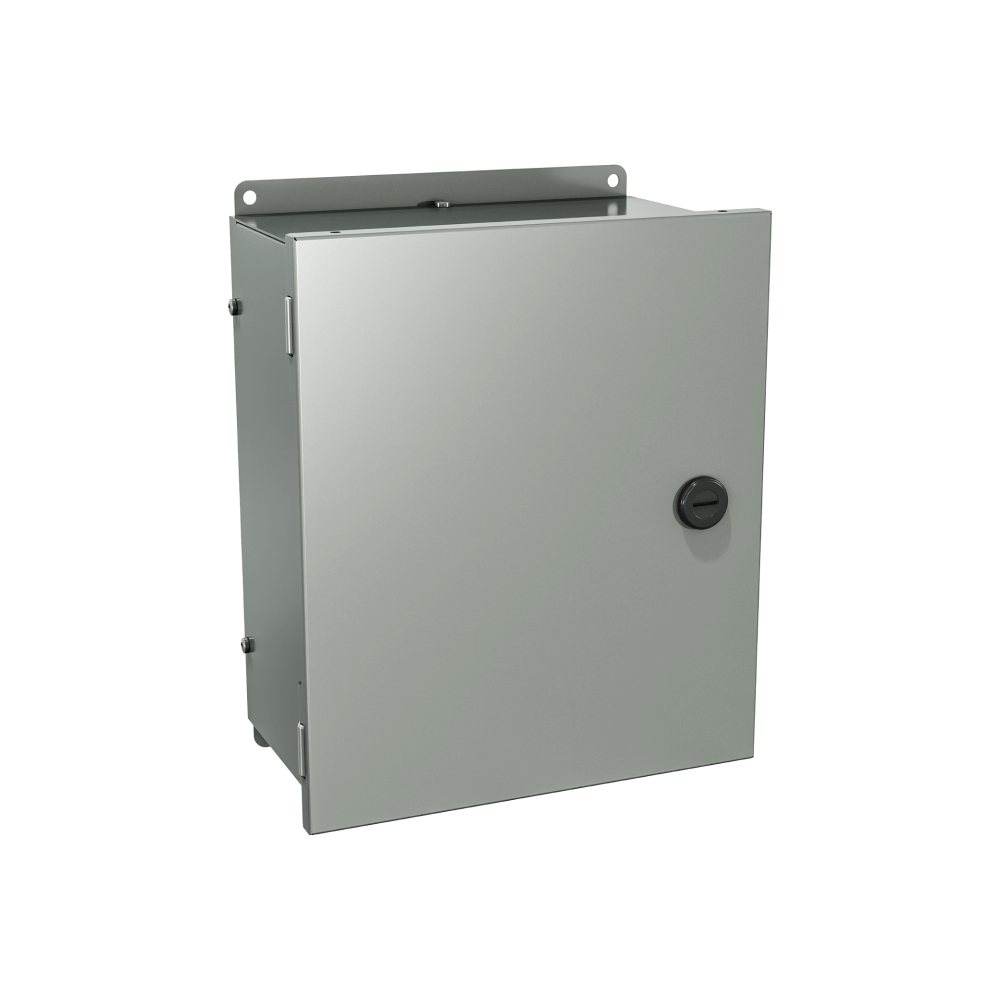

The 1100 CM are used where the control installation does not require a high degree of protection (such as watertight or dust tight), but where a quality enclosure is needed. Boxes and covers are made of high quality code gauge steel. The box consists of three parts : base, center and cover, which are assembled with self-tapping screws. The base is offset to allow the direct mounting of instruments. The enclosures feature die cast hinges, which are bound to the cover by an exclusive concealed hinge pin system. The covers are interchangeable and can be removed by unfastening the anti-vibration lock nuts. Enclosures are closed with a ¼ turn lock that ensures tight positive door to box contact and can be interchanged with an optional key lock (880 SCQCOMK). Four external mounting holes are provided. Enclosures are finished with ANSI/ASA 61 smooth gray heat fused powder paint, electro-statically applied on a pretreated base.
CSA Certified / UL Listed NEMA/EEMAC 1 / IP30
| Catalog Number | Dimensions | Ship Weight | Downloads | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 1100 CM080608 | 8 | 6 | 8 | 7 lbs | 2D PDF | 3D File |
| 1100 CM060604 | 6 | 6 | 4 | 4 lbs | 2D PDF | 3D File |
| 1100 CM080604 | 8 | 6 | 4 | 6 lbs | 2D PDF | 3D File |
| 1100 CM080606 | 8 | 6 | 6 | 6 lbs | 2D PDF | 3D File |
| 1100 CM080804 | 8 | 8 | 4 | 6 lbs | 2D PDF | 3D File |
| 1100 CM100804 | 10 | 8 | 4 | 8 lbs | 2D PDF | 3D File |
| 1100 CM100806 | 10 | 8 | 6 | 9 lbs | 2D PDF | 3D File |
| 1100 CM100808 | 10 | 8 | 8 | 10 lbs | 2D PDF | 3D File |
| 1100 CM101004 | 10 | 10 | 4 | 8 lbs | 2D PDF | 3D File |
| 1100 CM121004 | 12 | 10 | 4 | 11 lbs | 2D PDF | 3D File |
| 1100 CM121006 | 12 | 10 | 6 | 12 lbs | 2D PDF | 3D File |
| 1100 CM121008 | 12 | 10 | 8 | 13 lbs | 2D PDF | 3D File |
| 1100 CM121204 | 12 | 12 | 4 | 11 lbs | 2D PDF | 3D File |
| 1100 CM121206 | 12 | 12 | 6 | 13 lbs | 2D PDF | 3D File |
| 1100 CM161204 | 16 | 12 | 4 | 15 lbs | 2D PDF | 3D File |
| 1100 CM161206 | 16 | 12 | 6 | 16 lbs | 2D PDF | 3D File |
| 1100 CM161208 | 16 | 12 | 8 | 18 lbs | 2D PDF | 3D File |
| 1100 CM201604 | 20 | 16 | 4 | 22 lbs | 2D PDF | 3D File |
| 1100 CM201606 | 20 | 16 | 6 | 23 lbs | 2D PDF | 3D File |
| 1100 CM201608 | 20 | 16 | 8 | 25 lbs | 2D PDF | 3D File |
| 1100 CM242004 | 24 | 20 | 4 | 30 lbs | 2D PDF | 3D File |
| 1100 CM242006 | 24 | 20 | 6 | 31 lbs | 2D PDF | 3D File |
| 1100 CM242008 | 24 | 20 | 8 | 34 lbs | 2D PDF | 3D File |
