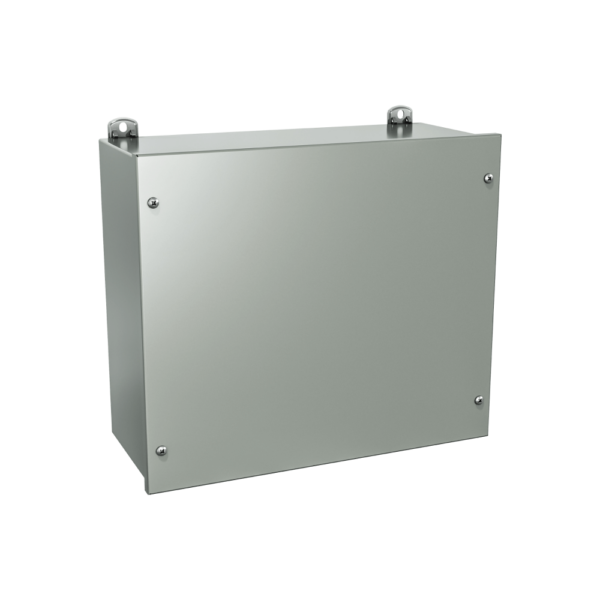

The 1300 DWPF series is used in exterior or interior installations where water infiltration is a problem.This enclosure is designed to protect the equipment against rain, sleet and snow.
| Catalog Number | Dimensions | Ship Weight | Downloads | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 1300 DWPF040403 | 4 | 4 | 3 | 2 lbs | 2D PDF | Zip Archive |
| 1300 DWPF060403 | 6 | 4 | 3 | 3 lbs | 2D PDF | Zip Archive |
| 1300 DWPF060404 | 6 | 4 | 4 | 5 lbs | 2D PDF | Zip Archive |
| 1300 DWPF060604 | 6 | 6 | 4 | 5 lbs | 2D PDF | Zip Archive |
| 1300 DWPF060605 | 6 | 6 | 5 | 7 lbs | 2D PDF | Zip Archive |
| 1300 DWPF060606 | 6 | 6 | 6 | 7 lbs | 2D PDF | Zip Archive |
| 1300 DWPF080604 | 8 | 6 | 4 | 6 lbs | 2D PDF | Zip Archive |
| 1300 DWPF080605 | 8 | 6 | 5 | 14 lbs | 2D PDF | Zip Archive |
| 1300 DWPF080606 | 8 | 6 | 6 | 14 lbs | 2D PDF | Zip Archive |
| 1300 DWPF080804 | 8 | 8 | 4 | 8 lbs | 2D PDF | Zip Archive |
| 1300 DWPF080806 | 8 | 8 | 6 | 12 lbs | 2D PDF | Zip Archive |
| 1300 DWPF081004 | 8 | 10 | 4 | 10 lbs | 2D PDF | Zip Archive |
| 1300 DWPF100804 | 10 | 8 | 4 | 10 lbs | 2D PDF | Zip Archive |
| 1300 DWPF100806 | 10 | 8 | 6 | 12 lbs | 2D PDF | Zip Archive |
| 1300 DWPF101004 | 10 | 10 | 4 | 14 lbs | 2D PDF | Zip Archive |
| 1300 DWPF101006 | 10 | 10 | 6 | 14 lbs | 2D PDF | Zip Archive |
| 1300 DWPF101205 | 10 | 12 | 5 | 8 lbs | 2D PDF | Zip Archive |
| 1300 DWPF120604 | 12 | 6 | 4 | 14 lbs | 2D PDF | Zip Archive |
| 1300 DWPF121004 | 12 | 10 | 4 | 18 lbs | 2D PDF | Zip Archive |
| 1300 DWPF121008 | 12 | 10 | 8 | 16 lbs | 2D PDF | Zip Archive |
| 1300 DWPF121204 | 12 | 12 | 6 | 6 lbs | 2D PDF | Zip Archive |
| 1300 DWPF121206 | 12 | 12 | 6 | 18 lbs | 2D PDF | Zip Archive |
| 1300 DWPF121406 | 12 | 14 | 6 | 19 lbs | 2D PDF | Zip Archive |
| 1300 DWPF140806 | 14 | 8 | 6 | 10 lbs | 2D PDF | Zip Archive |
| 1300 DWPF141206 | 14 | 12 | 6 | 19 lbs | 2D PDF | Zip Archive |
| 1300 DWPF141208 | 14 | 12 | 8 | 20 lbs | 2D PDF | Zip Archive |
| 1300 DWPF141606 | 14 | 16 | 6 | 23 lbs | 2D PDF | Zip Archive |
| 1300 DWPF161006 | 16 | 10 | 6 | 15 lbs | 2D PDF | Zip Archive |
| 1300 DWPF161206 | 16 | 12 | 6 | 24 lbs | 2D PDF | Zip Archive |
| 1300 DWPF161208 | 16 | 12 | 8 | 26 lbs | 2D PDF | Zip Archive |
| 1300 DWPF161406 | 16 | 14 | 6 | 23 lbs | 2D PDF | Zip Archive |
| 1300 DWPF161408 | 16 | 14 | 8 | 24 lbs | 2D PDF | Zip Archive |
| 1300 DWPF161410 | 16 | 14 | 10 | 26 lbs | 2D PDF | Zip Archive |
| 1300 DWPF161606 | 16 | 16 | 6 | 25 lbs | 2D PDF | Zip Archive |
| 1300 DWPF181806 | 18 | 18 | 6 | 34 lbs | 2D PDF | Zip Archive |
| 1300 DWPF241806 | 24 | 18 | 6 | 46 lbs | 2D PDF | Zip Archive |
| 1300 DWPF242406 | 24 | 24 | 6 | 53 lbs | 2D PDF | Zip Archive |
| 1300 DWPF242408 | 24 | 24 | 8 | 58 lbs | 2D PDF | Zip Archive |
| 1300 DWPF242410 | 24 | 24 | 10 | 62 lbs | 2D PDF | Zip Archive |
| 1300 DWPF242412 | 24 | 24 | 12 | 68 lbs | 2D PDF | Zip Archive |
| 1300 DWPF303008 | 30 | 30 | 8 | 72 lbs | 2D PDF | Zip Archive |
| 1300 DWPF363612 | 36 | 36 | 12 | 100 lbs | 2D PDF | Zip Archive |
