Heaters

Foot-mount Fan Heater 1200W

CR 0306
1200WFoot Mount Heater
Save
Remove From Saved List
Added to Saved List

See your favorite product on Saved List

View My Saved List Close

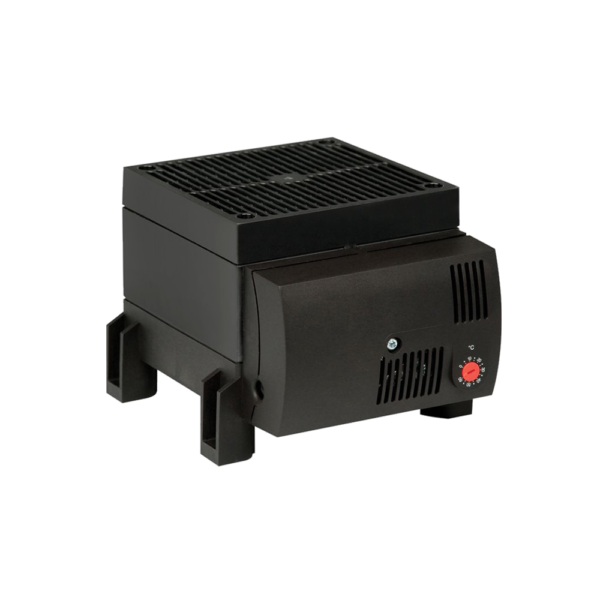

The compact CS 030 high performance fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures. This fan heater is available with an optional integrated thermostat for temperature control. The CS 030 was designed as a stationary unit for the bottom of the enclosure.

For panel or DIN rail mount, the CS 130 fan heater is recommended.

  • Heating element PTC resistor – temperature limiting
  • Temperature safety cut-out to protect against overheating in case of fan failure, automatic reset
  • Axial fan, ball bearing airflow 160m³/h, free flow service life 50,000h at +25°C (+77°F)
  • Air flow, free blowing 94 cfm (160m³/h)
  • Connection 2-pole terminal AWG 16 max. (1.5mm²) with strain relief, clamping torque 0.8Nm max.
  • Housing plastic, UL 94V-0, black
  • Mounting screw fixing (M5)
  • Fitting position vertical airflow (air outlet up)
  • Operating / Storage temperature -49 to 158°F (-45 to 70°C)
  • Operating / Storage humidity max. 90 %RH (non-condensing)

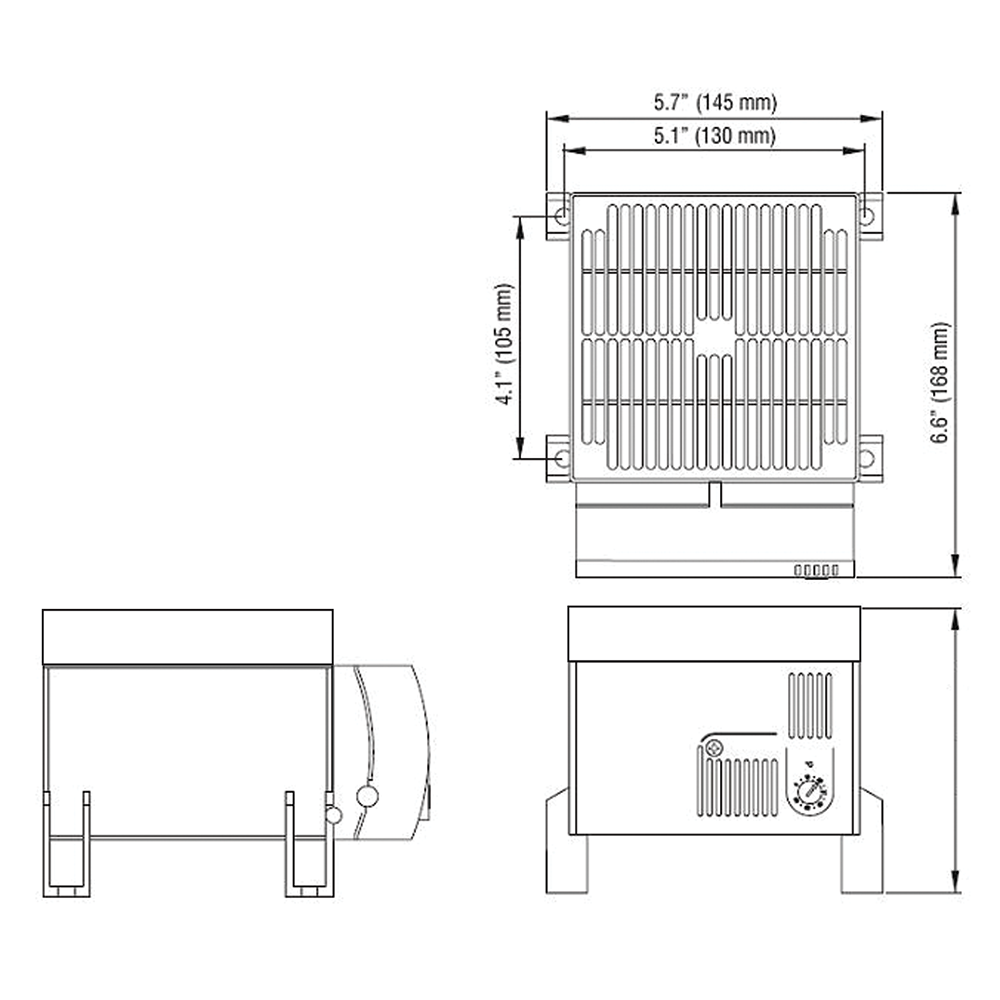

  • Dimensions 4.7 x 5.7 x 6.6” (168 x 145 x 120mm)
  • Weight approx. 2.6 lbs. (1.2kg)
  • Protection class / Protection type II (double insulated) / IP20
