Fan Heater 100 – 400W

HVL 031
Fan Heater
Added to Saved List

See your favorite product on Saved List

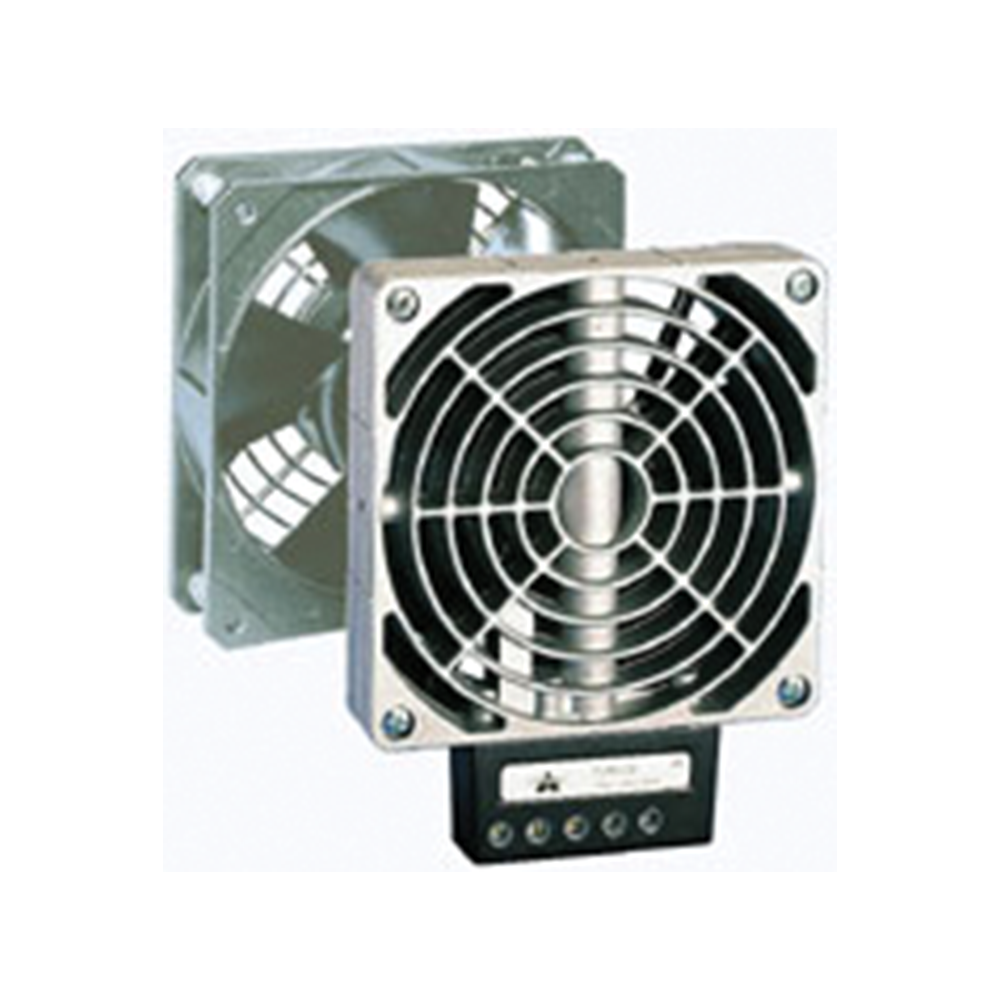

The compact HVL 031 high-performance fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures. For large OEM use, this fan heater can also be provided without the fan, in which case the OEM/customer must provide a fan which meets the minimum airflow requirements.

  • Heating element high performance cartridge
  • Overheat protection built-in temperature limiter
  • Heater body die-cast aluminum, glass bead finish
  • Connection 3-pole terminal AWG 14 max. (2.5mm²), torque 0.8Nm max..
  • Connection housing plastic, UL 94V-0, black

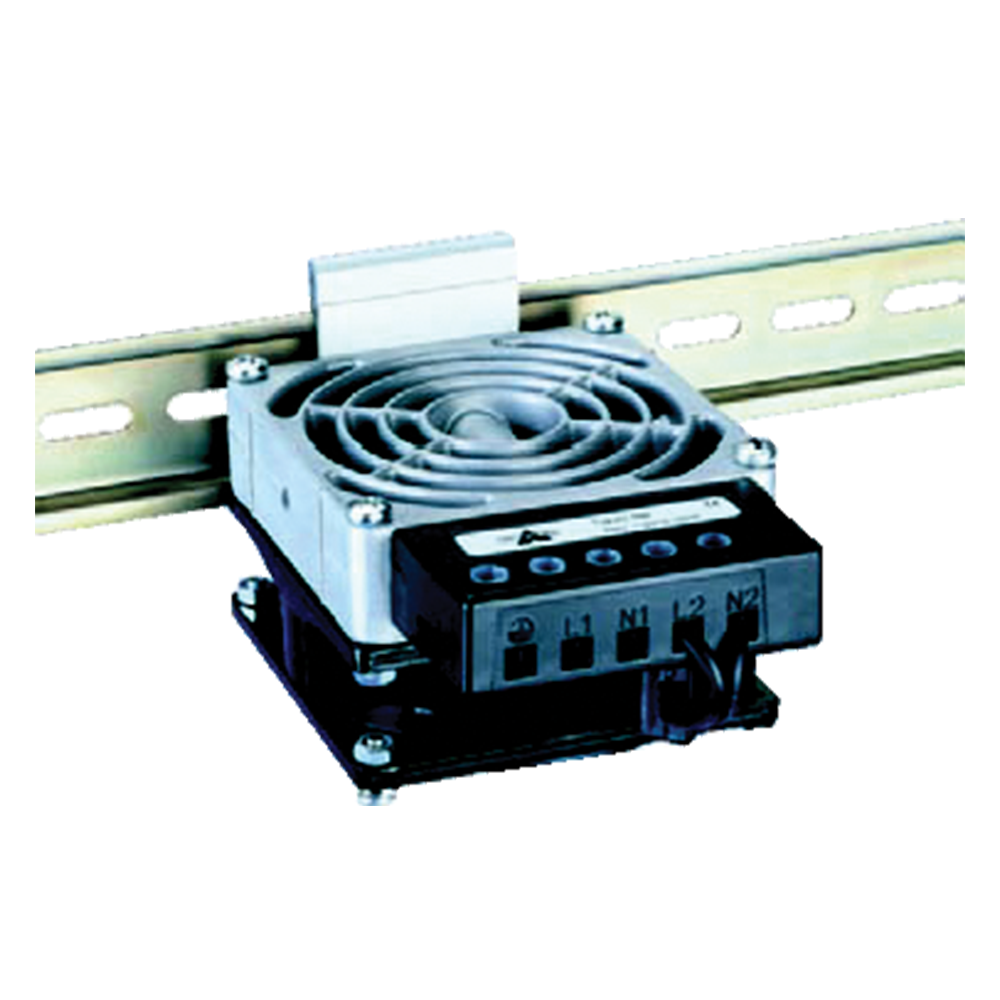

  • Mounting clip for 35mm DIN rail, EN 60715
  • Mounting position horizontal
  • Operating / Storage temperature -49 to +158°F (-45 to +70°C)
  • Protection class / Protection type I (grounded) / IP20
  • Axial fan, ball bearing service life 50,000h at 77°F (25°C)
  • Air flow, free blowing see table below
  • Axial fan connection 2-pole terminal AWG 14 max. (2.5mm²), terminals L2/N2
  • Approvals UL File No. E187294 (all), VDE (230VAC only)
