Non Métallique

NEMA Rating RoHS CSA Underwriter Laboratories CE mark

Type 4X | Boîtier en Fibre de Verre avec Couvercle Vissé, Protection contre la Corrosion

5412 ESFRH
IP 66NEMA 4XFibre de VerreInner PanelFibre de Verre
Ajoutées à la liste

Voir votre produit préféré sur la liste enregistrée

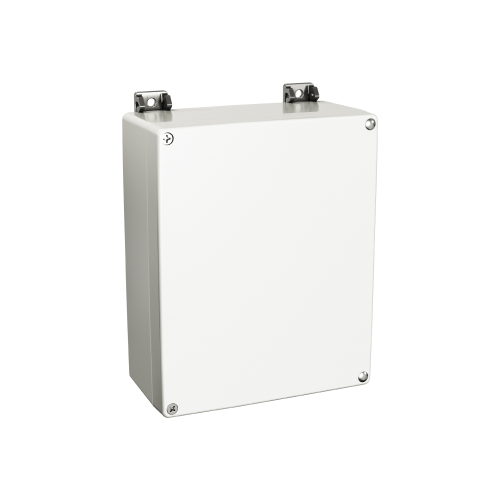

The 5412 ESFRH water, oil & dust tight enclosures are used indoors or outdoors, in areas where a corrosion problem exists or where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. The 5412 ESFRH is aesthetically designed and exclusively produced by EXM, and is made of a SMC polyester fiberglass composite. Fiberglass is the material of choice for numerous industrial applications. Its electrical, chemical and physical properties allow reinforced fiberglass to be used in many environments, and for a wide variety of applications. A high quality, robotically poured-in-place, seamless gasket ensures a complete NEMA 4X seal. The cover screws are made of stainless steel. The concealed hinges are removable and allow a 180° door opening. The hinges for the 5412 ESFRH can be placed on any side of the enclosure, and permit right, left, top or bottom door opening. The mounting feet can be installed at 0° or 90°, to be used either at the top and bottom of the box or at its sides. The 5412 ESFRH enclosures come with a JIC standard 14 GA galvanized inner panel, which can be interchanged with the panels used in ESCH enclosures. Inner panels and mounting feet are secured by anti-vibration screws.

CSA-US Certified NEMA/EEMAC 4X / IP66



  • Made of UV resistant fiberglass.
  • The cover is secured by screws.
  • Wall mounting feet kit are provided.
  • Enclosure color: RAL 7035.
  • CSA-US certified.
  • NEMA 4X.
  • IEC 60529 IP66.
Catalog Number Dimensions Ship Weight Downloads
A B C
5412 ESFRH040403 4 4 3 1 lbs 2D PDF | 3D File
5412 ESFRH040604 4 6 4 2 lbs 2D PDF | 3D File
5412 ESFRH060404 6 4 4 2 lbs 2D PDF | 3D File
5412 ESFRH060604 6 6 4 2 lbs 2D PDF | 3D File
5412 ESFRH060804 6 8 4 2 lbs 2D PDF | 3D File
5412 ESFRH080604 8 6 4 2 lbs 2D PDF | 3D File
5412 ESFRH080804 8 8 4 3 lbs 2D PDF | 3D File
5412 ESFRH081004 8 10 4 4 lbs 2D PDF | 3D File
5412 ESFRH081006 8 10 6 6 lbs 2D PDF | 3D File
5412 ESFRH100804 10 8 4 4 lbs 2D PDF | 3D File
5412 ESFRH100806 10 8 6 6 lbs 2D PDF | 3D File
5412 ESFRH101205 10 12 5 7 lbs 2D PDF | 3D File
5412 ESFRH121005 12 10 5 7 lbs 2D PDF | 3D File
5412 ESFRH121206 12 12 6 10 lbs 2D PDF | 3D File
5412 ESFRH121406 12 14 6 12 lbs 2D PDF | 3D File
5412 ESFRH161406 16 14 6 12 lbs 2D PDF | 3D File
No 3D model available.
