Type 4, 12 | Boîtier Simple Porte avec Fenêtre

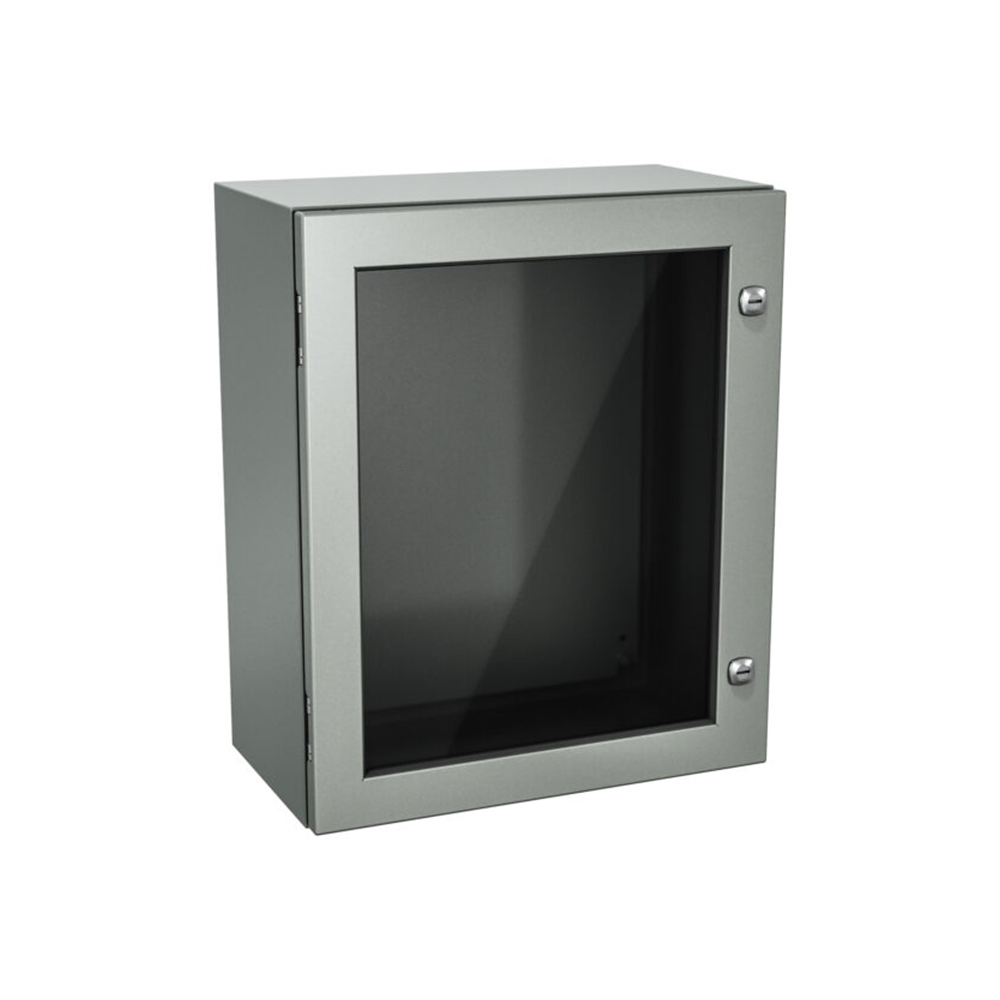

The 5412 ESW water, oil & dust tight enclosures are used indoors or outdoors in areas where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. The 5412 ESW are made of high quality 14 GA or 16 GA steel, with continuously welded corner seams. The window is made with self extinguishing polycarbonate. The opening has a curled lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the door is open. A high quality, robotically poured-in-place, seamless gasket ensures a complete and durable water tight seal. The pins of the concealed hinges can be pulled out to remove the door. A ¼ turn locking mechanism ensures positive closing. Internal mounting holes are provided. Each enclosure comes complete with a 12 GA galvanized inner panel, which is double bent* for maximum rigidity and mounts on M8 welded studs. Enclosures are finished with heat fused powder paint, electro-statically applied on a pretreated base. Box is ANSI/ASA 61 smooth gray.

Certifié CSA / Homologué UL NEMA/EEMAC 4-12 / IP66
