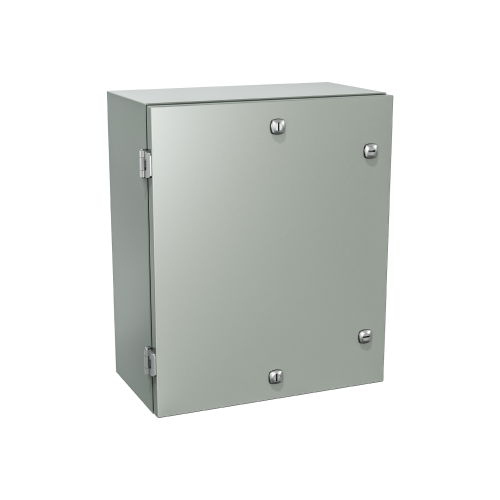

Type 4, 12 | Boîtier Simple Porte avec Double Joint

The 5412 ESDG double gasket, water, oil & dust tight enclosures are used outdoors or indoors in areas where the enclosures may be subject to hosing or water coming from any direction, or for protection against dust, dirt or oil splashing. The 5412 ESDG are made of high quality 14 GA or 16 GA steel, with continuously welded corner seams. The opening has a curled lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the cover has been opened. A double gasket system, consisting of an external gasket that acts as a front line barrier against liquids, works in conjunction with the internal, high quality robotically poured in place, seamless gasket to ensure a complete and durable water tight seal. Quarter turn locking mechanisms on all sides ensure positive closing. Internal mounting holes are provided. Each enclosure comes complete with a 12 GA galvanized inner panel, which is double bent* for maximum rigidity and mounts on M8 welded studs. Enclosures are finished with heat fused powder paint, electro-statically applied on a pretreated base. Box is ANSI/ASA 61 smooth gray.

Certifié CSA / Homologué UL NEMA/EEMAC 4-12 / IP66
