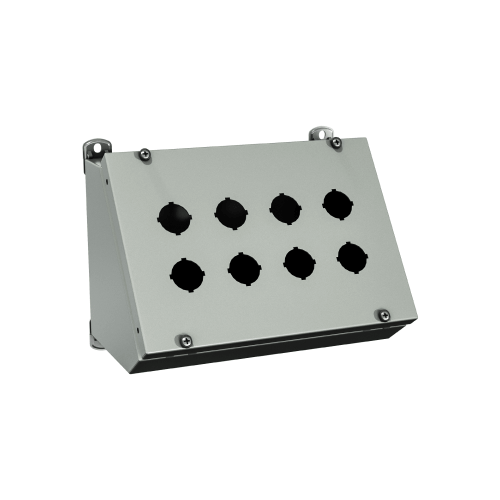

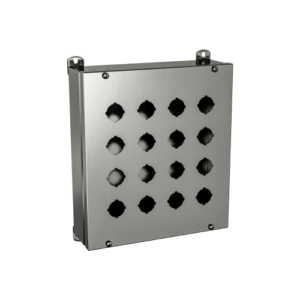

The 1412 SD – 1412 ED – 1412 EL -1412 MN – 1412 SF – oil and dust tight pushbutton enclosures are built to provide protection against dirt, dust and oil, for all brands of oil tight pushbuttons, switches and pilot lights. There are 6 types of enclosures, which are listed on the following pages. The 1412 series enclosures are made of high quality 16 GA steel, with all seams continuously welded. A high quality, seamless gasket, which is poured in place, ensures a complete and durable seal of the enclosure. Cover screws thread into sealed wells and are captive. The enclosure can be internally or externally mounted using the included die cast wall mounting feet. These feet have oblong holes to facilitate installation. Hole plugs (880 HP series) are available to seal unused holes. The 1412 SD, 1412 ED and 1412 SF are also available with blank covers. The 1412 EL enclosures come with a galvanized interior panel. Enclosures are finished with heat fused powder paint, electro-statically applied on a pretreated base. Boxes are ANSI/ASA 61 smooth gray. Inner panel is galvanized (other colors available).
CSA Certified / UL Listed NEMA/EEMAC 4-12 / IP66
| Catalog Number | Dimensions | Ship Weight | Downloads | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 1412 SF030304 | 4 | 3 | 5 | 2 lbs | 2D PDF | 3D File |
| 1412 SF030504 | 4 | 6 | 5 | 3 lbs | 2D PDF | 3D File |
| 1412 SF030704 | 4 | 8 | 5 | 5 lbs | 2D PDF | 3D File |
| 1412 SF031004 | 4 | 10 | 5 | 6 lbs | 2D PDF | 3D File |
| 1412 SF070606 | 7 | 6 | 7 | 6 lbs | 2D PDF | 3D File |
| 1412 SF070806 | 7 | 9 | 7 | 7 lbs | 2D PDF | 3D File |
| 1412 SF071006 | 7 | 11 | 7 | 9 lbs | 2D PDF | 3D File |
| 1412 SF071306 | 7 | 13 | 7 | 10 lbs | 2D PDF | 3D File |
| 1412 SF071506 | 7 | 15 | 7 | 11 lbs | 2D PDF | 3D File |
| 1412 SF071906 | 7 | 20 | 7 | 14 lbs | 2D PDF | 3D File |
| 1412 SF090807 | 10 | 9 | 8 | 10 lbs | 2D PDF | 3D File |
| 1412 SF110809 | 12 | 9 | 9 | 13 lbs | 2D PDF | 3D File |
| 1412 SF111009 | 12 | 11 | 9 | 14 lbs | 2D PDF | 3D File |
| 1412 SF111309 | 12 | 13 | 9 | 16 lbs | 2D PDF | 3D File |
| 1412 SF141310 | 14 | 13 | 10 | 17 lbs | 2D PDF | 3D File |
| 1412 SF141510 | 14 | 15 | 10 | 19 lbs | 2D PDF | 3D File |
| 1412 SF030304MN | 4 | 3 | 5 | 2 lbs | 2D PDF | 3D File |
| 1412 SF030504MN | 4 | 6 | 5 | 3 lbs | 2D PDF | 3D File |
| 1412 SF030704MN | 4 | 8 | 5 | 5 lbs | 2D PDF | 3D File |
| 1412 SF031004MN | 4 | 10 | 5 | 6 lbs | 2D PDF | 3D File |
| 1412 SF070606MN | 7 | 6 | 7 | 6 lbs | 2D PDF | 3D File |
| 1412 SF070806MN | 7 | 9 | 7 | 7 lbs | 2D PDF | 3D File |
| 1412 SF071006MN | 7 | 11 | 7 | 9 lbs | 2D PDF | 3D File |
| 1412 SF071306MN | 7 | 13 | 7 | 10 lbs | 2D PDF | 3D File |
| 1412 SF071506MN | 7 | 15 | 7 | 11 lbs | 2D PDF | 3D File |
| 1412 SF071906MN | 7 | 20 | 7 | 14 lbs | 2D PDF | 3D File |
| 1412 SF090807MN | 10 | 9 | 8 | 10 lbs | 2D PDF | 3D File |
| 1412 SF110809MN | 12 | 9 | 9 | 13 lbs | 2D PDF | 3D File |
| 1412 SF111009MN | 12 | 11 | 9 | 14 lbs | 2D PDF | 3D File |
| 1412 SF111309MN | 12 | 13 | 9 | 16 lbs | 2D PDF | 3D File |
| 1412 SF141310MN | 14 | 13 | 10 | 17 lbs | 2D PDF | 3D File |
| 1412 SF141510MN | 14 | 15 | 10 | 19 lbs | 2D PDF | 3D File |
| 1412 SFC030304 | 4 | 3 | 5 | 2 lbs | 2D PDF | 3D File |
| 1412 SFC030504 | 4 | 6 | 5 | 3 lbs | 2D PDF | 3D File |
| 1412 SFC030704 | 4 | 8 | 5 | 5 lbs | 2D PDF | 3D File |
| 1412 SFC031004 | 4 | 10 | 5 | 6 lbs | 2D PDF | 3D File |
| 1412 SFC070606 | 7 | 6 | 7 | 6 lbs | 2D PDF | 3D File |
| 1412 SFC070806 | 7 | 9 | 7 | 7 lbs | 2D PDF | 3D File |
| 1412 SFC071006 | 7 | 11 | 7 | 9 lbs | 2D PDF | 3D File |
| 1412 SFC071306 | 7 | 13 | 7 | 10 lbs | 2D PDF | 3D File |
| 1412 SFC071506 | 7 | 15 | 7 | 11 lbs | 2D PDF | 3D File |
| 1412 SFC071906 | 7 | 20 | 7 | 14 lbs | 2D PDF | 3D File |
| 1412 SFC090807 | 10 | 9 | 8 | 10 lbs | 2D PDF | 3D File |
| 1412 SFC110809 | 12 | 9 | 9 | 13 lbs | 2D PDF | 3D File |
| 1412 SFC111009 | 12 | 11 | 9 | 14 lbs | 2D PDF | 3D File |
| 1412 SFC111309 | 12 | 13 | 9 | 16 lbs | 2D PDF | 3D File |
| 1412 SFC141310 | 14 | 13 | 10 | 17 lbs | 2D PDF | 3D File |
| 1412 SFC141510 | 14 | 15 | 10 | 19 lbs | 2D PDF | 3D File |
