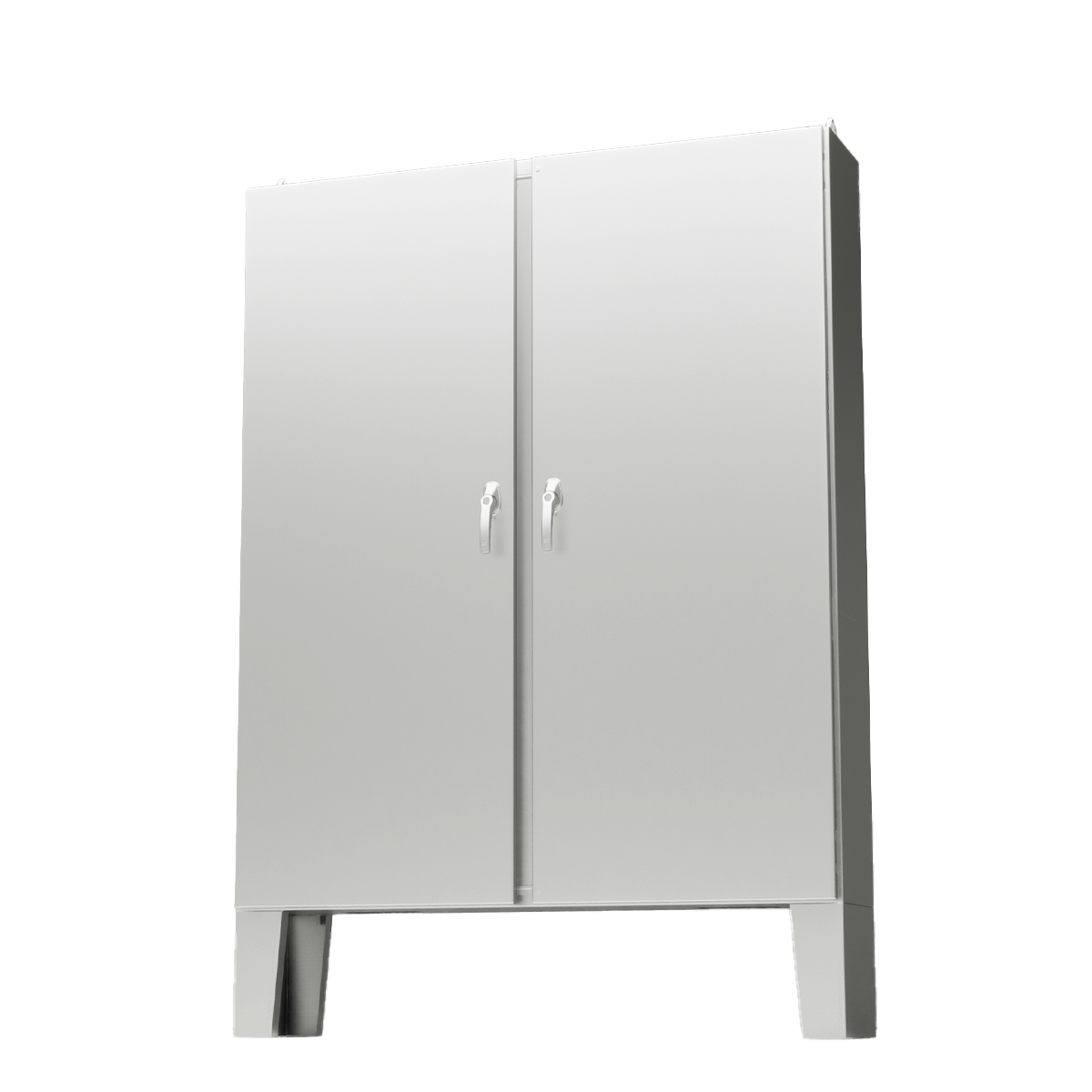

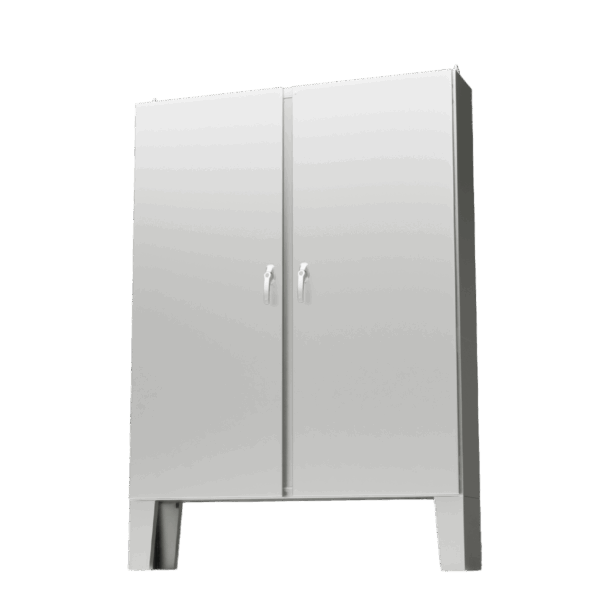

The 5412 DDH water, oil & dust tight double door enclosures are used indoors or outdoors, in areas where the enclosures may be subject to hosing or water coming from any direction, or where corrosion may be a problem. The 5412 DDH are made of high quality code gauge steel, with continuously welded corner seams. The center post is removable to facilitate the installation of the inner panel. The opening has a curled lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the door is open. A high quality, robotically poured in place, seamless gasket ensures a complete and durable water tight seal. The pins of the concealed heavy duty die cast hinges can be pulled out to remove the door. A two padlockable 3 point lock mechanism ensures positive closing. Two 12” floor stands are welded to the cabinet. Body stiffeners are provided on larger models. Each enclosure comes complete with a galvanized inner panel. A panel guide and support is provided to facilitate panel installation. A print pocket is provided. Enclosures are finished with heat fused powder paint, electro-statically applied on a pretreated base. Box is ANSI/ASA 61 smooth gray.
CSA Certified / UL Listed NEMA/EEMAC 4-12 / IP66
| Catalog Number | Dimensions | Ship Weight | Downloads | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 5412 DDH604812 | 60 | 48 | 12 | 463 lbs | 2D PDF | 3D File |
| 5412 DDH604818 | 60 | 48 | 18 | 463 lbs | 2D PDF | 3D File |
| 5412 DDH606012 | 60 | 60 | 12 | 530 lbs | 2D PDF | 3D File |
| 5412 DDH606018 | 60 | 60 | 18 | 610 lbs | 2D PDF | 3D File |
| 5412 DDH726012 | 72 | 60 | 12 | 633 lbs | 2D PDF | 3D File |
| 5412 DDH726018 | 72 | 60 | 18 | 864 lbs | 2D PDF | 3D File |
| 5412 DDH726024 | 72 | 60 | 24 | 881 lbs | 2D PDF | 3D File |
| 5412 DDH727212 | 72 | 72 | 12 | 751 lbs | 2D PDF | 3D File |
| 5412 DDH727218 | 72 | 72 | 18 | 1013 lbs | 2D PDF | 3D File |
| 5412 DDH727224 | 72 | 72 | 24 | 1030 lbs | 2D PDF | 3D File |
