Type 3R | Boîtier Porte Simple avec Pare-Goutte et Système de Ventilation

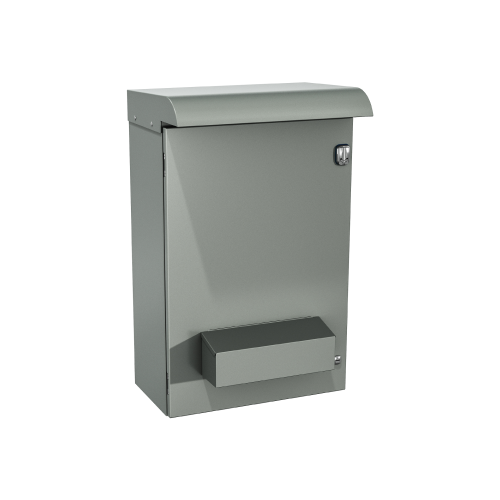

The 5300 EWB large single door weatherproof enclosures are used as junction boxes or control boxes in outdoor installations or indoors where dripping water is a problem. The 5300 EWB are made from quality 14 GA galvanized steel. The integrated drip shield limits the intrusion of water. The opening has a curled lip around all sides to prevent dripping water from entering the enclosure when the door is open, it also increases rigidity. A high quality robotically poured in place seamless gasket ensures a durable weathertight seal. The pins of the concealed hinges can be pulled out to remove the door. A ¼ turn locking mechanism ensures positive closing. Optional 12 GA galvanized inner panel which is double bent* for maximum rigidity and which mounts on M8 welded studs is available. Enclosures are finished with heat fused powder paint, electro-statically applied on a pretreated base. Box is RAL 9003 textured white.

NEMA 3R / IP32
