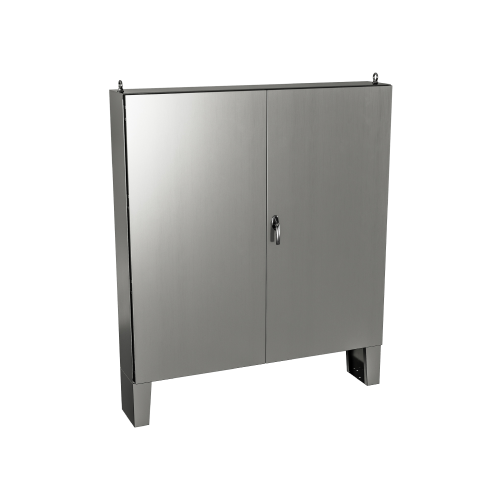

The 5500 SSDD floor mounted double door, oil and dust tight enclosures are used indoors for protection against dirt, dust and oil. The box and cover are made of high quality code gauge (type 304) stainless steel, with all seams continuously welded. The opening has a curled lip around all sides, and there is no center post. The left hand door is flanged and the 3-point stainless steel padlockable handle is on the right hand door. The captive pins of the concealed hinges can be easily pulled to remove the door. Floor mounting stands are optional (885 MF). Each enclosure comes complete with a galvanized inner panel, which mounts on welded M10 studs. The enclosures are unpainted and brushed smooth.
CSA Certified / UL Listed NEMA/EEMAC 12-13 / IP55
| Catalog Number | Dimensions | Ship Weight | Downloads | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 5500 SSDD604808 | 60 | 48 | 8 | 422 lbs | 2D PDF | 3D File |
| 5500 SSDD604810 | 60 | 48 | 10 | 433 lbs | 2D PDF | 3D File |
| 5500 SSDD604812 | 60 | 48 | 12 | 463 lbs | 2D PDF | 3D File |
| 5500 SSDD604816 | 60 | 48 | 16 | 523 lbs | 2D PDF | 3D File |
| 5500 SSDD604820 | 60 | 48 | 20 | 589 lbs | 2D PDF | 3D File |
| 5500 SSDD606010 | 60 | 60 | 10 | 520 lbs | 2D PDF | 3D File |
| 5500 SSDD606012 | 60 | 60 | 12 | 530 lbs | 2D PDF | 3D File |
| 5500 SSDD606016 | 60 | 60 | 16 | 650 lbs | 2D PDF | 3D File |
| 5500 SSDD726010 | 72 | 60 | 10 | 608 lbs | 2D PDF | 3D File |
| 5500 SSDD726012 | 72 | 60 | 12 | 633 lbs | 2D PDF | 3D File |
| 5500 SSDD726016 | 72 | 60 | 16 | 740 lbs | 2D PDF | 3D File |
| 5500 SSDD727210 | 72 | 72 | 10 | 716 lbs | 2D PDF | 3D File |
| 5500 SSDD727212 | 72 | 72 | 12 | 751 lbs | 2D PDF | 3D File |
| 5500 SSDD727216 | 72 | 72 | 16 | 841 lbs | 2D PDF | 3D File |
| 5500 SSDD604808P | 60 | 48 | 8 | 422 lbs | 2D PDF | 3D File |
| 5500 SSDD604810P | 60 | 48 | 10 | 433 lbs | 2D PDF | 3D File |
| 5500 SSDD604812P | 60 | 48 | 12 | 463 lbs | 2D PDF | 3D File |
| 5500 SSDD604816P | 60 | 48 | 16 | 523 lbs | 2D PDF | 3D File |
| 5500 SSDD604820P | 60 | 48 | 20 | 589 lbs | 2D PDF | 3D File |
| 5500 SSDD606010P | 60 | 60 | 10 | 520 lbs | 2D PDF | 3D File |
| 5500 SSDD606012P | 60 | 60 | 12 | 530 lbs | 2D PDF | 3D File |
| 5500 SSDD606016P | 60 | 60 | 16 | 650 lbs | 2D PDF | 3D File |
| 5500 SSDD726010P | 72 | 60 | 10 | 608 lbs | 2D PDF | 3D File |
| 5500 SSDD726012P | 72 | 60 | 12 | 633 lbs | 2D PDF | 3D File |
| 5500 SSDD726016P | 72 | 60 | 16 | 740 lbs | 2D PDF | 3D File |
| 5500 SSDD727210P | 72 | 72 | 10 | 716 lbs | 2D PDF | 3D File |
| 5500 SSDD727212P | 72 | 72 | 12 | 751 lbs | 2D PDF | 3D File |
| 5500 SSDD727216P | 72 | 72 | 16 | 841 lbs | 2D PDF | 3D File |
