Type 12, 13 | Console Monobloc Simple Porte avec Double Accès

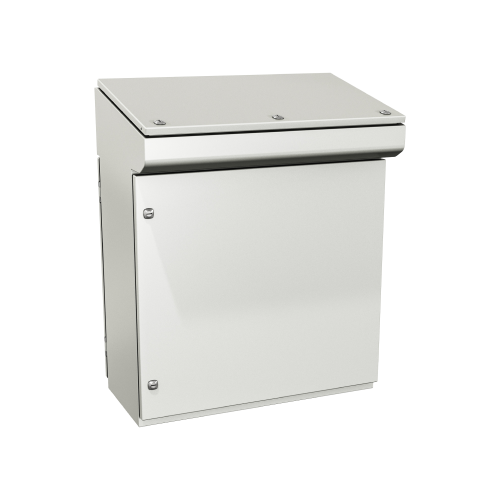

The 6500 CO series monobloc consoles are used to protect equipment against oil and dust. These cabinets are made of 14 GA steel. The opening has a curled lip around all sides to increase rigidity and ensures complete contact against the seamlessly poured, high quality gasket. Gas spring cylinders facilitate door operation. Dual access doors are provided. The captive pins of the concealed hinges can be pulled to remove the door. External mount locking mechanisms ensure positive closing. The 6500 CO comes complete with a 12 GA galvanized inner panel, which is double bent for maximum rigidity and mounts on M8 welded studs. The consoles are finished with heat fused powder paint, electrostatically applied on a pretreated base. Sections are RAL7035 textured light gray. Inner panel is galvanized (other colors available).

Certifié CSA / Homologué UL NEMA/EEMAC 12-13 / IP55
