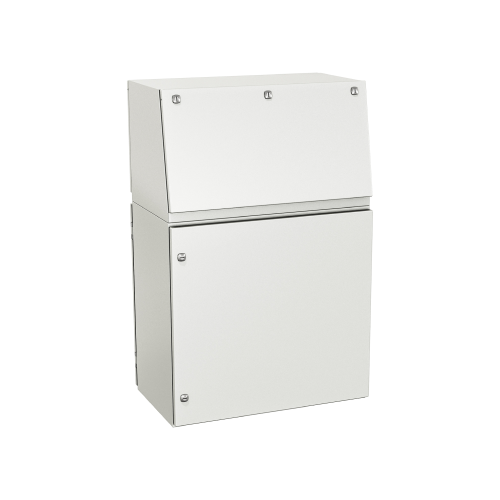

Type 12, 13 | Single door modular console with dual access, assembled with turret

Type 12, 13 | Console Modulaire Simple Porte avec Double Accès, Assemblée avec Tourelle

6500 MCT

IP 54NEMA 12, 13Acier Doux Peint RAL7035Porte SimpleDouble Accès

Dimension (pouces hauteur x largeur x profondeur)

The 6500 MCT is used for indoor use and to protect the equipment against ingress of oil, dust, dirt and water.

Made of high quality steel, with continuously welded corner seams.
The cover is secured by ¼ turn locks.
A robotically poured-in-place seamless gasket ensures a durable seal.
The enclosure has die cast hinges, with stainless steel captive pins.
The body’s construction is designed to prevent dripping water from entering the enclosure.
Paint color: RAL7035 textured light gray.
CSA Certified.
UL Listed.
NEMA 12, 13.
IEC 60529 IP55.

For more information, see 6500 MCO and 6500 MTU.

Catalog Number	Dimensions			Ship Weight	Downloads
	A	B	C
6500 MCT0605		24	20	142 lbs	2D PDF \| 3D File
6500 MCT0805		31	20	175 lbs	2D PDF \| 3D File
