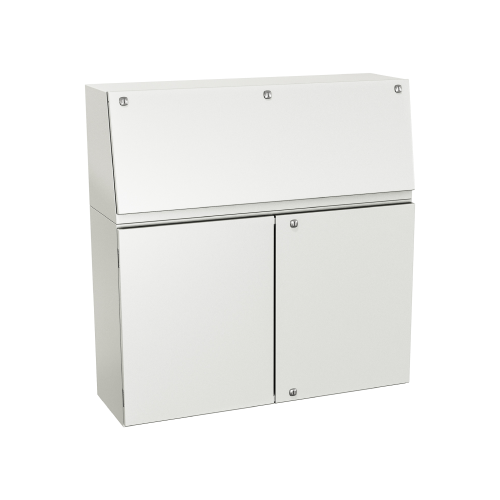

Type 12, 13 | Double door modular console with frontal access, assembled with turret

Consoles

6500 MCTDDFD

IP 54NEMA 12, 13Acier Doux Peint RAL7035Double Porte

Dimension (pouces hauteur x largeur x profondeur)

The 6500 MCTDDFD is used for indoor use and to protect the equipment against ingress of oil, dust, dirt and water.

Made of high quality steel, with continuously welded corner seams.
The cover is secured by ¼ turn locks.
A robotically poured-in-place seamless gasket ensures a durable seal.
The enclosure has die cast hinges, with stainless steel captive pins.
The body’s construction is designed to prevent dripping water from entering the enclosure.
Paint color: RAL7035 textured light gray.
CSA Certified.
UL Listed.
NEMA 12, 13.
IEC 60529 IP55.

For more information, see MCODDFD and 6500 MTUFD.

Catalog Number	Dimensions			Ship Weight	Downloads
	A	B	C
6500 MCTDDFD1004		1,000	400	178 lbs	2D PDF \| 3D File
6500 MCTDDFD1204		1,200	400	231 lbs	2D PDF \| 3D File
6500 MCTDDFD1604		1,600	400	296 lbs	2D PDF \| 3D File

No 3D model available.
