Indice NEMA RoHS CSA Underwriter Laboratories Marquage « CE »

Type 12, 13 | Boîtier Métrique Double Portes

6500 ESDD
IP 54NEMA 12, 13Acier Doux Peint RAL7035Panneau intérieurDouble Porte
BoxCad Personnalisez-le ici

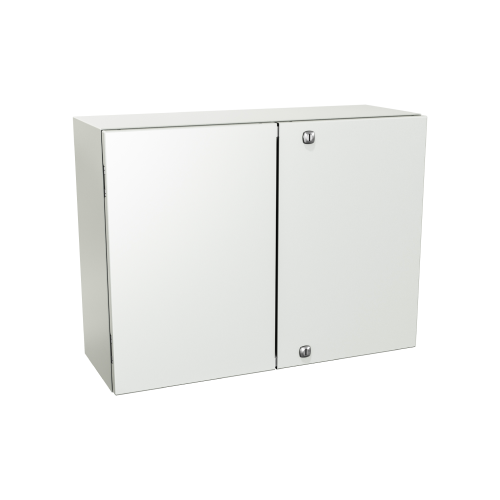

The 6500 ESDD oil and dust tight enclosures have a wall mounted double door, and are to be used indoors for protection against dirt, dust and oil. Made of high quality steel with continuously welded corner seams. Opening has a flat lip around all sides to increase rigidity and prevent dripping water from entering the enclosure when the cover is opened. There is no center post. Left hand door is flanged and the 3-point locking handle is on the right hand door. Seamless gasket ensures a complete and durable dust tight seal. The enclosure has die cast hinges, with stainless steel captive pins. Internal mounting holes are provided. Enclosures comes complete with a galvanized inner panel. Enclosures are finished with heat fused powder paint, electro-statically applied on a pretreated base.

Certifié CSA / Homologué UL NEMA/EEMAC 12-13 / IP55

  • The box and cover are made of high quality 14 GA steel with all seams continuously welded.
  • The opening has a curled lip around all sides and there is no center post.
  • The left hand door is flanged, and the quarter turn locks are located on the right hand door.
  • Larger enclosures have a three point handle on the right hand door.
  • Les goupilles prisonnières des charnières invisibles peuvent être facilement retirées pour enlever la porte.
  • Des pieds de fixation murale sont disponibles en option.
  • Each enclosure comes complete with a 12 GA galvanized inner panel, which mounts on welded M8 studs.
  • Les coffrets sont finis avec une peinture en poudre thermodurcie, appliquée par électrostatic sur une base prétraitée.
  • The cabinet is RAL7035 textured light gray, the inner panel is unpainted galvanized steel.
Référence Dimensions Poids du navire Téléchargements
A B C
6500 ESDD080630 31 24 12 32,2 kilos PDF 2D | Fichier 3D
6500 ESDD080630TH 31 24 12 32,2 kilos PDF 2D | Fichier 3D
6500 ESDD100820 40 31 8 112 lbs PDF 2D | Fichier 3D
6500 ESDD100820TH 40 31 8 112 lbs PDF 2D | Fichier 3D
6500 ESDD100830 40 31 12 58,06 kg PDF 2D | Fichier 3D
6500 ESDD100830TH 40 31 12 58,06 kg PDF 2D | Fichier 3D
6500 ESDD101030 40 40 12 68.95 kg PDF 2D | Fichier 3D
6500 ESDD101030TH 40 40 12 68.95 kg PDF 2D | Fichier 3D
6500 ESDD101230 40 47 12 79,83 kg PDF 2D | Fichier 3D
6500 ESDD101230TH 40 47 12 79,83 kg PDF 2D | Fichier 3D
