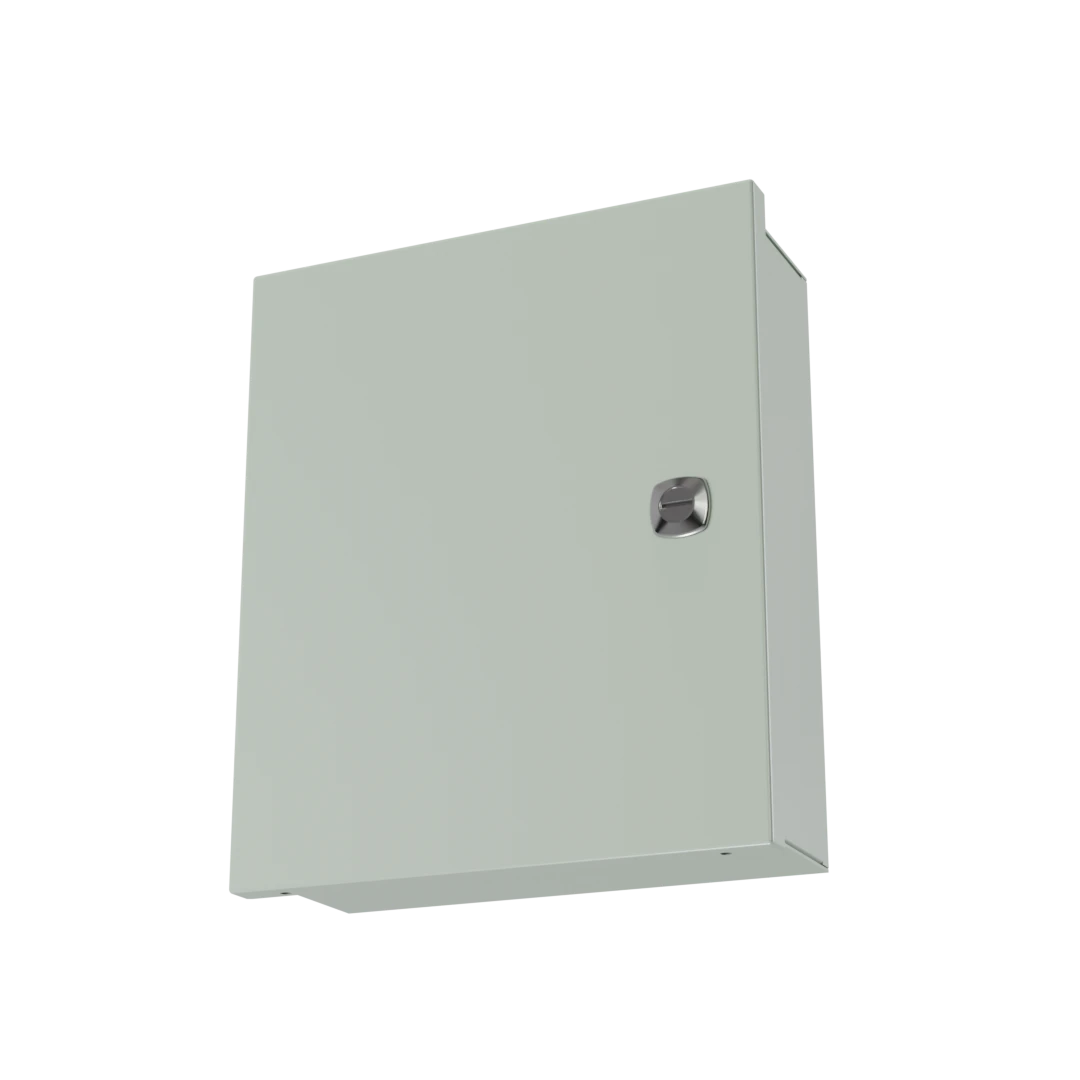

Type 1 | Boîtier Utilitaire à Porte Simple

The 1100 are used where the control installation does not require a high degree of protection (such as watertight or dust tight), but where a quality enclosure is needed. Boxes and covers are made of high quality code gauge steel. The enclosures feature die cast hinges, which are bound to the cover by an exclusive concealed hinge pin system. The cover can be removed by unfastening the anti-vibration lock nuts. Enclosures are closed with a ¼ turn lock that ensures tight positive closing against cushions. Four internal mounting holes are provided. Optional external mounting is available (885 ESCHMF). Each enclosure comes complete with a 14 GA galvanized inner panel, which mounts on welded nuts. Enclosures are finished with heat fused powder paint, electro-statically applied on a pretreated base. The box is ANSI/ASA 61 smooth gray. Inner panel is galvanized (other colors available).

Certifié CSA / Répertorié UL NEMA/EEMAC 1 / IP30
