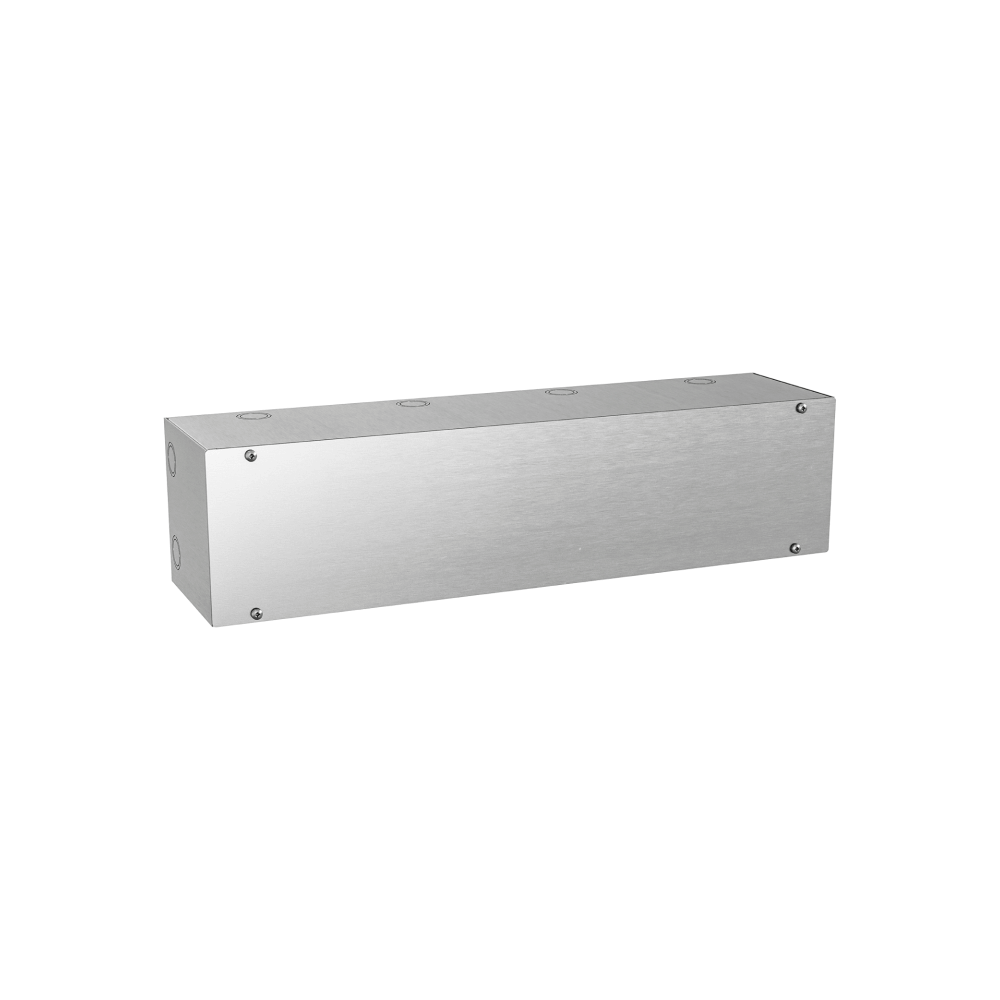

The 1100 DAL are used as junction or pull boxes and are suitable for surface mounting with a screw cover. Boxes and covers are made of high quality 12 GA aluminium. Four internal mounting holes, bonding screw and attachments are provided. Two sides have concentric knockouts (½” – ¾” knockouts are standard). Boxes and covers have a natural aluminum finish.
Certifié CSA NEMA/EEMAC 1 / IP30
| Référence | Dimensions | Poids du navire | Téléchargements | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 1100 DAL060603 | 6 | 6 | 3 | 1 livre | PDF 2D | Fichier 3D |
| 1100 DAL060604 | 6 | 6 | 4 | 1 livre | PDF 2D | Fichier 3D |
| 1100 DAL060606 | 6 | 6 | 6 | 1 livre | PDF 2D | Fichier 3D |
| 1100 DAL080804 | 8 | 8 | 4 | 2 livres | PDF 2D | Fichier 3D |
| 1100 DAL080806 | 8 | 8 | 6 | 2 livres | PDF 2D | Fichier 3D |
| 1100 DAL101004 | 10 | 10 | 4 | 2 livres | PDF 2D | Fichier 3D |
| 1100 DAL101006 | 10 | 10 | 6 | 2 livres | PDF 2D | Fichier 3D |
| 1100 DAL120606 | 12 | 6 | 6 | 2 livres | PDF 2D | Fichier 3D |
| 1100 DAL121204 | 12 | 12 | 4 | 3 livres | PDF 2D | Fichier 3D |
| 1100 DAL121206 | 12 | 12 | 6 | 3 livres | PDF 2D | Fichier 3D |
| 1100 DAL060603N | 6 | 6 | 3 | 1 livre | PDF 2D | Fichier 3D |
| 1100 DAL060604N | 6 | 6 | 4 | 1 livre | PDF 2D | Fichier 3D |
| 1100 DAL060606N | 6 | 6 | 6 | 1 livre | PDF 2D | Fichier 3D |
| 1100 DAL080804N | 8 | 8 | 4 | 2 livres | PDF 2D | Fichier 3D |
| 1100 DAL080806N | 8 | 8 | 6 | 2 livres | PDF 2D | Fichier 3D |
| 1100 DAL101004N | 10 | 10 | 4 | 2 livres | PDF 2D | Fichier 3D |
| 1100 DAL101006N | 10 | 10 | 6 | 2 livres | PDF 2D | Fichier 3D |
| 1100 DAL120606N | 12 | 6 | 6 | 2 livres | PDF 2D | Fichier 3D |
| 1100 DAL121204N | 12 | 12 | 4 | 3 livres | PDF 2D | Fichier 3D |
| 1100 DAL121206N | 12 | 12 | 6 | 3 livres | PDF 2D | Fichier 3D |
