Petit Thermostat

TH011

Thermostat

Intervalle de réglage

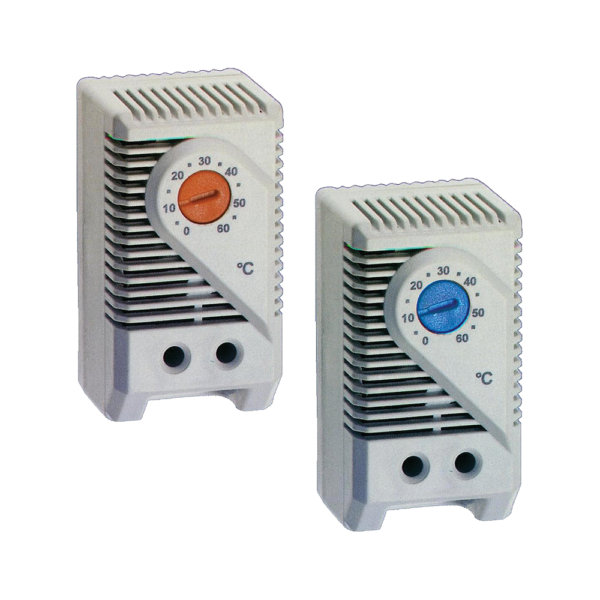

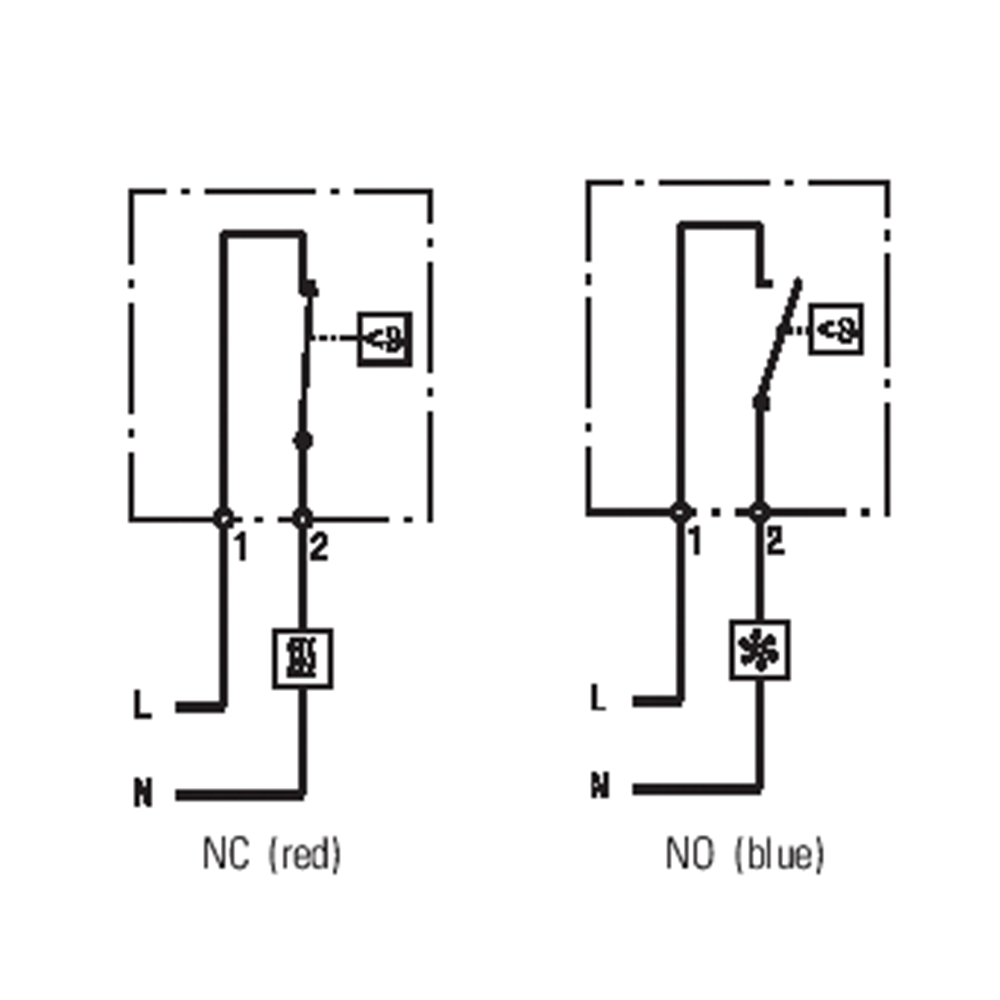

Thermostat NC (normally closed)

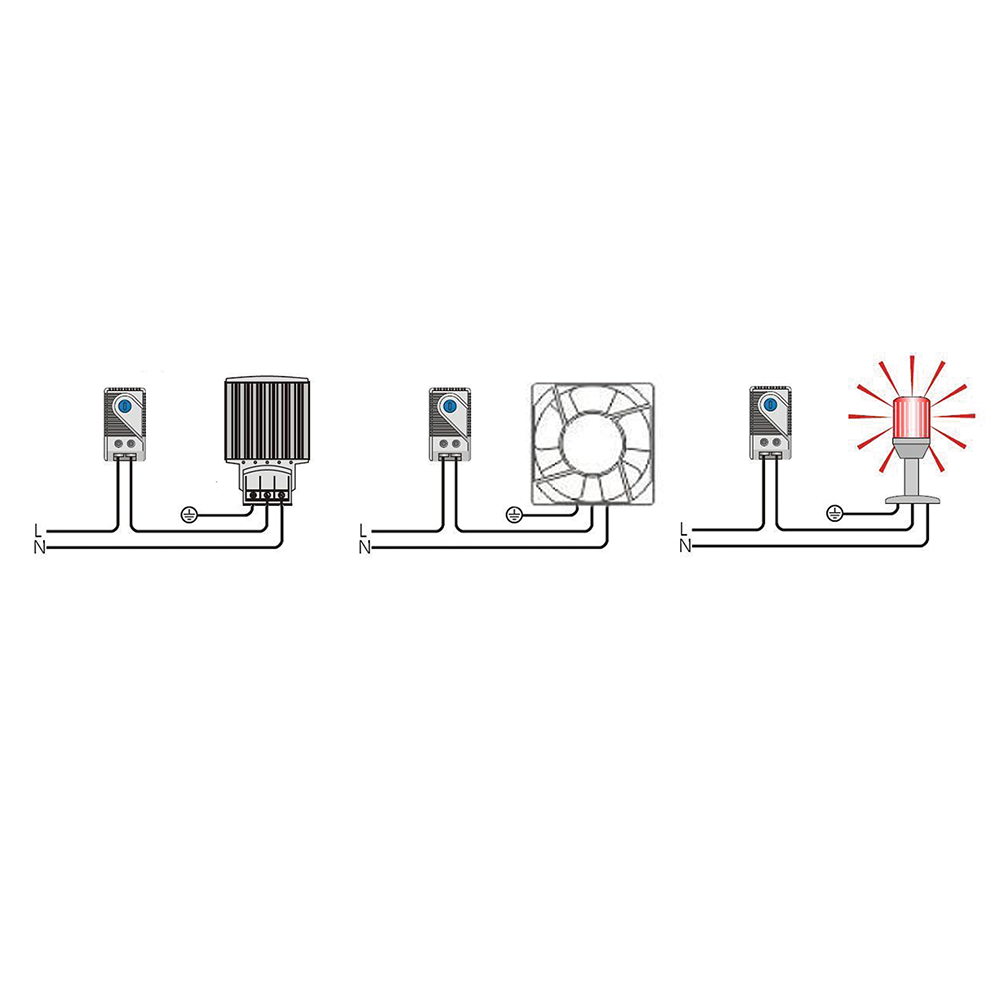

Thermostat opens on temperature rise – for regulating heaters or for switching signal devices. Comes with red temperature dial.

Thermostat NO (normally open)
Thermostat closes on temperature rise – for regulating filter fans and heat exchangers or for switching signal devices. Comes with blue temperature dial.

Switching difference 12.6°F ± 7°F tolerance (7K ± 4K)
Élément de capteur thermostatique bimétallique
Type de contact: contact à action rapide
Résistance à la contact 100 000 cycles
Max. switching capacity 15A resistive / 2A inductive @ 120VAC, 10A resistive / 2A inductive @ 250VAC, DC 30W
Max. courant d'entrée AC 16A pendant 10 secondes.
Minimum load 20mA (all voltages)
Connection 2-pole terminal, clamping torque 0.5Nm max. Solid wire – AWG 14 max. (2.5mm²) stranded wire (with wire end ferrule) – AWG 16 (1.5mm²)
Plastique pour l’habitat, UL 94V-0, gris clair
Mounting clip for 35mm DIN rail, EN 60715 (or for Exhaust Filter EF 118 Series)
Position de montage verticale
Operating / Storage temperature -49 to +176°F (-45 to +80°C)

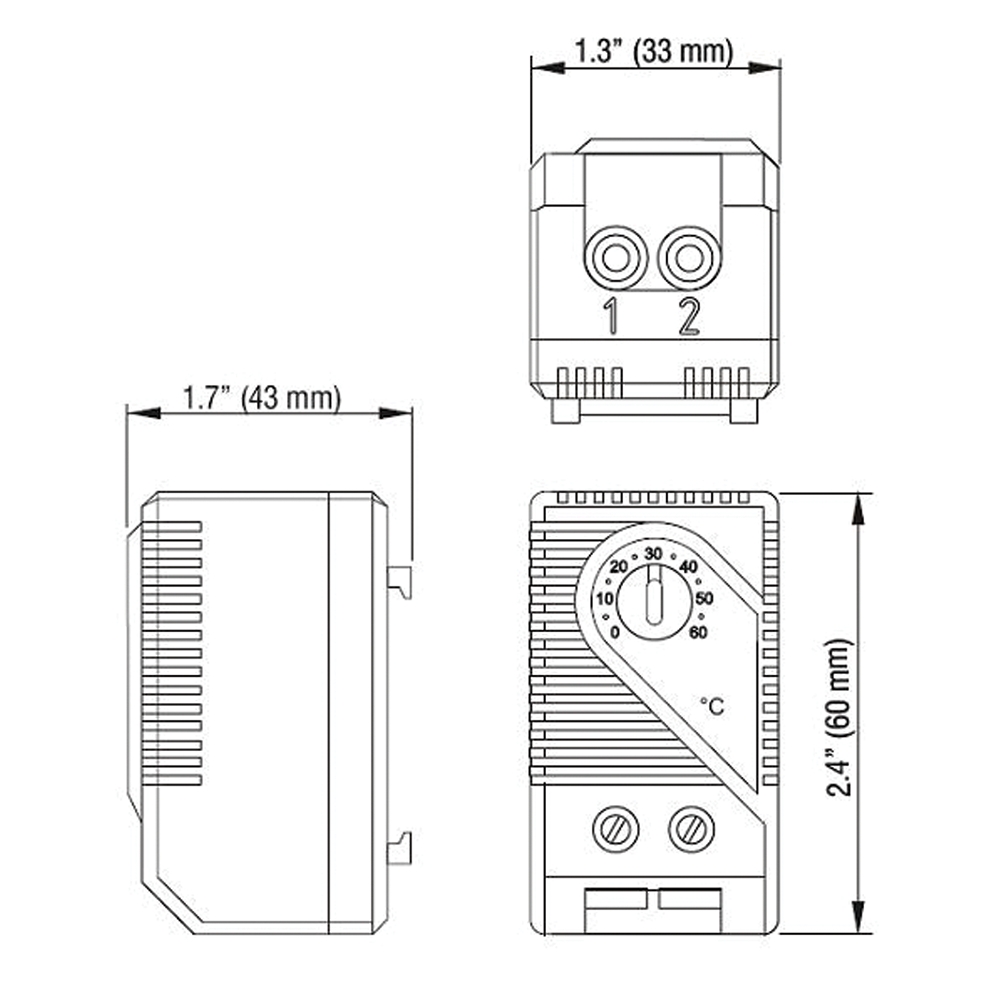

Dimensions 2.4 x 1.3 x 1.7” (60 x 33 x 43mm)
Weight approx. 1.4 oz. (40g)
Type de protection IP20
