Boîtier de Prise

03500.0-xx
Ajoutées à la liste

Voir votre produit préféré sur la liste enregistrée

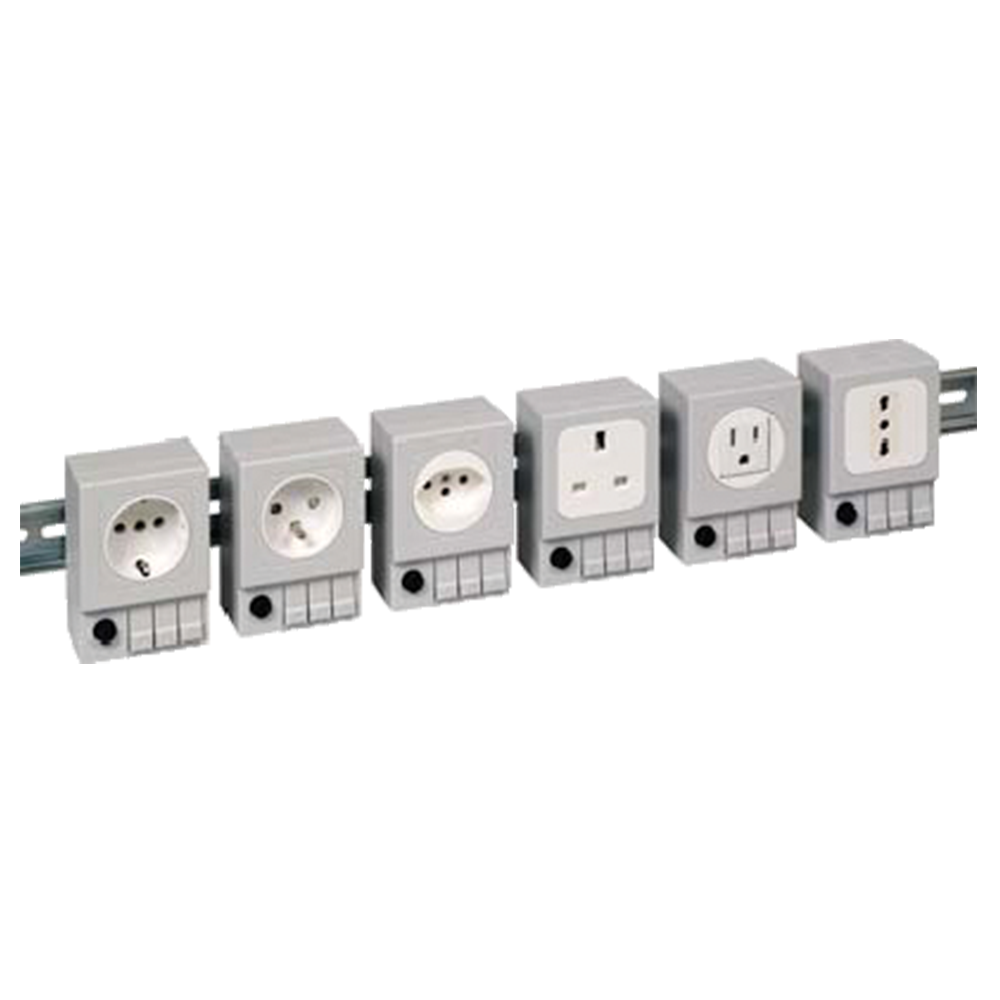

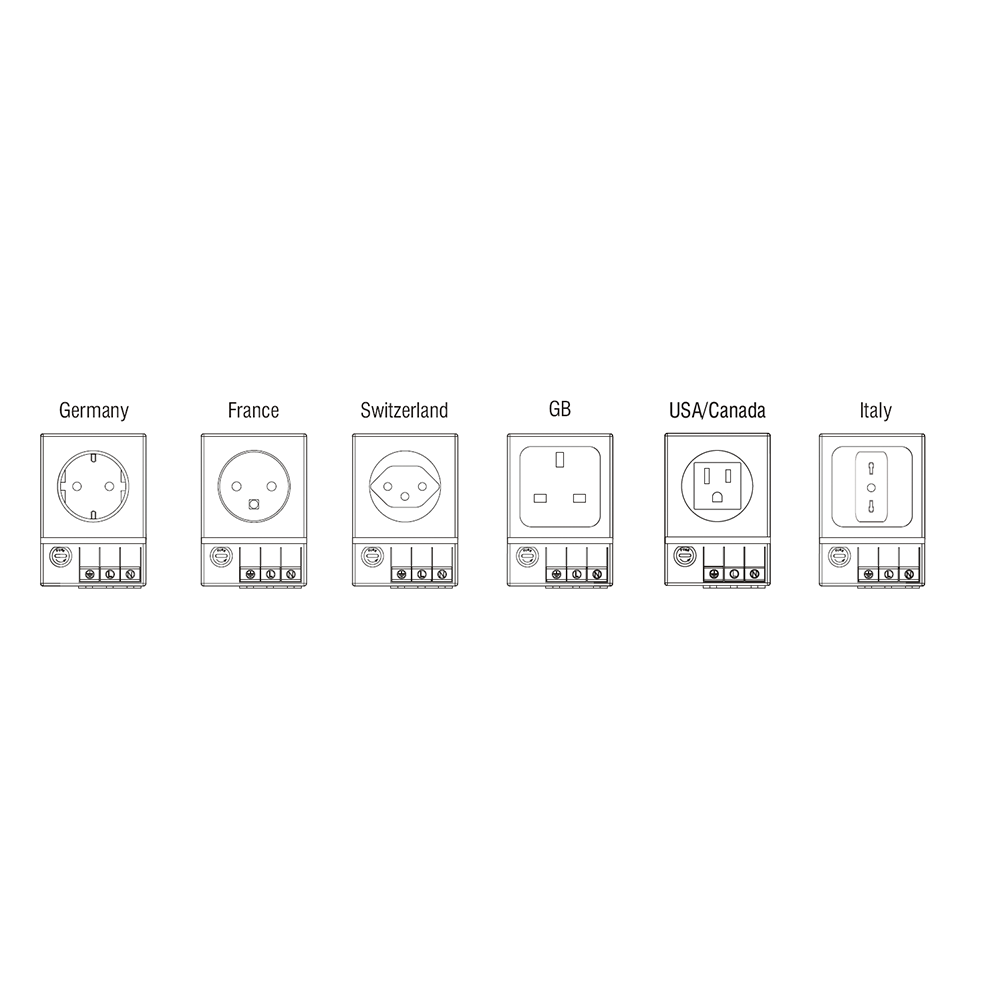

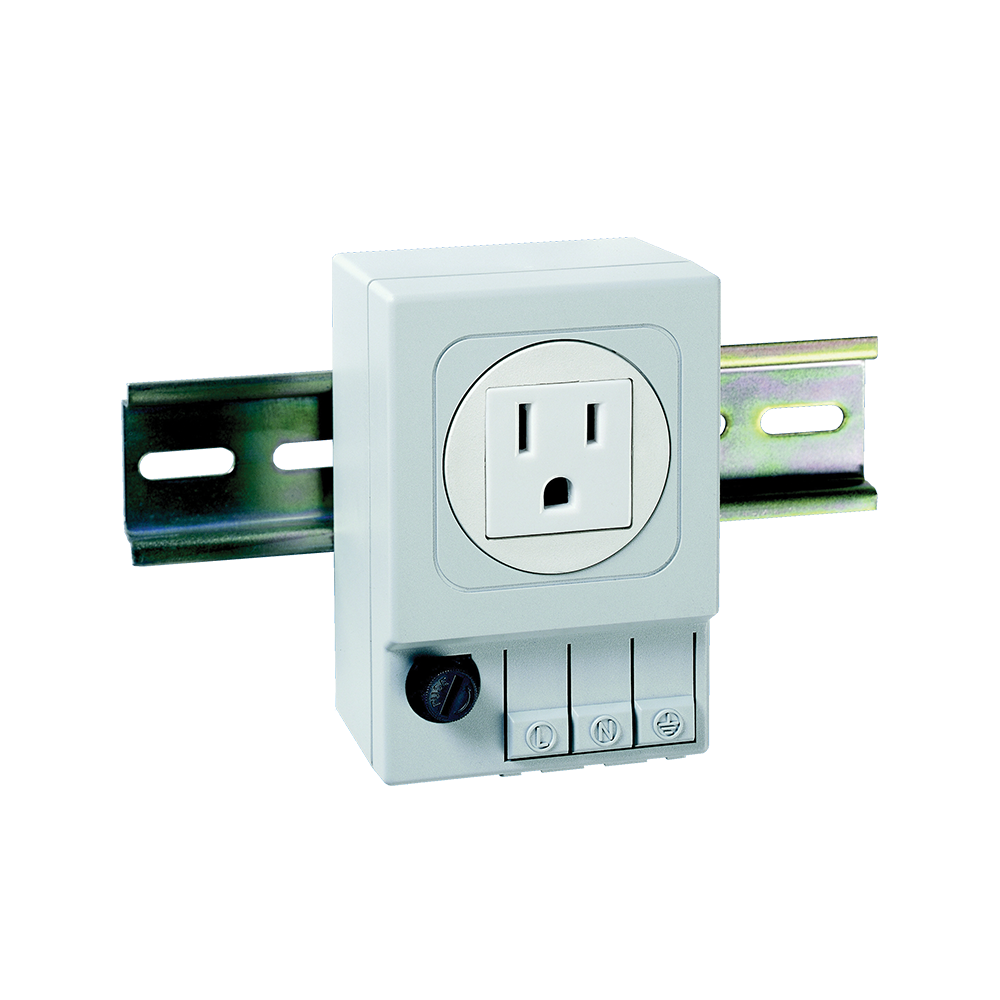

The DIN rail mounted electrical receptacle can be quickly fitted and connected in enclosures, allowing the use of auxiliary products such as hand lamps and power tools. The unit is available with or without fuse, and in many world outlet standards.

  • Connection 3 cage clamps for solid and stranded wire AWG 20-14 – (0.5-2.5mmÇ)
  • Housing plastic, UL94 V-0, light grey
  • Mounting clip for 35mm DIN rail, EN 60 715
  • Mounting position vertical
  • Operating / Storage temperature -49 to +158°F (-45 to 70°C)

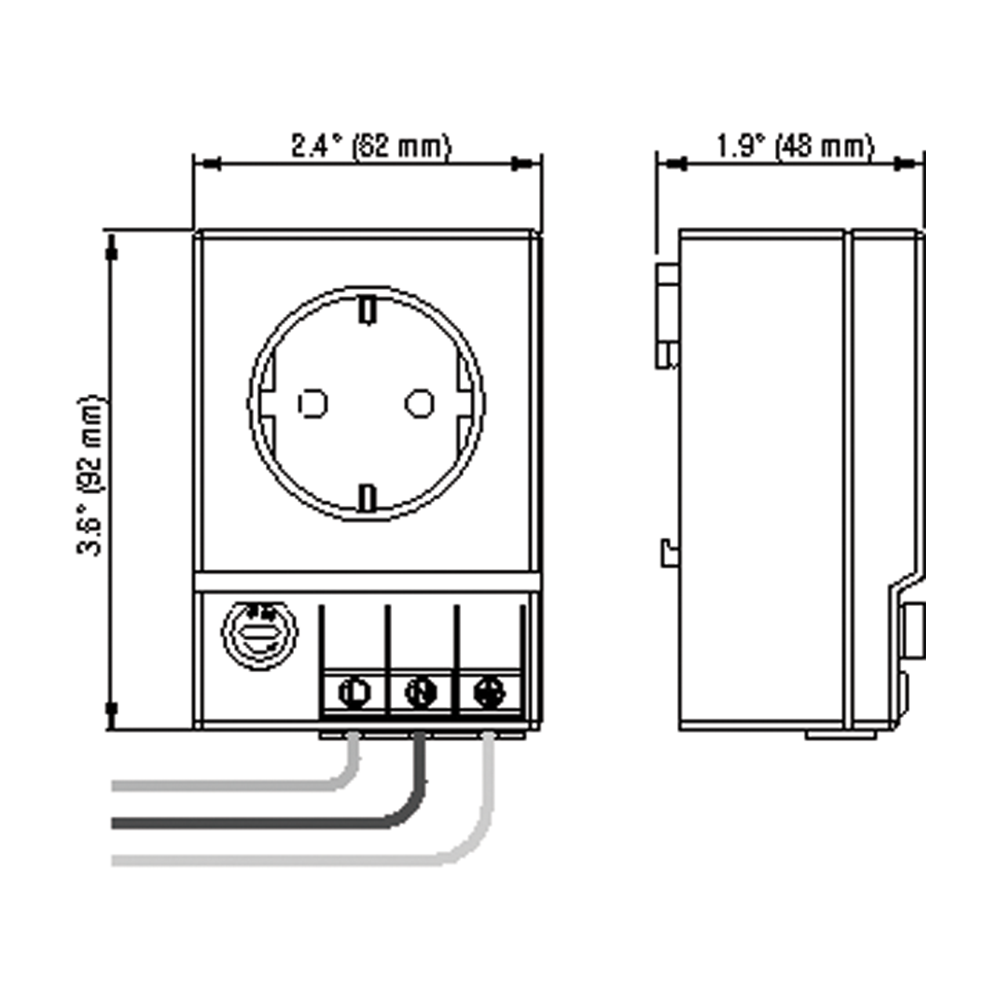

  • Dimensions 3.6 x 2.4 x 1.9” (92 x 62 x 48mm)
  • Weight approx. 7.1 oz. (200g)
  • Protection class I (grounded)
  • Protection type IP20
